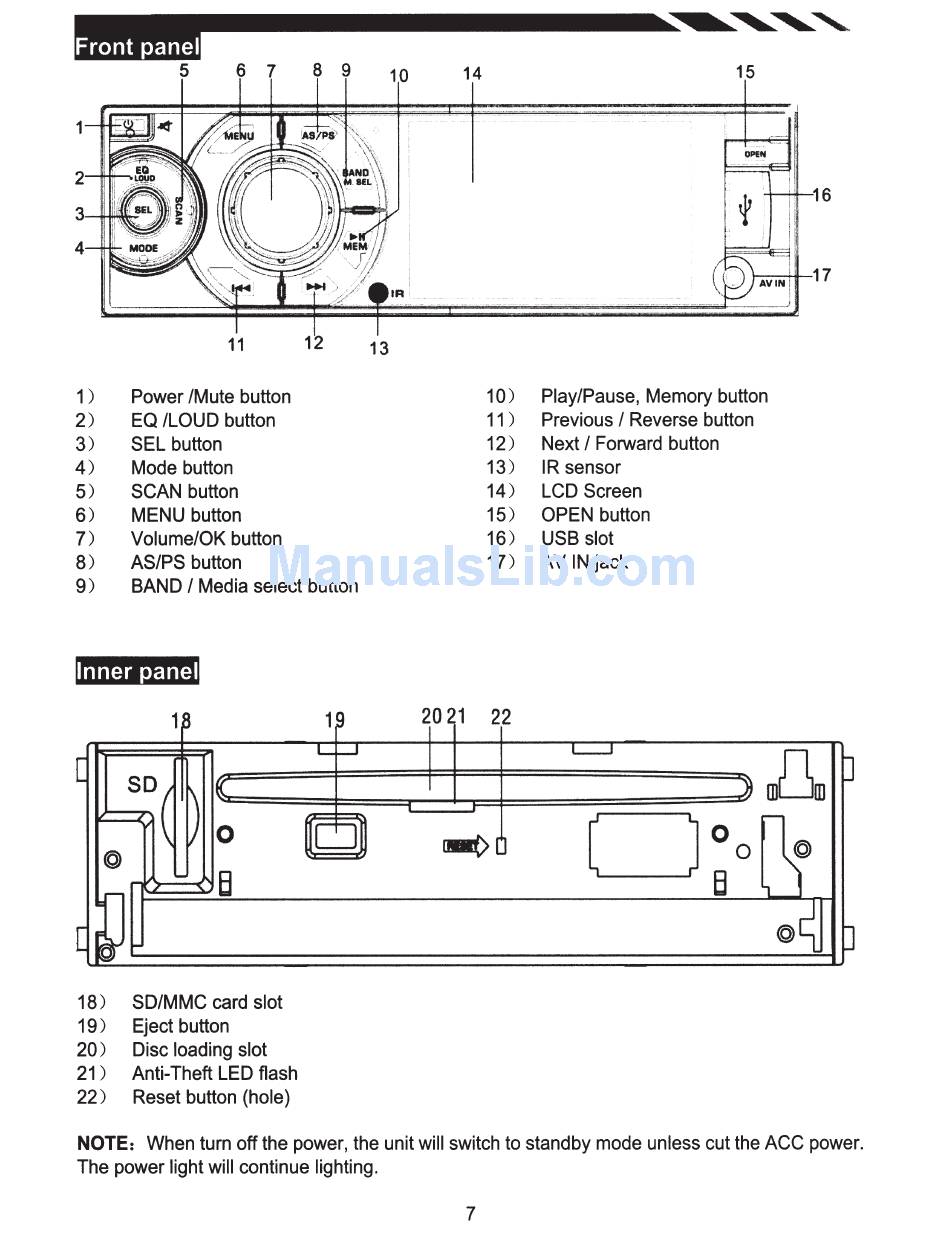

Front Panel; Inner Panel - Soundstream VR-345 Owner's Manual

-
5 6 7 8 9
14
15
OPEN
11
12
13
1)
Power /Mute button
10)
Play/Pause, Memory button
2)
EQ /LOUD button
11)
Previous I Reverse button
3)
SEL button
12)
Next I Forward button
4)
Mode button
13)
IR sensor
5)
SCAN button
14)
LCD Screen
6)
MENU button
15)
OPEN button
7) Volume/OK button
16)
USB slot
8) AS/PS button
17)
AV IN jack
9) BAND I Media select button
Inner panel
20 21 22
18) SD/MMC card slot
19) Eject button
20)
Disc loading slot
21)
Anti-Theft LED flash
22)
Reset button (hole)
NOTE: When turn off the power, the unit will switch to standby mode unless cut the ACC power.
