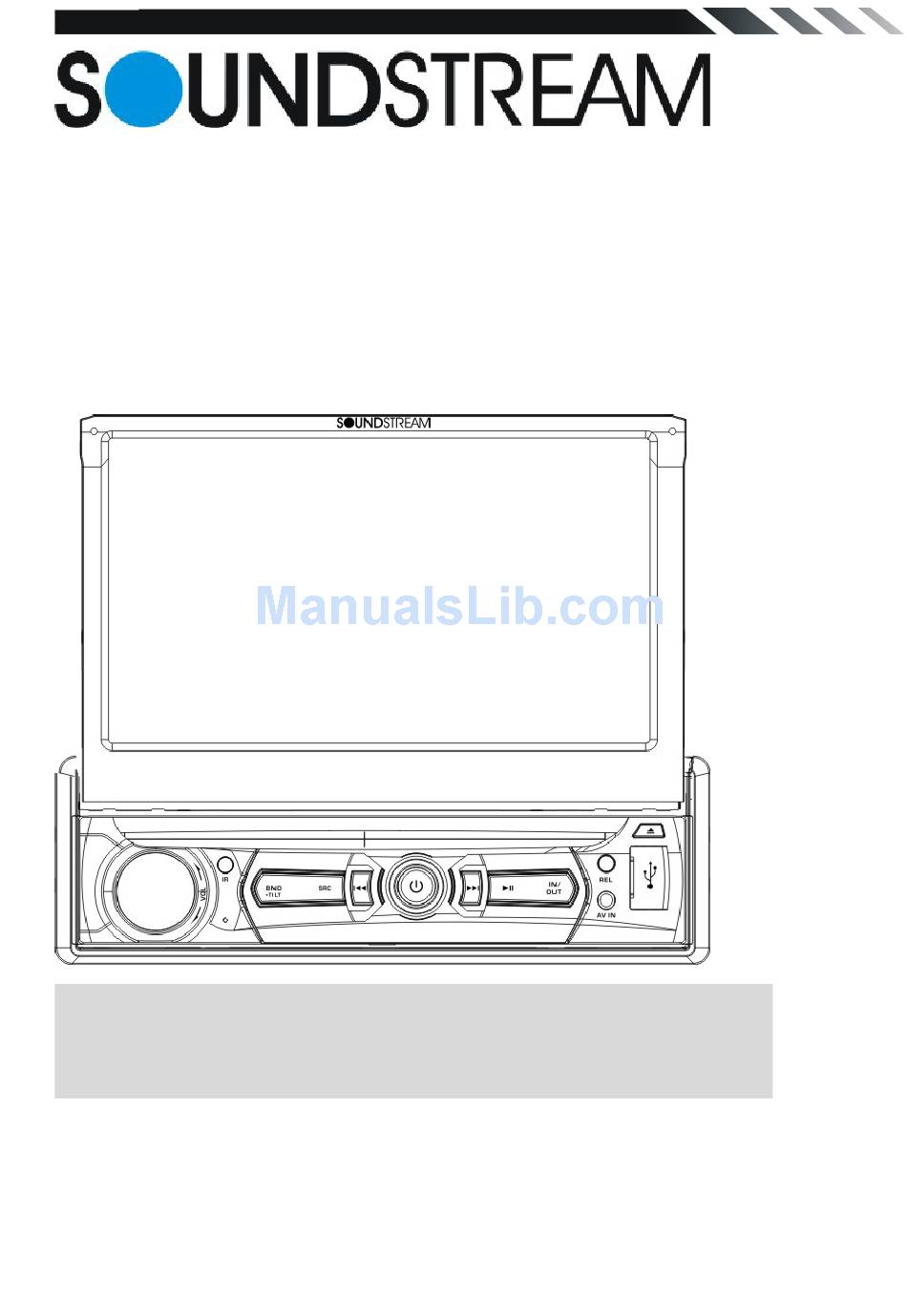

Page 1 VR-701/VR-701T In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio Built-in TV tuner (only for VR-701T) Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.
Page 2: Warning
WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.
Page 3: Table Of Contents
CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 CONTENTS ........................ 3 ACCESSORIES ......................4 INSTALLATION / UN-INSTALLATION ............... 5 WIRING CONNECTIONS ................... 6 PANEL ........................8 REMOTE CONTROL ....................10 REMOVE BATTERY ....................12 ...
Page 4: Accessories
ACCESSORIES Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw (5) Mounting Collar (6) Release Key (7) Screw (8) Rubber Cushion User Manual Remote Control Warranty card Trim ring...
Page 5: Installation / Un-Installation
INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.
Page 6: Wiring Connections
WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. When the steering wheel control cable connected to the steering wheel, we can use the steering wheel to control the unit.
Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).
Page 8: Panel
PANEL 1. VOL Knob/SEL/MUTE VOL Knob: Adjust the volume level by turning the knob clockwise to increase or counterclockwise to decrease. SEL : Long press it to enter SOUND SETTING menu to adjust the sound settings; EQ => BASS => TREBLE = > BALANCE => FADER => EQ. Adjust the level by click touch screen to increase or decrease.
Page 9 Press and hold for 2 second to adjust the Monitor tilt angle: TILT ANGLE 1 => TILT ANGLE 2 => TILT ANGLE 3 => TILT ANGLE 4. 5. SRC Button Press to select the mode: Radio, Smart control, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), and AV IN.
Page 10: Remote Control
REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM 4: ENTER 5: UP/DOWN/LEFT/RIGHT 6: EJECT 7: STEREO/MONO 8: P.SCN/RPT 9: BACKWARD/SEEK- FAST BACKWARD 10: LOUD 11: OSD 12: PBC/STOP 13: DIGIT NUMBERS 14: PLAY/PAUSE 15: MUTE 16: MENU 17: SUBTITLE 18: SETUP 19: ANGLE 20: INT 21: VOLUME PLUS...
Page 11 In DVD mode, Press button to skip to the previous track. Press and hold button for two seconds to activate fast reverse (REW) search in a track. In RADIO mode, press button to start searching automatic, press and hold for two seconds to start manual searching button Frequency down.
Page 12: Remove Battery
In VCD mode, press it to select the sound track in the sequence of MONO L =>MONO R =>STEREO. Go to: in DVD mode，press and hold for 2 seconds to show TIME SEARCH menu, select number and confirm to go to certain position directly. When press button to enter TITLE/CHAPTER selection mode, select number and confirm to go to certain TITLE or CHAPTER position directly.
Page 13: Main Menu
This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons. Tap the icons to enter a desired mode. VR-701 VR-701T ◆ RADIO PLAYER To start Radio, tap RADIO button on main menu screen.
Page 14: Dvd Player
◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons. Insert DVD disc Insert VCD disc NOTE...
Page 15: Disc/Usb Interface
◆DISC/USB INTERFACE When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Stop button. Press it to stop playback from the current track, press it again to final stop to the very beginning Play/pause button.
Page 16: Sound Control
SOUND CONTROL Tap SOUND button to show SOUND 1 menu. Select EQ mode BAS LEVEL Bass up/down TRE LEVEL Treble up/down BALANCE Left/Right Balance Control FADER Front/Back Fader Control button to show SOUND 2 menu. BEEP Set keypad sound on /off LOUDNESS Set loud on /off LOUD LEVEL...
Page 17: Display Control
DISPLAY CONTROL Tap DISPLAY button to show DISPLAY menu. SCREEN Screen setting 16:9, 4:3,FULL BACKLIGHT Backlight setting LOW, MID, HIGH GENERAL CONTROL Tap GENERAL button to show GENERAL menu. TILT Adjust monitor tilt angle ANGLE CLOCK Set clock display time on or off. CLOCK Set 24hour format or 12hour HOUR...
Page 18: Dvd Set Up Menu
DVD SET UP MENU Tap the DVD button in main menu to enter the DVD player. Press the SETUP button to enter into the system settings main menu; press the up or down arrow buttons to move to the highlighted menu item and select one of the Setup Pages: [1].
Page 19: System Information
[7] TV SHAPE: Set TFT screen mode to the correct ratio: Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letter Box) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used. [8] NTSC/ PAL: Select this menu item to set up your preferred video output format.
Page 20: Tv Section (Only For Vr-701T)
TV SECTION (ONLY FOR VR-701T) To enter TV mode, you can tap TV icon on main menu screen or press mode on front panel or remote. 1. Connect TV antenna to the TV ANT wire in rear unit, and then press MODE button on front panel or remote to select TV mode or Tap TV icon on main menu screen to enter TV mode.
Page 21: Smart Control
Audio Select this menu item is to set the TV sound system: When system setting PAL, press ENTER on remote or tap the screen button to select TV sound system: D/K=>M/N=> B/G=> I. When system setting SECAM, TV sound system B/G=>I=>D/K. When system setting NTSC ,press button to automatic skip TV channel term.
Page 22: Other Functions
General Operation Phone Calls When receiving a phone call, press the play/pause icon ( ) to answer the call. Press to reject or end the phone call. MP3 Playback Press and hold icon to activate MP3 playback mode, the most recently played song will begin.
Page 23: Notes On Disc
NOTES ON DISC Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body.
Page 24: Troubleshooting
TROUBLE SHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1.
Page 25: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER DISC CANNOT BE INSIDE THE PLAYER THEN PUT A NEW UPWARD.
Page 26: Technical Specifications
TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
