First complete the electrical connections, and then check them for correctness.

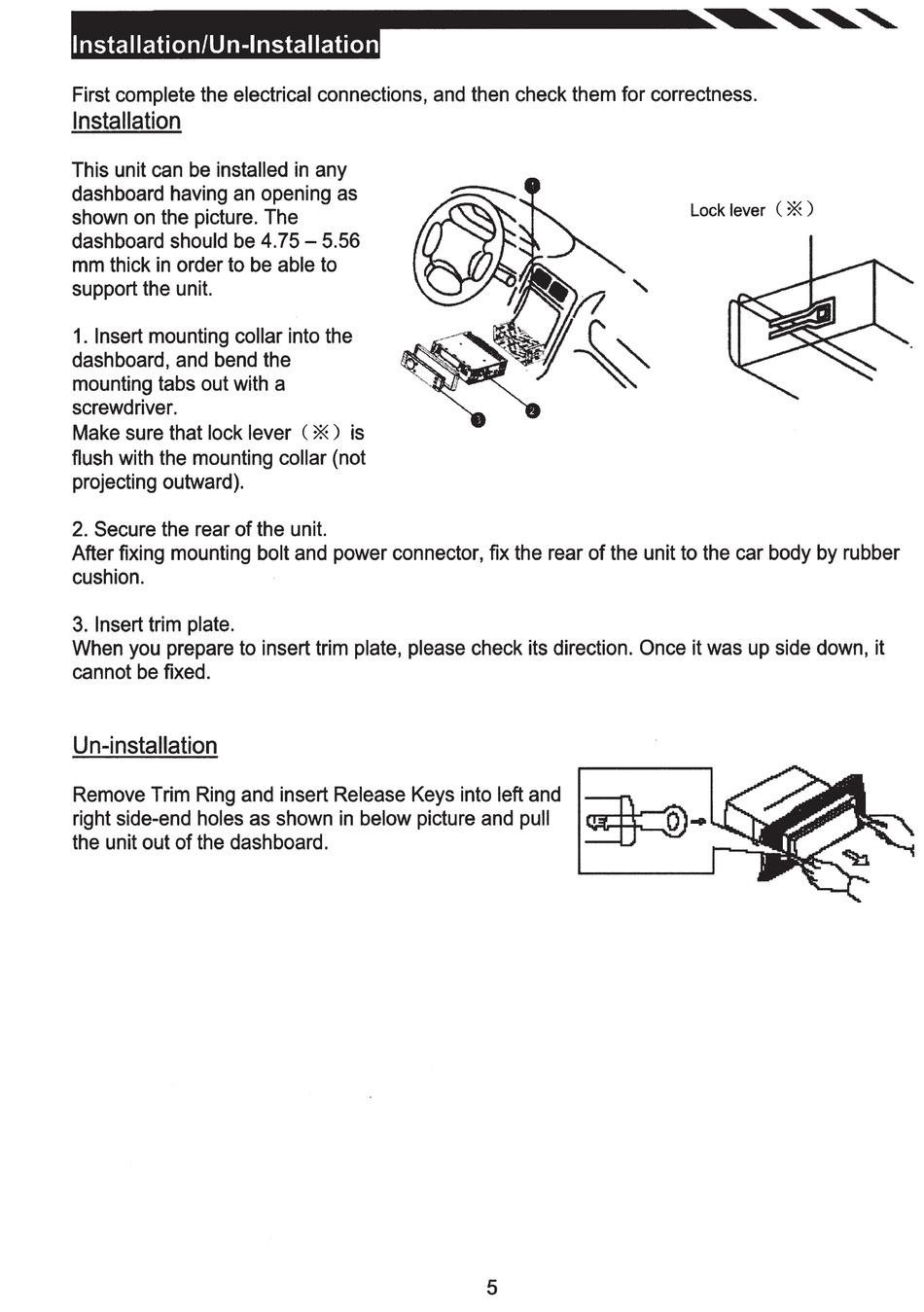

Installation
This unit can be installed in any
dashboard having an opening as
shown on the picture. The
dashboard should be 4. 75 - 5.56
mm thick in order to be able to
support the unit.
1. Insert mounting collar into the
dashboard, and bend the
mounting tabs out with a
screwdriver.
Make sure that lock lever C
*)
is
flush with the mounting collar (not
projecting outward).
2. Secure the rear of the unit.
Lock lever (
* )
After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber
cushion.
3. Insert trim plate.
When you prepare to insert trim plate, please check its direction. Once it was up side down, it
cannot be fixed.
Un-installation
Remove Trim Ring and insert Release Keys into left and
~
right side-end holes as shown in below picture and pull
0 ...
the unit out of the dashboard.
5
