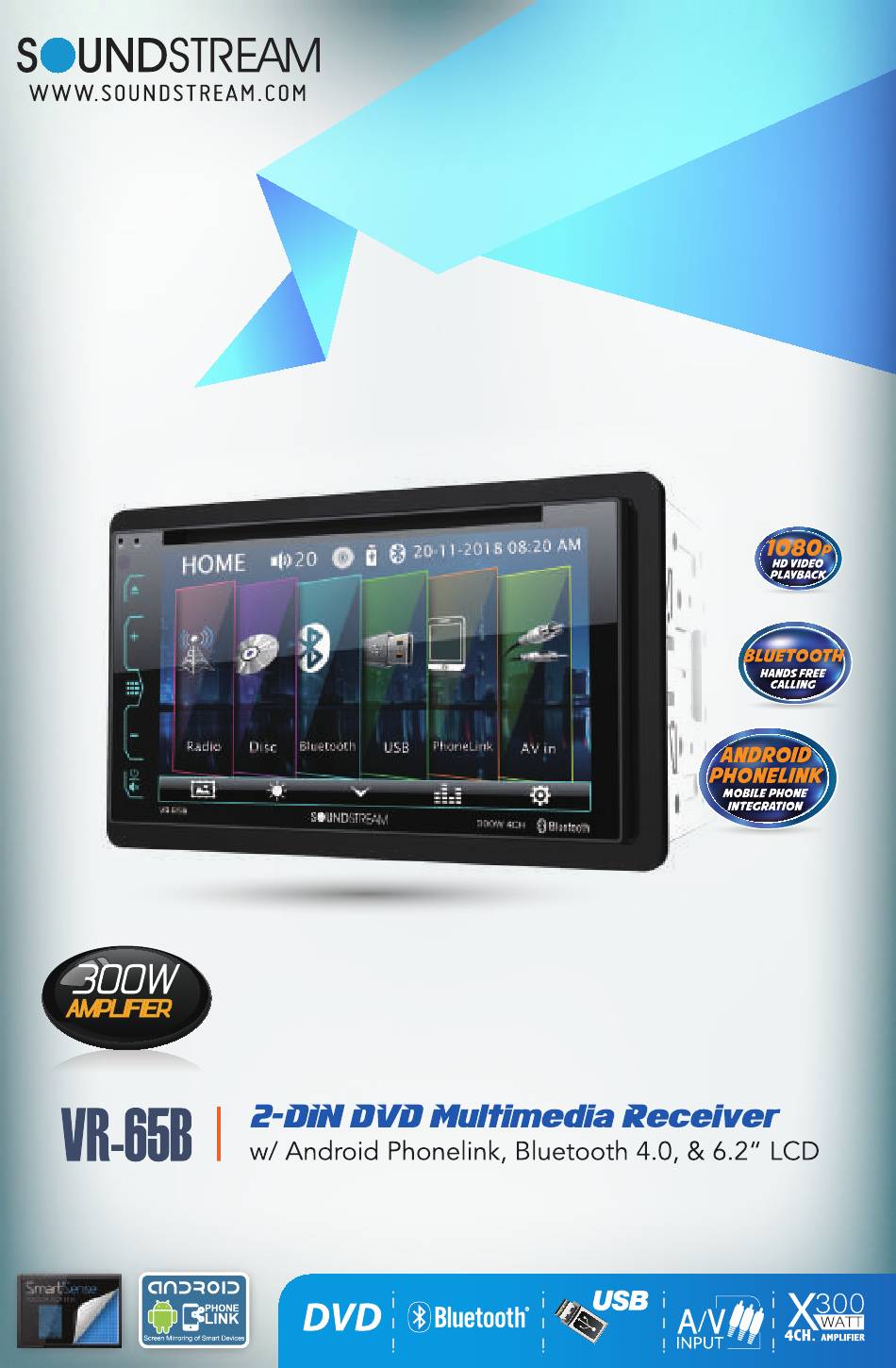

- Page 1 USER’S MANUAL...
- Page 2 IMPORTANT: Do not operate this digital video player while the vehicle is moving. This is a safety feature to prevent driver distraction. It’s illegal in most country for the driver to view video while the vehicle is moving. The digital video functions will be only operated when vehicle is in park and the parking brake is engaged.
- Page 3 Copyright Notes: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
- Page 4 Wiring Connections: MEDIA (Black) CHARGER (Red) RADIO ANTENNA JACK V-OUT1 V-OUT2 Sub-out2 Sub-out1 BLACK SWC - GND BROWN SWC - 1 BROWN / WHITE SWC - 2 YELLOW ORANGE REVERSE (+) PINK BLACK PARKING BRAKE (B-) GROUND ORANGE / BLACK BLUE ILLUMINATION (+) POWER ANTENNA...
- Page 5 Control Panel Buttons: Button In power off mode, press it to turn on the unit. • Press and hold for 2 seconds to turn the unit off . Press the button briefly to toggle Mute on or off. • 2. Volume Decrease (-) Button Press VOL decrease button (-) to decrease the volume.
- Page 6 Control Panel Buttons: 9. Disc Slot 10. 6.2” TFT Touch Screen 11. USB PORT • USB port for media playback (Black USB Connector) This USB port is designed for media playback from flash memory devices. If you would like to play MP4/MP3/WMA/JPEG files contained in a USB flash memory device, insert the USB flash memory into the USB port on the back of the unit.
- Page 7 REMOTE CONTROLS: 10. ST(Stereo/mono) button In FM reception mode, press this button to choose STEREO or MONO audio effect. 11. LOC(LOC/DX), RDM(Random) button In FM reception mode, press this button to choose local or distant reception mode. In DVD/VCD/MP4/MP3 mode, press this button to play all the tracks in random order.
- Page 8 Setup Operations: Main Menu: In each mode, touch the icon to enter the main menu as below image. In the main menu screen, tap the desired icon to enter each of the following settings : Radio, Disc(CD/VCD/DVD), Bluetooth, USB, PhoneLink, AV in. Active Bluetooth Volume Active Media when blue color...
- Page 9 Setup Operations: • Subwoofer On/Off: Enables or Disables the subwoofer output. • Key Lights: To preset the color of button illumination: Red, Green, Yellow, Blue, Purple, Cyan, White, Auto(color automatically change one by one). • Reversing Mute: Enables or Disables reversing mute function. When enable this function, when user start up the reverse gear of vehicle, the unit will silence the audio output of this unit automatically.
- Page 10 Setup Operations: C. Video Settings Tap this item to set the aspect ratio and video parameter. • Aspect Ratio: 4:3 or 16:9 This is to select the appropriate TV aspect 4:3 or 16:9 according to the connected TV set. • Adjust(Video Parameter Settings) Tap this item to set the Brightness, Contrast, Hue, Saturation, Sharpness of this TFT screen.
- Page 11 Radio Operations: 1. Enter into the Home Page 2. Turn off the screen 3. Preset Stations Tap and hold one of preset station touch buttons to store the preset station. Tap one of preset station touch buttons to recall the preset station. 4.
- Page 12 DVD/CD/MP3/USB Operations: Insert DVD/CD Disc With the label facing up, insert a standard size DVD/CD disc into the disc slot. Playback will begin automatically. Eject DVD/CD Disc To eject a disc, first press the button to stop playback, then press the button on faceplate) or tap the icon on the touch sceen to eject the disc.
- Page 13 DVD/CD/MP3/USB Operations: - VCD Playback: 10 11 12 13 14 15 16 19 20 1. Enter into the Home Page 2. Turn off the screen 3. Current Media Type 4. Media Playback Information Display 5. Time 6. Return 7. Previous Track / Fast backward 8.
- Page 14 DVD/CD/MP3/USB Operations: - MP3 Disc/USB Playback: 12 13 1. Enter into the Home Page 2. Turn off the screen 3. Current Media Type 4. Media Playback Information Display 5. Time 6. Return to List of files 7. EQ Settings 8. Previous Track / Fast backward 9.
- Page 15 Before using a Bluetooth phone with this unit, the phone must be paired and connected. The Bluetooth signal of the unit will broadcast when the power is on. This digital video player will displayed as "SOUNDSTREAM" on your phone. When prompted, enter the pass code "0000" on your phone. Once paired, the Bluetooth phone should automatically connect this unit whenever the unit is in range.
- Page 16 Android Phone Link Operations: The PhoneLink allows you to mirror the screen of select Android smartphones onto this DVD player’s screen. Simply plug in your device to the rear USB inputs(Black connector), and you are ready to view your favorite smartphone apps directly on this DVD’s screen.
