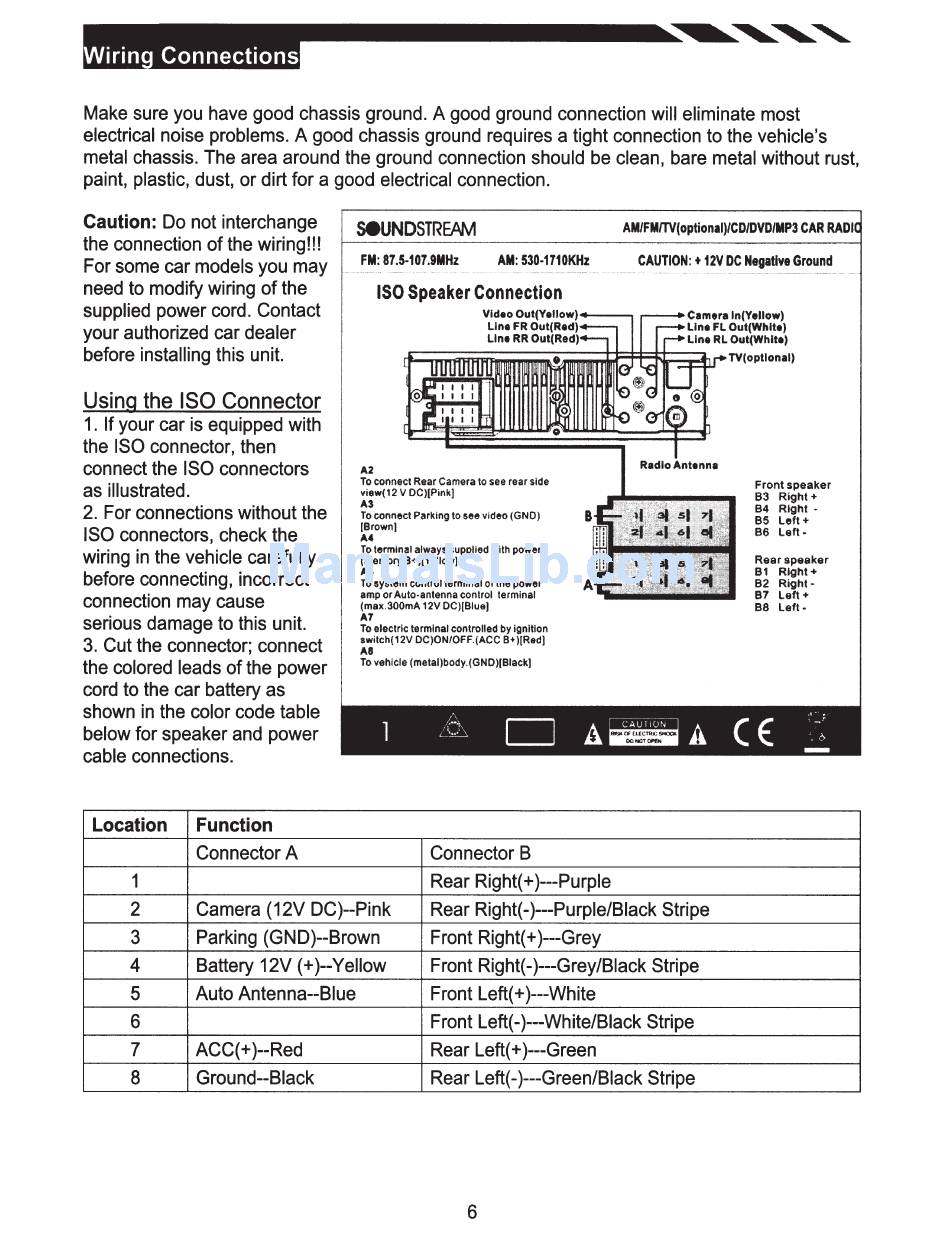

Wiring Connections - Soundstream VR-345 Owner's Manual

-
Make sure you have good chassis ground. A good ground connection will eliminate most
electrical noise problems. A good chassis ground requires a tight connection to the vehicle's
metal chassis. The area around the ground connection should be clean, bare metal without rust,
paint, plastic, dust, or dirt for a good electrical connection.
Caution: Do not interchange
the connection of the wiring!!!
For some car models you may
need to modify wiring of the
supplied power cord. Contact
your authorized car dealer
before installing this unit.
Using the ISO Connector
1. If your car is equipped with
the ISO connector, then
connect the ISO connectors
as illustrated.
2. For connections without the
ISO connectors, check the
wiring in the vehicle carefully
before connecting, incorrect
connection may cause
serious damage to this unit.
5eUNDSTREPM
FM: 87.5-107.9MHz AM: 530-1710KHz
ISO Speaker Connection
A2
To connect Rear Camera to see rear side
view(12 V DC)[Pink}
A3
To connect Parking
to
see video (GNO)
(Brown)
A4
To terminal always supplied with power
(Memory B+)[Yellow]
AS
To system control terminal of the power
amp or Auto-antenna control terminal
(max.300mA 12V OC)(Biue]
A7
To electric terminal controlled by ignition
switch(12V DC)ONIOFF.(ACC B+)(Red)
A8
To vehicle (metal)body.(GND)[Biack)
Front speaker
83 Right+
84 Right -
85
Left+
86 Left-
Rear speaker
81 Right+
82
Right-
87 Left+
88 Left-
3. Cut the connector; connect
the colored leads of the power
cord to the car battery as
shown in the color code table
below for speaker and power
cable connections.
l.:'..
D C E . . _,
l
2 .. ..:\
A A · .
6
-
Location Function
Connector A Connector B
1 Rear Right(+ )---Purple
2 Camera (12V DC)--Pink Rear Right(-)---Purple/Black Stripe
3 Parking (GND)--Brown Front Right(+ )---Grey
4
Battery 12V (+)--Yellow Front Right(-)---Grey/Black Stripe
5 Auto Antenna--Blue Front Left(+ )---White
6 Front Left(-)---White/Black Stripe
7
ACC( +)--Red
Rear Left(+ )---Green
8
Ground--Black
Rear Left(-)---Green/Black Stripe
