Soundstream VR-701 Owner's Manual
  1. Manuals
  2. Brands
  3. Soundstream Manuals
  4. Car Receiver
  5. VR-701 T
  6. Owner's manual

Soundstream VR-701 Owner's Manual

In-dash 7" monitor touch screen dvd/cd/mp3/mp4 am/fmradio built-in tv tuner (only for vr-701 t)
Hide thumbs Also See for VR-701:

Advertisement

Quick Links

Download this manual
VR-701/VR-701 T
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FMRadio
Built-in TV tuner (only for VR-701 T)
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VR-701 and is the answer not in the manual?

Questions and answers

Related Manuals for Soundstream VR-701

Summary of Contents for Soundstream VR-701

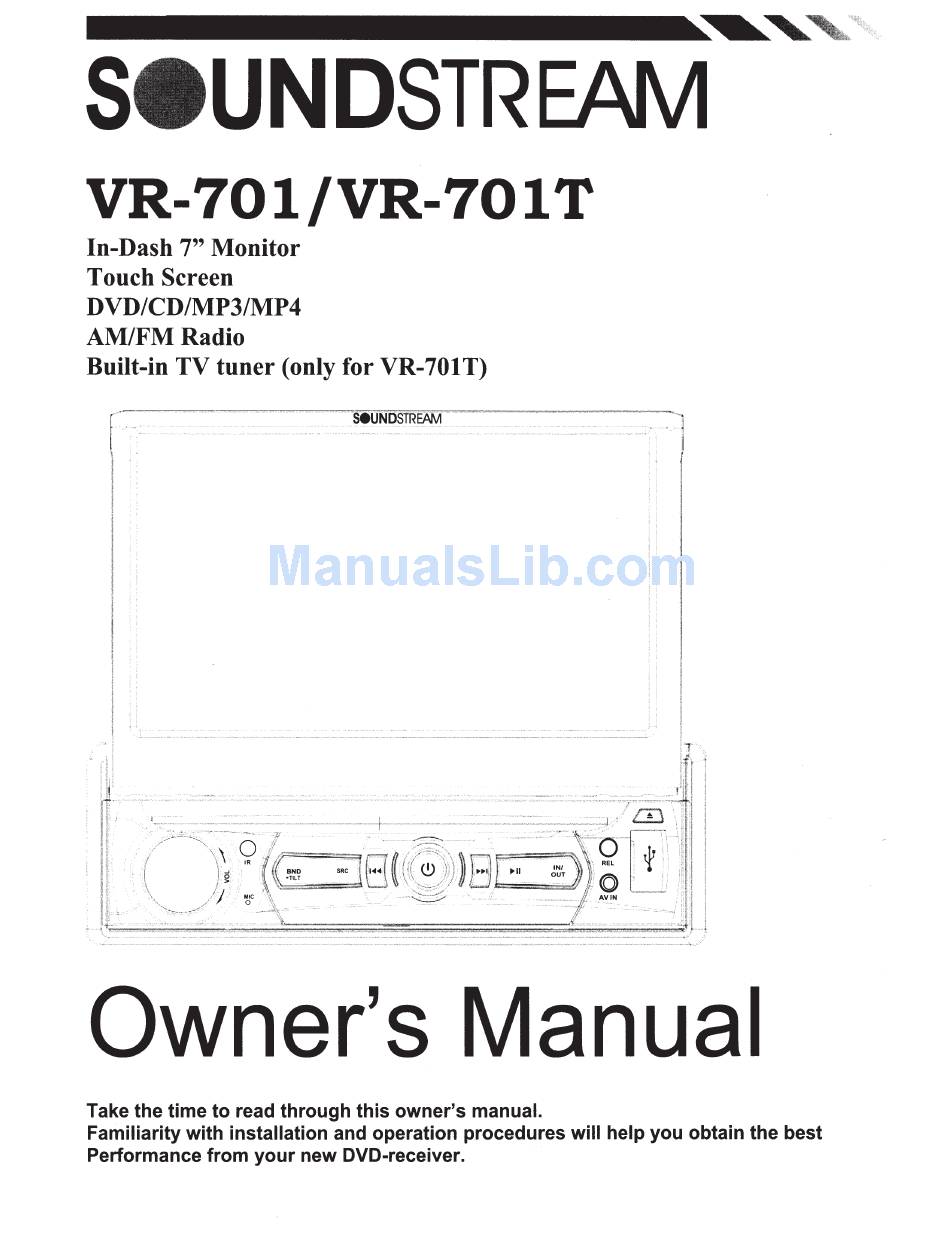

  • Page 1 In-Dash 7" Monitor Touch Screen DVD/CD/MP3/MP4 AM/FMRadio Built-in TV tuner (only for VR-701 T) Owner's Manual Take the time to read through this owner's manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Operation Precautions

    To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the· parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.
  • Page 6 .___._ (Optional) Radio Antenna L---41111- Subwoofer Steering wheel control USE 10 AMP AGC REPLACEMENT FUSE ONLY 4: RL+(GREEN) RL-[GREEN/BLACK} 3: REVERSE(PINK) FL+(WHITE) 5: PARKING(BROWN} FL-(WHITE/BLACK) 9: ACC(RED)/FUSE FR+(GREY) 11: AUTO ANnBLUE) 12: FR-(GREY /BLACK) GND(BLACK) RR+(PURPLE) BATT(YEUOW)/FUSE RR·(PURPLE/BLACK) NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults.
  • Page 7 ......Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4-8 (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND).
  • Page 12 ~""- Go to: in DVD mode press and hold for 2 seconds to show TIME SEARCH menu, select number and confirm to go to certain position directly. When press button to enter TITLE/CHAPTER selection mode, select number and confirm to go to certain TITLE or CHAPTER position directly.

  • Page 13: Radio Player

    Tap the icons to enter a desired mode. rnsc Rad~ S~Jt t,~fio VR-701T VR-701 +RADIO PLAYER To start Radio, tap RADIO button on main menu screen. Mute the sound .. Increase the volume. Decrease the volume.

  • Page 14: Dvd Player

    DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. T the screen ·n to hide the buttons. Insert DVD disc Insert VCD disc NOTE...

  • Page 15: Disc/Usb Interface

    +DISC/USB INTERFACE When a file disc, USB or a memory card is played, the screen will show following interface: Mute the sound. Stop button. Press it to stop playback from the current track, press it again to final stop to the very Play/pause button.
  • Page 17 GENERAL CONTROL Tap GENERAL button to show GENERAL menu. Set tilt mode automatic or TILT MODE manual TILT Adjust monitor tilt angle ANGLE Set clock display time on or off. CLOCK CLOCK Set 24hour format or 12hour HOUR format CLOCK display time RADIO CONTROL SETTING...
  • Page 25 IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY TO "ACC". THE FUSE IS BLOWN. REPLACE THE FUSE. PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER INSIDE THE PLAYER THEN PUT A NEW UPWARD.

  • Page 26: Tft Display

    General 11-16V DC Power supply: Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCDNCD/HDCD/MP3/MP4NIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW /DVD±R/±RW playback Dimensions (W x D x H) 165*178*50 mm/2 kg weight: Working temperature -1 OOC - +60°C range: ESP function: 10 sec.
  • Page 28 Supplemental Troubleshooting Information 1. AM/FM or Audio Staging memory lost the radio will not keep the AM/FM station memory, or audio staging settings, confirm the constant power wire (yellow) receiving minimum 12 volt power at all times, regardless of vehicle ignition or key off.

  • Page 29: Video File Conversion 101

    Video File Conversion 101 File compression seems to be name of the game to see who can fit the most music and video onto today's media deices. Unfortunately with so many compression formats and codecs, it becomes virtually impossibly for your head unit to support the multitude of song and video file types. To overcome the confusion of what video formats are compatible with this head unit, we suggest using a file converter to align the stars and change the many video file types you have to one standard.
  • Page 30 Video File Conversion 101 Otherwise, choose the file format you want to convert your movie to. May we recommend the A VI ..You can also choose the resolution for the screen size and type. If you're converting an original file that super high quality resolution,...
  • Page 31 City: _ _ _ _ _ _ _ _ _ _ _ _ State: _ _ _ _ _ _ _ _ _ _ _ Zip: _ _ _ _ _ ·-~---------------------------------------------------------------------------------------------------------------------------------------------· SoundStream Technologies 1550 S. Maple Ave. Montebello, CA 90640...

This manual is also suitable for:

Vr-701t
