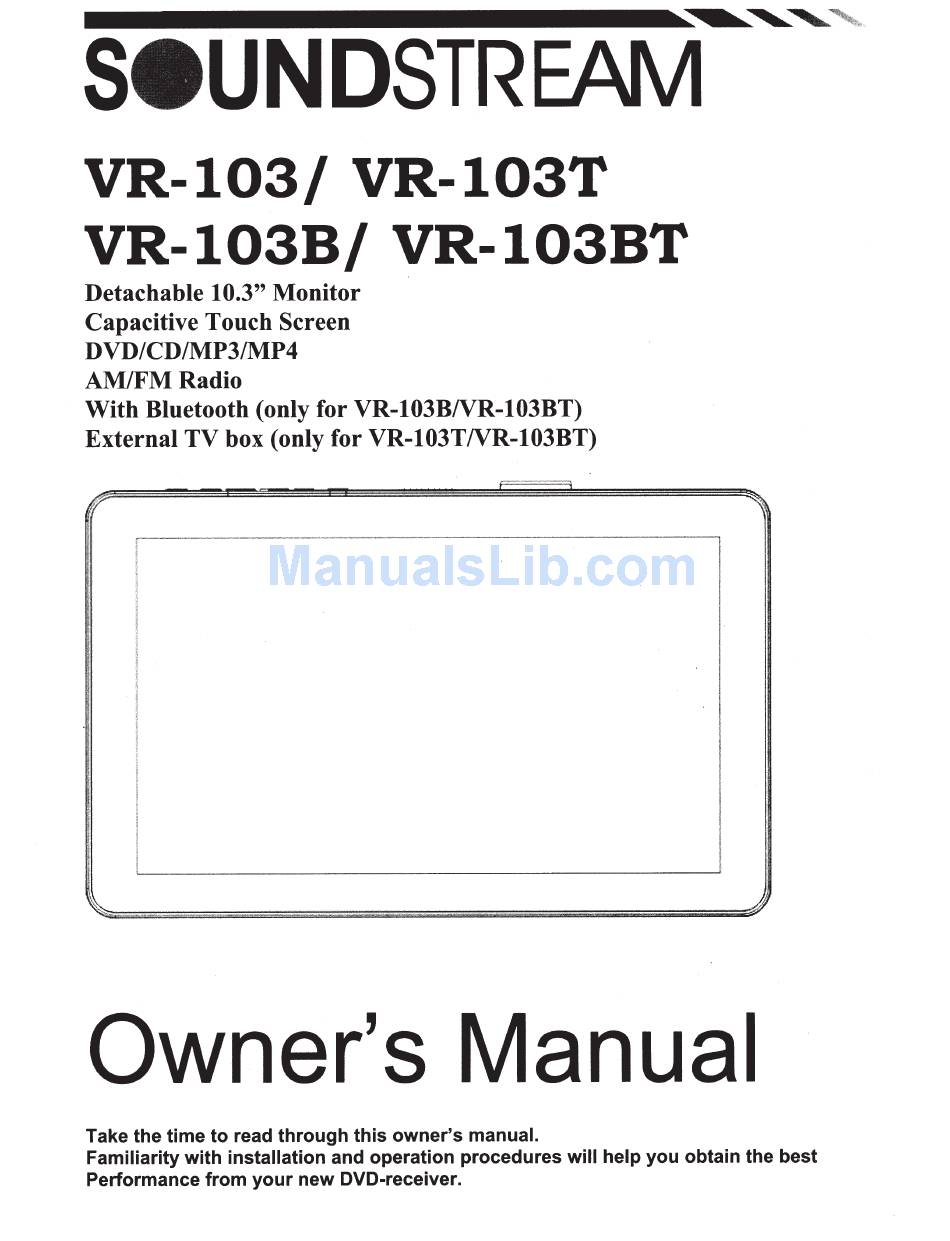

Soundstream VR-103 Owner's Manual
  1. Manuals
  2. Brands
  3. Soundstream Manuals
  4. Car Receiver
  5. VR-103
  6. Owner's manual

Soundstream VR-103 Owner's Manual

Detachable 10.3" monitor capacitive touch screen dvd/cd/mp3/mp4 am/fmradio
Hide thumbs Also See for VR-103:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VR-103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Soundstream VR-103

Summary of Contents for Soundstream VR-103

  • Page 4: Warranty Card

    Packa e contains the followin accessories for installation and o eration of the unit. ( 1) Mounting Strap o oo) (2) Bolt (3) Screw ~{illl (4) Mounting Collar (5) Release Key User Manual Warranty card AV in cable User Manual Warranty card Remote Control RCA Cable...
  • Page 5 Installation: 1) Install the mounting sleeve into the 2) Bend the tabs into place to secure the dashboard. sleeve. 3) Slide the unit into the mounting sleeve. 4) Install the trim bezel onto the unit. 5) Install the panel to the unit. 6) Make sure all faceplate tabs meet properly with the mounting plate.
  • Page 9 Jl~l~ " pt" ··~~a ..--9 [ Jl 1. MIC 2. POWER/ MUTE button Press it to turn on the unit. When the unit is on, short press it mute the volume output, long press it to turn the unit off. 3.
  • Page 13 Note: • The distance may vary according to the brightness of ambient light. • If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. • Do not place any objects between the remote control unit and the sensor on the unit. •...

  • Page 14: Radio Player

    --· ·----------·~ """- +RADIO PLAYER To start Radio, tap RADIO button on main menu screen. Mute the sound .. • Increase the volume. Decrease the volume. • • • • Touch this button can choose FM1, FM2, FM3, AM1, AM2. ·...
  • Page 19 ......DVD SET UP MENU Tap the DVD button in main menu to enter the DVD player. Press the SETUP button to enter into the system settings main menu; press the up or down arrow buttons to move to the highlighted menu item and select one of the Setup Pages: [1].
  • Page 22 BLUETOOTH SECTION ONLY FOR VR-1 038/VR-1 03BT Warning: Driving and having a Telephone conversation at the same time dangerous, please park your car before having a telephone conversation. The supplier waves any and all liability when this warning is not followed. To enter Bluetooth mode, you can tap Bluetooth icon on Main menu or long press the mute/Biuetooth button on the Remote Control or press mode button on remote or on front panel.

  • Page 25: Other Functions

    General Operation Phone Calls When receiving a phone call, press the play/pause icon ( IJJJ>II/ ) to answer the call. Press • to reject or end the phone call. .A. • MP3 Playback Press and hold IJJJ>II/ icon to activate MP3 playback mode, the most recently played song...
  • Page 27 Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 29: Technical Specifications

    TECHNICAL SPECIFICATIONS General 11-16V DC Power supply: max. 10 A Current consumption: 52W x 4 channels (max) Maximum power output: DVD/SVCDNCD/HDCD/MP3/MP4NIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW /DVD±R/±RW playback Dimensions (W x D x H) I 255*160*50 mm/2.5 kg weight: Working temperature -1 OOC - +60°C range: ESP function: 10 sec.

  • Page 32: Video File Conversion 101

    Video File Conversion 101 File compression seems to be name of the game to see who can fit most music and video onto today's media deices. Unfortunately with so many compression formats and codecs, it becomes virtually impossibly your head unit to support the multitude of song and video file types.
  • Page 33 Video File Conversion 101 lilTS NPEG1 You can also choose the resolution for the screen size and type. If you're converting an original file that is super high quality resolution, you might consider the HD options, but most commonly you should choose Normal Qual...

  • Page 34: Attention Installer

    !!ATTENTION INSTALLER!! Bluetooth Connection Instructions 1. To enter Bluetooth mode, you can tap Bluetooth icon on Main menu or long press the "mute"/"Biuetooth" button on the Remote Control, or press "mode" button on remote or on front panel to select bluetooth mode.
  • Page 36 Dealer Address: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ City: _ _ _ _ _ _ _ _ _ _ _ State: _ _ _ _ _ _ _ _ _ _ Zip: _ _ _ _ _ -~----------------------------------------------------------------------------------------------------------------------------------------------- SoundStream Technologies 1550 S. Maple Ave. Montebello, CA 90640...
