F3 Field Service Manual – Level 1 Maintenance
3.7.

Battery Pack

3.7.1. Battery Pack Disassembly
0311-0018
1 4003-0078
2 0705-0016
3 4309-0040
4 0701-0030
5 0703-0126
6 0703-0079
7 3004-0005
8 0705-0015
9 0703-0098
10 4003-0079
a. Faceplate, Front Cap, Battery Pack Lid and Tether
•
Undo the battery pack lid. Remove the 4 screws (10) from the faceplate (9).
Remove the faceplate. The front cap and battery pack lid can now be
removed (together) from the battery pack housing. (To replace the battery
pack housing or battery tube, go now to 3.7.1 b.)

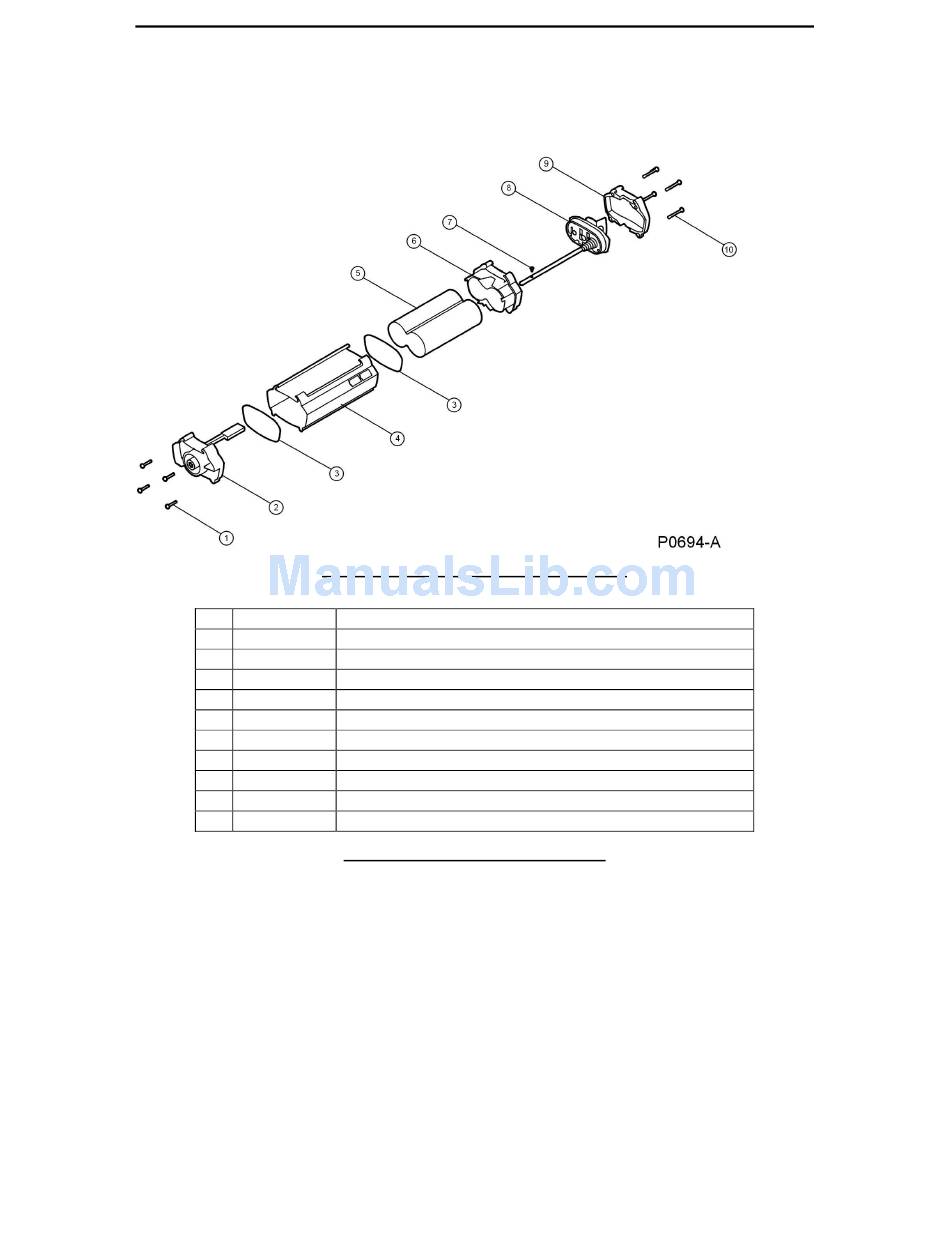

Figure 71 Battery Pack Exploded View
BATTERY PACK F3 BLACK
SCREW M3X16 POSI SS
PANEL ASSY CAP REAR BP F3
O-RING ENDCAP BP EP F3
HOUSING BP BLACK F3
BATTERY TUBE BP F3
CAP FRONT BP F3
RIVET (part of TETHER WITH RIVET KIT SVC BP F3)
PANEL ASSY LID BP F3 (BATTERY PACK LID)
FACEPLATE CAP FRONT BP F3
SCREW M3X25 POSI SS
Figure 72 Battery Pack Parts List
