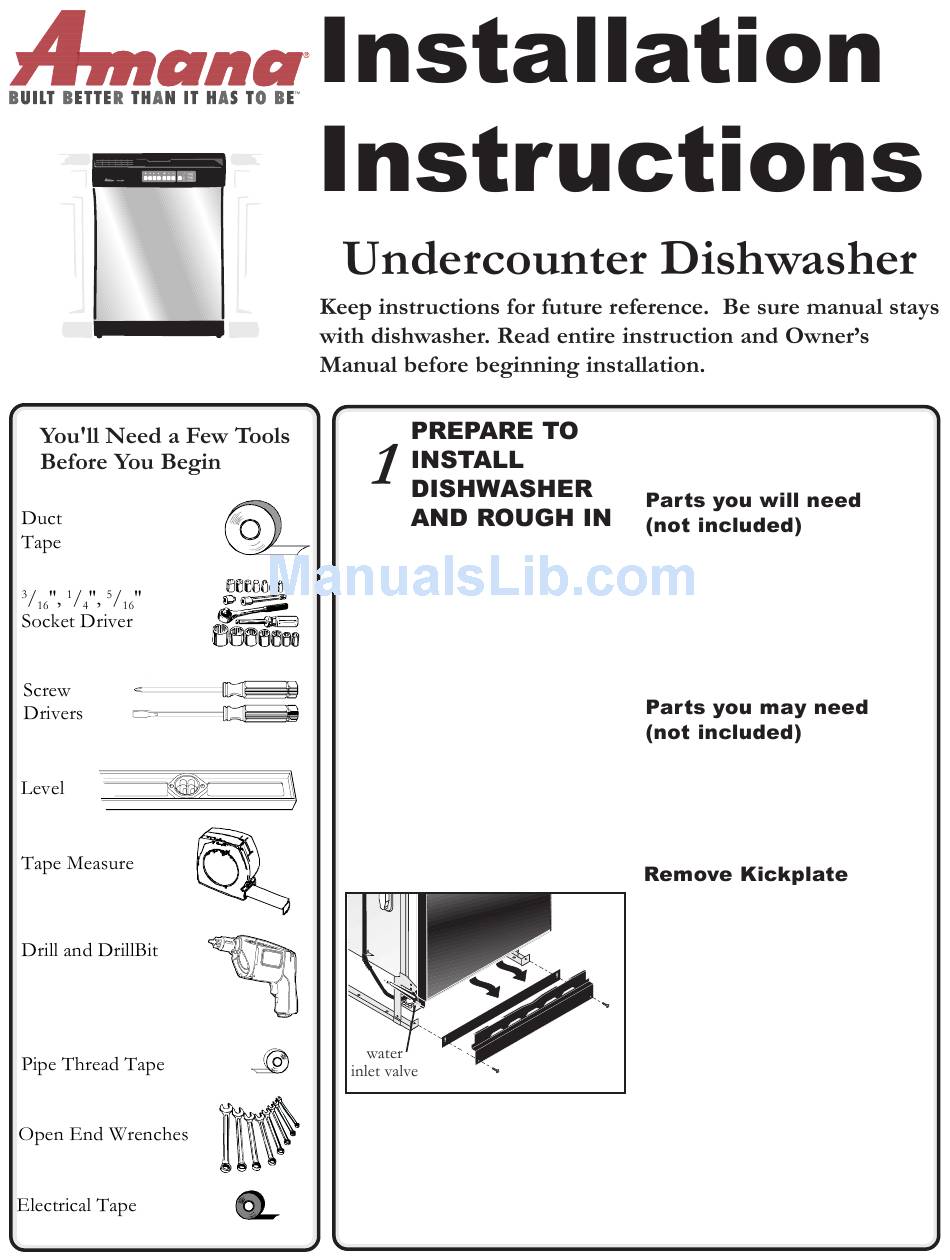

Amana Undercounter dishwasher Installation Instructions Manual

Installer–
Leave this manual and other literature with owner for future use.
Verify location has the proper drain,
water and electrical outlets to make
the connections. See Location and
Electrical Requirement Considerations
in this instruction. Also see
Dishwasher, Cabinet, and Supply
Dimensions in this instruction.
Remove any carpet from area to
provide motor clearance. Floor should
be flat and free of any obstruction.
Do not install dishwasher under a
cooktop. Damage will occur.
Each home installation differs. You
will need additional parts, not
included, to complete installation:
1
Drain hose clamp, 1 / " diameter
4
Water supply line or tubing
Elbow, 90° with a 3 / " National Pipe
8
Thread (NPT)
Strain Relief Bushing ( 3 /
connector)
Wire nuts (2) for 12 to 14 gauge wire
'Y' branch tailpiece and connector kit
Air Gap Kit
Fasteners for floor anchoring
Electrical power cord, 12 to 14 gauge
1. Remove two screws at front of
the kickplate assembly.
2. Tilt kickplate forward to remove.
3. Locate water inlet valve behind
kickplate on the bottom left
underside of unit. This valve has
3
a / " NPT female fitting
8
4. Wrap 90° elbow (not included)
with pipe thread tape (or apply
joint compound) and thread into
water inlet valve.
5. Tighten elbow with a wrench,
leaving elbow pointing toward
rear of unit. To prevent
bending of bracket or
breaking of valve, avoid
overtightening.
" box
4
