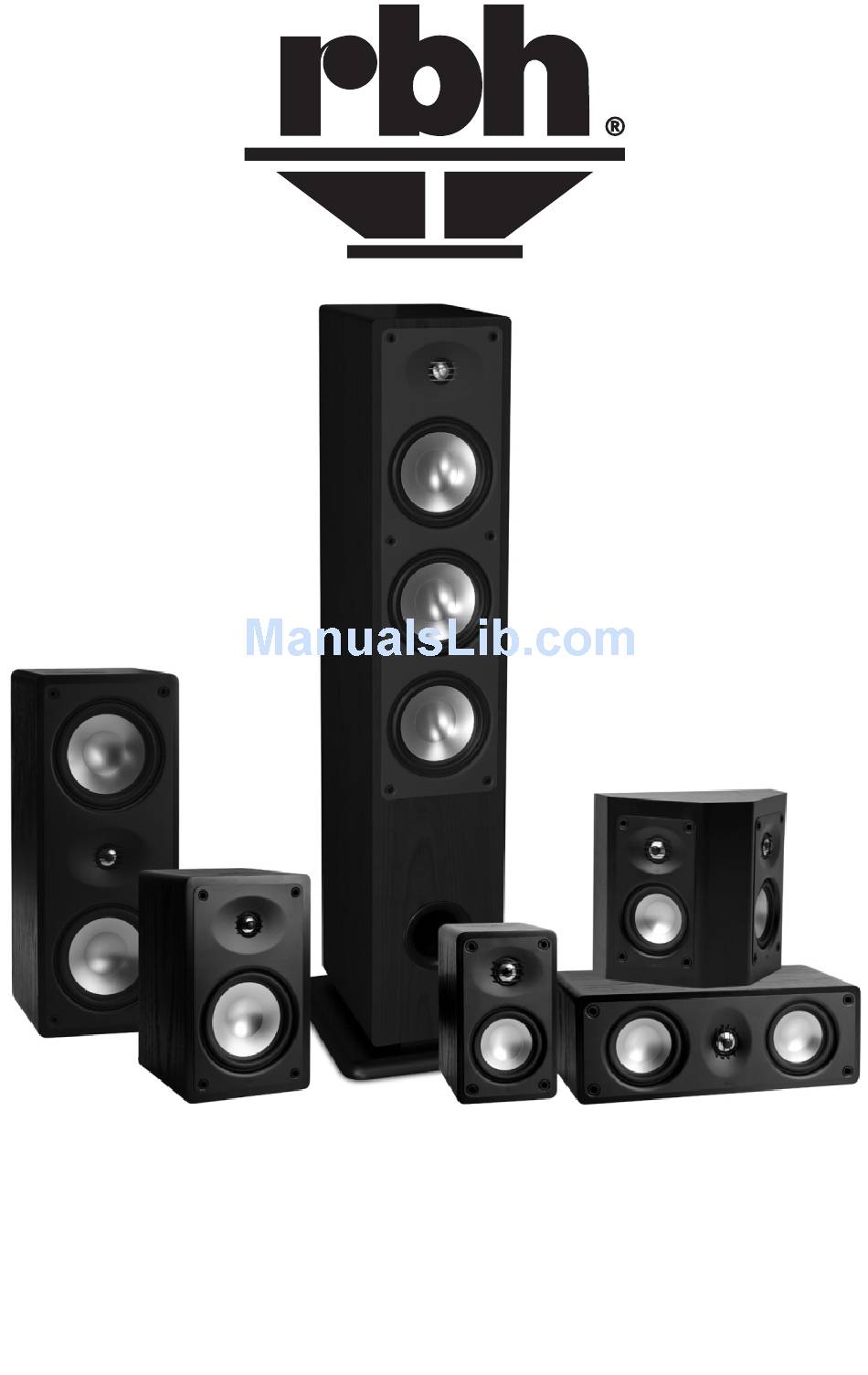

- Page 1 MC SERIES FREESTANDING SPE AKERS O w n e r ’ s M a n u a l...
-
Page 2: Break-In Period
MC Series Freestanding Speakers Break In Period Allow several hours of listening time to adequately break in the MC Series freestanding speakers. As the speaker breaks in, the driver suspension will loosen. The result of break-in will be an increase in low frequency response, improved definition, clarity... -
Page 3: Care And Cleaning
Features At the heart of the MC Series freestanding speakers is a proprietary aluminum cone bass/midrange driver (speaker). The unique aluminum cone material combines stiffness, low mass and self damping properties in a manner which allows virtually uncolored presentation of program material. -
Page 4: Attaching The Base
Attaching Speaker Wires (continued) of the speaker wire and insert the exposed wire end into the now exposed hole in the side of the terminal. Tighten the binding nut by turning the nut clockwise until the speaker wire is secured. Repeat for the other speaker wire(s) as necessary. - Page 5 Room Setup Suggestions In order to extract the best possible sound from your speakers, it is important to determine where the speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
- Page 6 Room Setup Suggestions (continued) Front Main Speakers As a starting point, place your front left and right speakers at least 7 feet apart from each other. The distance from the listening position to each speaker should be close to the distance that separates the two main speakers. Angling the speakers slightly inward towards the listening position may give a more spacious and realistic sound stage.
-
Page 7: Specifications
Specifications Model: MC-4C MC-414C MC-44C Frequency 85Hz-20kHz ±3dB 85Hz-20kHz ±3dB 100Hz-20kHz ±3dB Response: Sensitivity: 84dB 88dB 88dB (2.83V/1 meter) (2.83V/1 meter) (2.83V/1 meter) Recommended 50-100 Watts 50-150 Watts 50-150 Watts Power: Woofer(s): (1) 4” (102mm) (2) 4” (102mm) (2) 4” (102mm) Aluminum Cone Aluminum Cone Aluminum Cone... - Page 8 Specifications Model: MC-6C MC-616C MC-6CT Frequency 50Hz-20kHz ±3dB 50Hz-20kHz ±3dB 40Hz-20kHz ±3dB Response: Sensitivity: 87dB 89dB 87dB (2.83V/1 meter) (2.83V/1 meter) (2.83V/1 meter) Recommended 50-150 Watts 50-150 Watts 50-200 Watts Power: Woofer(s): (1) 6½” (165mm) (2) 6½” (165mm) (3) 6½” (165mm) Aluminum Cone Aluminum Cone Aluminum Cone...
-
Page 9: Troubleshooting
RBH Sound products. Charges for unauthorized service and transportation cost are not reimbursable under this warranty. This warranty becomes void if the product has been damaged by alteration, misuse or neglect. RBH Sound assumes no liability for property damage or any other incidental or consequential damage whatsoever which may result from the failure of this product. - Page 10 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.rbhsound.com It is RBH Sound policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. Copyright © 2009 RBH Sound. All Rights Reserved.
