NAPCO Security Command Center Operating Manual page 5

Window. Displays system status
1
messages, zone descriptions, etc.
2 STATUS Light. Lights (green) to
indicate that the system is ready
for arming. If a zone is not
secured the light will be off and
the zone will display in the
window. If a zone has been
bypassed, the STATUS light will
blink while armed.
3 ARMED Light. Lights (red) to
indicate that the system is armed.
If an alarm has occurred, the
ARMED LED will be flashing.
MENU Button. Selects available
4
system functions as displayed in
the window. The selected function
is executed by pressing the
button.
5
BYPASS Button. (1) Deactivates
selected zones from the system.

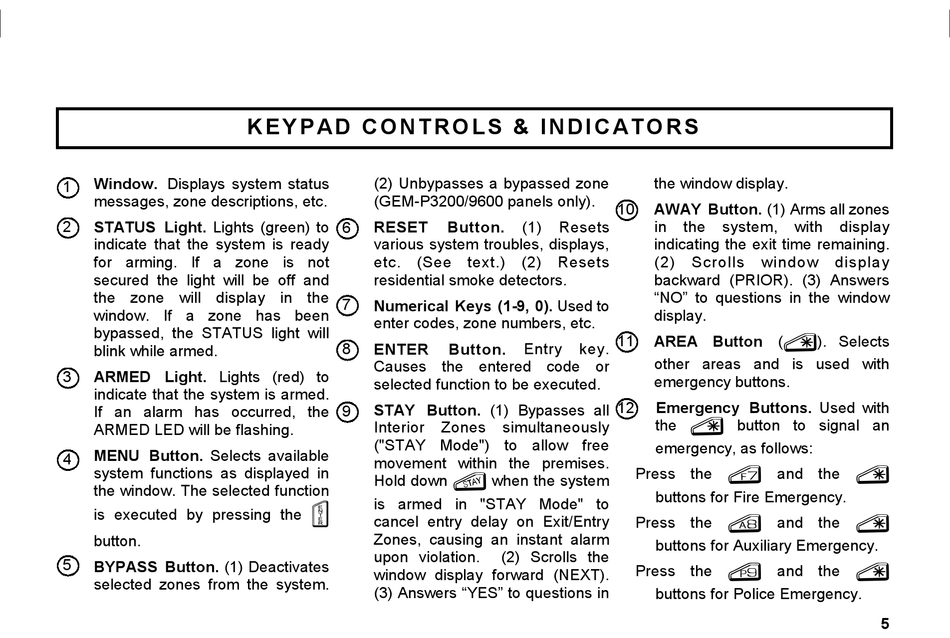

K E Y P AD C O N T R O L S & I N D I C AT O R S
(2) Unbypasses a bypassed zone
(GEM-P3200/9600 panels only).
RESET
6
various system troubles, displays,
etc. (See text.) (2) Resets
residential smoke detectors.
7
Numerical Keys (1-9, 0). Used to
enter codes, zone numbers, etc.
8 ENTER
Causes the entered code or
selected function to be executed.
STAY Button. (1) Bypasses all
9
Interior
("STAY Mode") to allow free
movement within the premises.
Hold down
is armed in "STAY Mode" to
U
cancel entry delay on Exit/Entry
Zones, causing an instant alarm
upon violation.
window display forward (NEXT).
(3) Answers "YES" to questions in
Button. (1) Resets
Button. Entry key.
Zones simultaneously
P when the system
(2) Scrolls the
the window display.
10
AWAY Button. (1) Arms all zones
in the system,
indicating the exit time remaining.
(2) Scrolls window
backward (PRIOR). (3) Answers
"NO" to questions in the window
display.
11 AREA Button (
other areas and is used with
emergency buttons.
12 Emergency Buttons. Used with
the G button to signal an
emergency, as follows:
Press the 7 and the
buttons for Fire Emergency.
Press the and the
8
buttons for Auxiliary Emergency.
Press the and the
9
buttons for Police Emergency.
with display
display
G ). Selects
G
G
G
5
