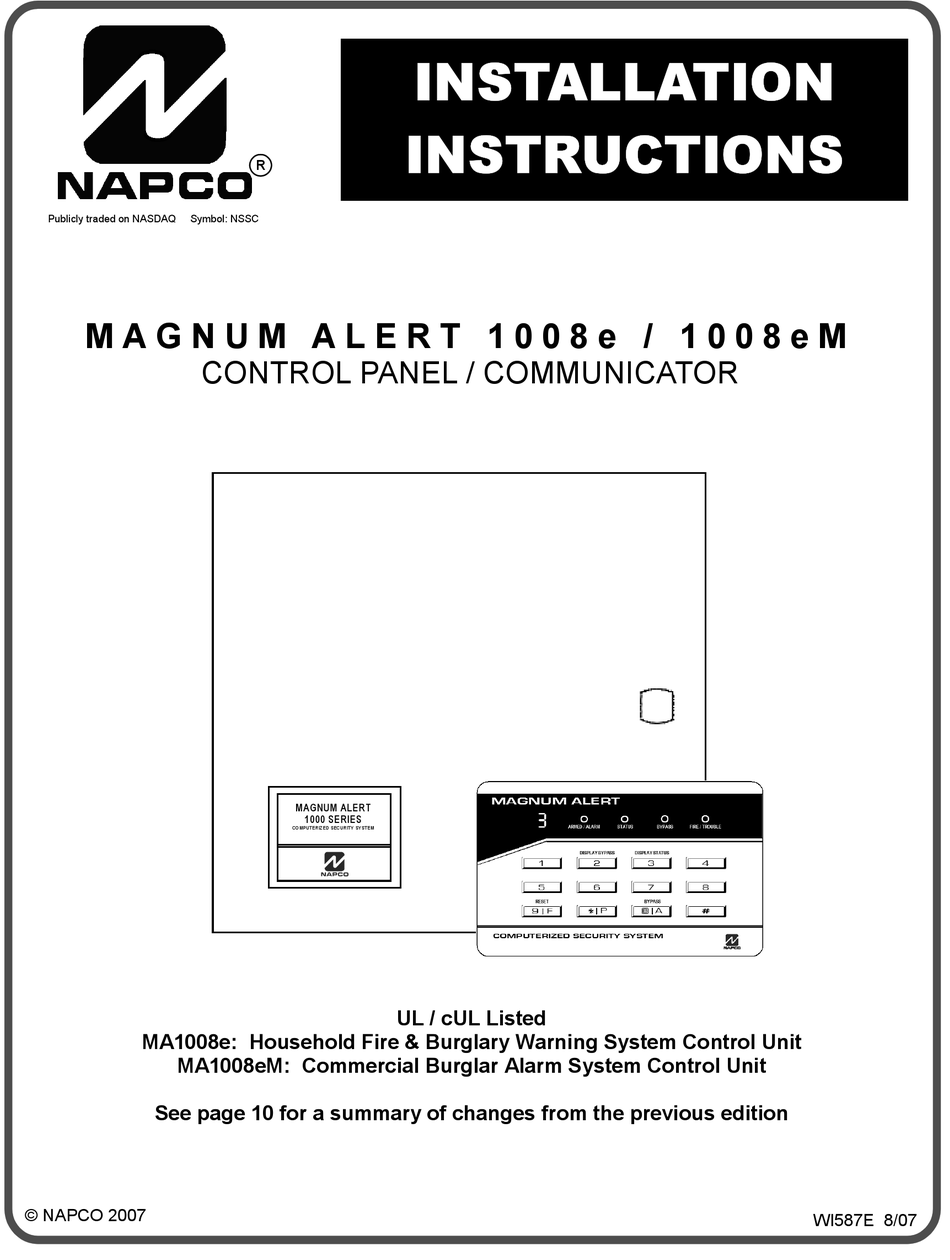

INSTALLATION
INSTRUCTIONS
R
Publicly traded on NASDAQ
Symbol: NSSC
M A G N U M A L E R T 1 0 0 8 e / 1 0 0 8 e M
CONTROL PANEL / COMMUNICATOR
MAGNUM ALERT
1000 SERIES
COMPUTERIZED SECURITY SYSTEM
UL / cUL Listed
MA1008e: Household Fire & Burglary Warning System Control Unit
MA1008eM: Commercial Burglar Alarm System Control Unit
See page 10 for a summary of changes from the previous edition
© NAPCO 2007
WI587E 8/07
L
MA1008e / 1008eM Installation Instructions
NAPCO Security Systems
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NAPCO MAGNUM ALERT 1008e
Summary of Contents for NAPCO MAGNUM ALERT 1008e
- Page 1 MA1008e: Household Fire & Burglary Warning System Control Unit MA1008eM: Commercial Burglar Alarm System Control Unit See page 10 for a summary of changes from the previous edition © NAPCO 2007 WI587E 8/07 MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
-
Page 2: Table Of Contents
5. GLOSSARY & PROGRAMMING DATA ..............17 6. WIRING DIAGRAM ....................31 Index starts on page 28 NAPCO Security Systems, Inc. 333 Bayview Avenue, Amityville, New York 11701 For Sales and Repairs, call toll free: (800) 645-9445 For direct line to Technical Service, call toll free: (800) 645-9440 Internet: http://www.napcosecurity.com... -
Page 3: Introduction
Fire Zone and a variety of reporting features. An a PCL2000 Local Download Cable. event log, accessible only through Napco PCD2000 Quick- loader software, monitors up to 82 prior events. FEATURES MA1008eM "Mercantile"... -
Page 4: Specifications
TRF11 Transformer, 16VAC 40VA, Class 2 (UL Listed) TRF12 Transformer, 16VAC, 19.2VA, Class 2 (UL Listed) Other Features EOL2.2K End-of-Line Resistor Assembly, 2.2kΩ. • Supports NAPCO's Super Spectrum's Wireless System FT2200 End-of-Line Relay/Resistor Supervisory Module • Audible Bell-Test on Arming PS3002 Power-Supply Module •... -
Page 5: Summary Of Ul Requirements
• If the battery is heavily discharged, replace it or have it tested by a qualified technician; • Remote panic switches must be located in the same room as the control unit and keypad. Wiring may not MA1008e / 1008eM Installation Instructions NAPCO Security Systems... -
Page 6: Installation
On a normally-closed zone, in- Remote Panic. To connect a remote (Police) panic but- stall Napco normally-open tamper switches (closed when set) ton, splice the two white keypad wires to a normally-open in series. There are two tamper switch provisions in the cabi- momentary-contact pushbutton switch. -
Page 7: Wiring To A Mercantile Bell
Batterymarch Park, Quincy, MA 02269) for additional infor- mation, including proper mounting methods. ― BELL ADEMCO AB-12 4700-OHM INTERNAL BELL BELL IN BOX END-OF-LINE TAMPER RESISTOR SWITCHES Fig. 1. Wiring to a Mercantile Bell. MA1008e / 1008eM Installation Instructions NAPCO Security Systems... -
Page 8: Getting Up And Running
- No AC: F9 code and cautioned against divulging that code to anyone else - Low Battery: F8 Thus, should it became necessary to remove a user from the • Restore Codes, MA1008e / 1008eM Installation Instructions NAPCO Security Systems... -
Page 9: Keypad Operation
Police Panic: press Keys [*/P] and [#] be temporarily reset by holding down Reset Key [9] in order to • Auxiliary Panic: press Keys [B/A] and [#] check zone status and/or arm the system. MA1008e / 1008eM Installation Instructions NAPCO Security Systems... -
Page 10: Testing The System
The following changes have been made to this manual (WI587E) since the previous edition (WI587D): • Cover: UL Listing text descriptions changed to "UL/cUL". • Page 3: 2nd paragraph, removed text "If complemented by NAPCO wireless transmitters…" (to end of paragraph). • Page 4, 5, 18: Recommended battery specifications changed. •... -
Page 11: Programming
If you encounter this problem and need be entered as a three digit number, that is, 001, 020, 157, etc. assistance, call Napco's Technical Service Department (toll Notice that as each of the three digits is entered, the three dis- free) at (800) 645-9445. -
Page 12: Programming Sheets
PAGE switch (PRO410/410M) be retained for future reference. The Glossary contains infor- is set accordingly. Note: If using the Napco PRO410/410M mation and instructions for programming each feature. programmer, before attempting to program either page, be... -
Page 13: Downloading From A Computer
Align the dot on the PROM with the dot on the circuit Data may be remotely downloaded to the panel via tele- board. phone lines using an IBM PC-compatible computer with Napco 2. Apply ac power. Enter the Dealer Program Mode: Hold PCD2000 software and PCI2000 interface. Onscreen prompt-... - Page 14 CLOSING CODES ARE PROGRAMMED. (5) THESE FOR- RADIONICS, DCI, FRANKLIN SLOW (SEE NOTE 5) MATS TYPICALLY USE A 2300HZ HANDSHAKE; ADD AN UNIVERSAL HI-SPEED "8" TO THIS ENTRY. FOR 2300HZ HANDSHAKE, ADD AN "8" TO THIS LOCATION MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 15 UP button until "0" is displayed; in PRO410, press Key [0].) (7) Zone "8" for wireless operation only. To use as other than keypad Panic, also program DIRECT KEY- PAD PANIC TO AMBUSH (see GLOSSARY). MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
-
Page 16: System Features
(4) To conform with Telephone Company convention, program zeros in Telephone Numbers, Alarm Codes and Subscriber ID Numbers as an entry total of 10. (Press DATA UP button until "0" is displayed; in PRO410, press Key [0].) MA1008e / 1008eM Installation Instructions NAPCO Security Systems... -
Page 17: Glossary & Programming Data
Diagram). See Time Selection for timeouts. (2) Cut Jumper to prevent the fire signal from sounding a steady siren (or bell, if Jumper E is cut). (3) Cut Jumper D to produce an alternating two-tone siren sound. Table 4. Alarm Outputs MA1008e / 1008eM Installation Instructions NAPCO Security Systems... - Page 18 Auto-Download ID Number (Locations 252, 253) Callback Select (Location 254) Callback Telephone Number 1 (Locations 270-285; Napco PCD2000 Software Version 2.E and later includes a PROM Page-1 Locations 014-029) PC-Preset utility wherein numerous programs may be preset Callback Telephone Number 2 (Locations 286-301,...
- Page 19 After transmitting the Subscriber identification Number 678C - Subscriber "678" has closed. and the event code, the communicator sends a verifying CCC3 - Closing, User 3. digit that is the sum of both. The receiver compares the MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 20 Disable Callback-Method Download (Location 080) transmission accuracy. To select Sum Check, program a "4" Data may be remotely downloaded to an MA1008e using Napco Quickloader™ software and interface if the correct in Location 113 (or 145 for a second telephone number, if used).
- Page 21 60 seconds; entry delay will be 30 down for 10 seconds. Power is restored and a 4-second seconds. (In UL installations, exit time may not exceed 60 MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 22 Lug E5. The 12V at Lug E5 will drop to zero when the com- ing), or it may transmit only when the panel is disarmed municator goes off-hook. The voltage will return when the transmission is completed and the module can occupy the MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 23 094-095 are left blank, PIR Zones will still be delayed on power-up, but they will not be monitored for activity). If this feature is selected and any other zones are pro- MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 24 Note: (1) 24-Hour Zone restores are sent as shown under Zone Restore. (2) It is recommended that Zone-Restore Zones or 24-Hour Zones be programmed with Auto Reset or Priority Zone to prevent accidental auto-bypassing of a latched zone. MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 25 The respective Alarm Code Subscriber Identification Numbers may be required for is programmed into Locations 024, 025. Alarm/Restore Reports (Locations 132-139) and Opening/ Closing Reports (Locations 140-143). As above; both MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 26 Enter the quotient in the 2nd Box and the remainder locations are programmed "F", maximum time = 4 in the 1st Box: hours, 15 minutes (255 minutes); or 63.75 seconds (255 quarter-seconds) for Chime Duration. MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 27 ("2" in Location 078), Lug E15 will go low after 9 unsuccessful programmed for 24-Hour Protection, however an alarm will be transmissions, and remain low until either a transmission or a logged into Alarm History (see Alarm History). Telco Test is successful. MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 28 ENABLE KEYPAD FIRE PANIC .......... 21 CHANGING OR VOIDING A CODE ........9 ENABLE KEYPAD PANIC ..........23 CHIME ON WITH GROUP BYPASS ....... 18, 22 ENABLE KEYPAD SOUNDER ON ALARM ......21 MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 29 KEYPAD SOUNDER ON ALARM ........21 PROGRAMMING SHEETS ..........12 KEYPAD TACTILE BEEP ..........21 PROGRAMMING STEPS ..........12 KEYPAD WIRING .............. 6 PROGRAMMING USER CODES .......... 8 LINE-REVERSAL MODULE ..........22 PROM PROGRAMMING ........... 13 MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
- Page 30 SYSTEM TROUBLE INDICATIONS ........9 TAMPER SWITCHES ............6 TELEPHONE NUMBERS ........... 25 TEST TIMER ..............25 TESTING THE SYSTEM ........... 10 TEST-TIMER OFFSET ............26 TIME SELECTION ............26 TIMEOUT ............... 26 MA1008e / 1008eM Installation Instructions NAPCO Security Systems...
-
Page 31: Wiring Diagram
Page 31 6. WIRING DIAGRAM MA1008e / 1008eM Installation Instructions NAPCO Security Systems... -
Page 32: Napco Limited Warranty
NAPCO will, In no event shall NAPCO be liable for an amount in within said period, at its option, repair or replace any excess of NAPCO's original selling price of the product,...
Need help?
Do you have a question about the MAGNUM ALERT 1008e and is the answer not in the manual?
Questions and answers

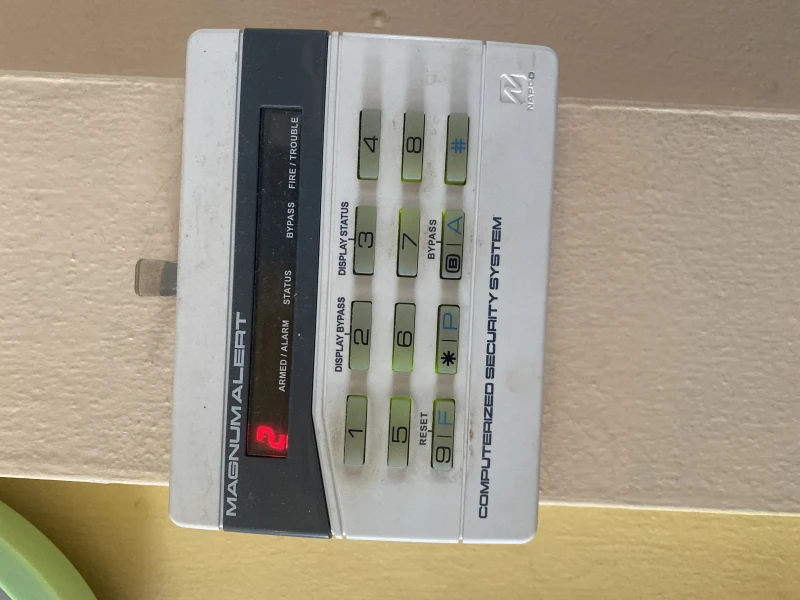

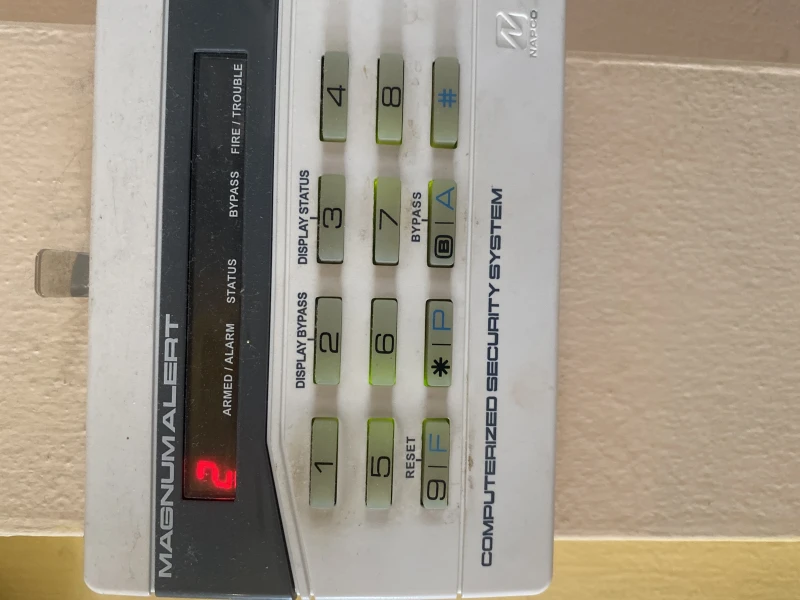

The alarm will set but won’t go off when you open door
