Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: FC-321 SD/HD-SDI to HDMI Converter/Switcher... -
Page 2: Table Of Contents
Your FC-321 SD/HD-SDI to HDMI Converter/Switcher Connecting the FC-321 Technical Specifications Figures Figure 1: FC-321 SD/HD-SDI to HDMI Converter/Switcher Figure 2: Connecting the FC-321 SD/HD-SDI to HDMI Converter/Switcher Tables Table 1: FC-321 SD/HD-SDI to HDMI Converter/Switcher Features Table 2: Technical Specifications of the FC-321... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Quick Start This quick start chart summarizes the basic setup and operation steps. Overview The FC-321 SD/HD-SDI to HDMI Converter/Switcher is a high-performance format converter for SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M) signals. It converts one... -
Page 5: About Hdmi
It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee . In particular, HDMI Provides a simple... -
Page 6: Recommendations For Best Performance

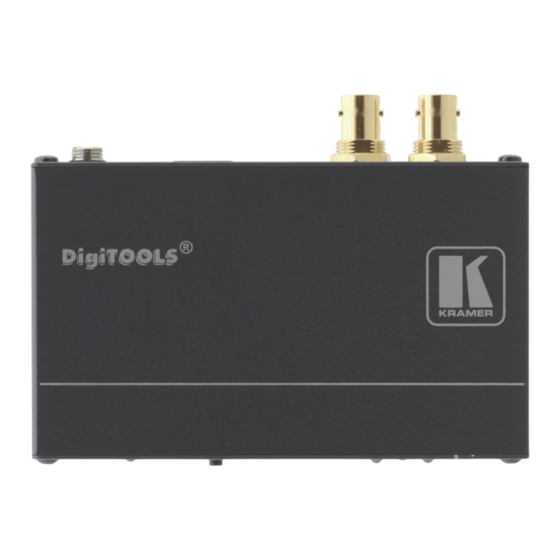

– Disconnect power and unplug unit from wall before installing or removing device or servicing unit. Your FC-321 SD/HD-SDI to HDMI Converter/Switcher Figure 1 and Table 1 define the FC-321 SD/HD-SDI to HDMI Converter/Switcher: 1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com... -
Page 7: Figure 1: Fc-321 Sd/Hd-Sdi To Hdmi Converter/Switcher
Your FC-321 SD/HD-SDI to HDMI Converter/Switcher Figure 1: FC-321 SD/HD-SDI to HDMI Converter/Switcher... -
Page 8: Connecting The Fc-321
(not illustrated in Figure 2). 1 Switch OFF the power on each device before connecting it to your FC-321. After connecting your FC-321, switch on its power and then switch on the power on each device 2 SDI audio is made up of 16 channels of audio information or 8 stereo pairs. -
Page 9: Figure 2: Connecting The Fc-321 Sd/Hd-Sdi To Hdmi Converter/Switcher
Connecting the FC-321 Figure 2: Connecting the FC-321 SD/HD-SDI to HDMI Converter/Switcher... -
Page 10: Technical Specifications
Technical Specifications Technical Specifications The FC-321 technical specifications are shown in Table 2: Table 2: Technical Specifications of the FC-321 INPUTS: 2 SD/HD-SDI, 3G HD-SDI on a BNC connector OUTPUT: 1 HDMI connector MAX DATA RATE: Up to 3Gbps STANDARD COMPLIANCE: HDMI 1.3... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
