- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: FC-31 UXGA to DVI Converter...
-
Page 2: Table Of Contents
Table 1: FC-31 UXGA to DVI Converter Features Table 2: Dipswitch Definitions Table 3: (Vs) Vertical Positioning Dipswitch Settings Table 4: (Hs) Horizontal Positioning Dipswitch Settings Table 5: Sharpness Dipswitch Settings Table 6: Technical Specifications of the FC-31 UXGA to DVI Converter Contents... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 4 For example: model number AD2512C, part number 2535-000251 Introduction –... -
Page 4: Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview

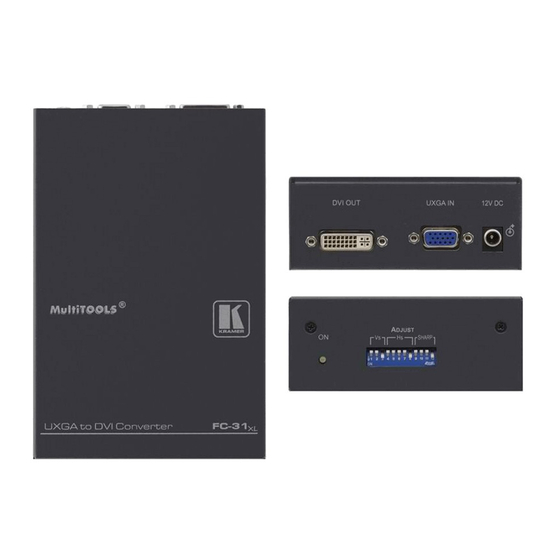

Overview The Kramer MultiTOOLS® FC-31 UXGA to DVI Converter is a high quality converter for converting an analog computer graphics signal on an HD15 connector to a digital DVI-D signal. In particular, the FC-31: Includes dipswitches that let you adjust the horizontal position, the... -
Page 6: Dipswitch Settings
Your FC-31 UXGA to DVI Converter Table 1: FC-31 UXGA to DVI Converter Features Feature 12V DC UXGA IN HD15 Connector DVI OUT Connector ON LED ADJUST Dipswitches 4.1 Dipswitch Settings Figure 2 and Table 2 define the dipswitches: Figure 2: Dipswitch Definitions... -
Page 7: Table 4: (Hs) Horizontal Positioning Dipswitch Settings
Your FC-31 UXGA to DVI Converter To adjust the horizontal position of the image, set the dipswitches as required, according to Table 4: Table 4: (Hs) Horizontal Positioning Dipswitch Settings In this state: Shift Left OFF OFF OFF OFF OFF... -
Page 8: Table 5: Sharpness Dipswitch Settings
Your FC-31 UXGA to DVI Converter To sharpen the image, adjust the dipswitches, as defined in Table 5: Table 5: Sharpness Dipswitch Settings DIP 9 DIP 11 DIP 10 DIP 12 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Connecting The Fc-31 Uxga To Dvi Converter
Figure 3: Connecting the FC-31 UXGA to DVI Converter 1 Switch OFF the power on each device before connecting it to your FC-31. After powering up your FC-31, switch on the power on each device... -
Page 10: Technical Specifications
Power supply 1 Specifications are subject to change without notice 2 On a DVI-I connector. Note that only the digital signal (DVI-D) is available on the DVI connector Technical Specifications of the FC-31 UXGA to DVI Converter KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
