Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: FC-332 SD/HD-SDI to HDMI Converter/DA... -
Page 2: Table Of Contents
Connecting the FC-332 Technical Specifications Figures Figure 1: FC-332 SD/HD-SDI to HDMI Converter/DA Figure 2: Connecting the FC-332 SD/HD-SDI to HDMI Converter/DA Tables Table 1: FC-332 SD/HD-SDI to HDMI Converter/DA Features Table 2: Technical Specifications of the FC-332 SD/HD-SDI to HDMI Converter/DA... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Overview
Overview Overview The FC-332 SD/HD-SDI to HDMI Converter/DA is a high-performance format converter for SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M) signals. It converts an SDI audio and video signal to two HDMI output signals with the same resolution and frame... -
Page 5: About Hdmi
It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. In particular, HDMI • Provides a simple... -
Page 6: Recommendations For Best Performance
– Disconnect power and unplug unit from wall before installing or removing device or servicing unit. Your FC-332 SD/HD-SDI to HDMI Converter/DA Figure 1 and Table 1 define the FC-332 SD/HD-SDI to HDMI Converter/DA: 1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com... -
Page 7: Figure 1: Fc-332 Sd/Hd-Sdi To Hdmi Converter/Da

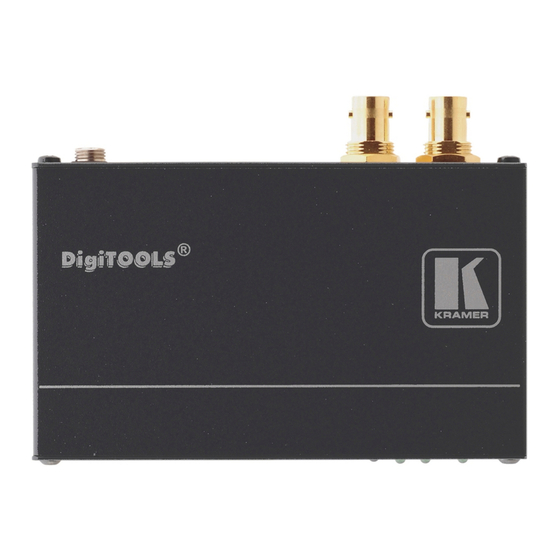

Your FC-332 SD/HD-SDI to HDMI Converter/DA Figure 1: FC-332 SD/HD-SDI to HDMI Converter/DA Table 1: FC-332 SD/HD-SDI to HDMI Converter/DA Features Feature Function SD/HD-SDI IN BNC Connector Connects to an SD-SDI or HD-SDI source SD/HD-SDI LOOP BNC Connector Connects to an SD-SDI or HD-SDI acceptor... -
Page 8: Connecting The Fc-332
(not illustrated in Figure 2). 1 Switch OFF the power on each device before connecting it to your FC-332. After connecting your FC-332, switch on its power and then switch on the power on each device 2 SDI audio is made up of 16 channels of audio information or 8 stereo pairs. -
Page 9: Technical Specifications
1 SD/HD-SDI 3G HD-SDI loop on a BNC connector, equalized and reclocked 2 HDMI connectors MAX DATA RATE: Up to 3Gbps EQUALIZATION AND SDI: over 350m, 3G: over 100m (using the Kramer BC-1X cable) RECLOCKING: STANDARD COMPLIANCE: HDMI INDICATOR LEDS:... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
