- Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Model: FC-331 SD/HD-SDI to HDMI Converter...
-
Page 2: Table Of Contents
Connecting the FC-331 SD/HD-SDI to HDMI Converter Technical Specifications Figures Figure 1: FC-331 SD/HD-SDI to HDMI Converter Figure 2: Connecting the FC-331 SD/HD-SDI to HDMI Converter Tables Table 1: FC-331 SD/HD-SDI to HDMI Converter Features Table 2: Technical Specifications of the FC-331 SD/HD-SDI to HDMI Converter... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
This quick start chart summarizes the basic setup and operation steps. Overview The FC-331 SD/HD-SDI to HDMI Converter is a high-performance format converter for SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M) signals. It converts an SDI audio and video signal... -
Page 5: About Hdmi
It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. In particular, HDMI • Provides a simple... -
Page 6: Recommendations For Best Performance
Your FC-331 SD/HD-SDI to HDMI Converter Figure 1 and Table 1 define the FC-331 SD/HD-SDI to HDMI Converter: 1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com 2 For example, part number 2535-052002... -
Page 7: Figure 1: Fc-331 Sd/Hd-Sdi To Hdmi Converter

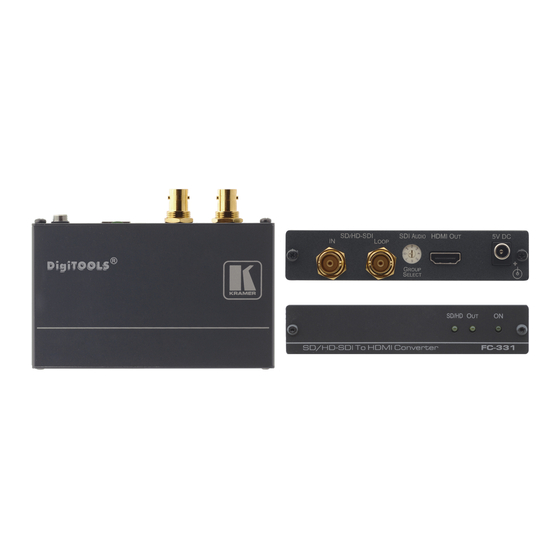

Your FC-331 SD/HD-SDI to HDMI Converter Figure 1: FC-331 SD/HD-SDI to HDMI Converter Table 1: FC-331 SD/HD-SDI to HDMI Converter Features Feature Function SD/HD-SDI IN BNC Connector Connects to an SD or HD-SDI source SD/HD-SDI LOOP BNC Connector Connects to an SD or HD-SDI acceptor... -
Page 8: Connecting The Fc-331 Sd/Hd-Sdi To Hdmi Converter
Figure 2: Connecting the FC-331 SD/HD-SDI to HDMI Converter 1 Switch OFF the power on each device before connecting it to your FC-331. After connecting your FC-331, switch on its power and then switch on the power on each device 2 SDI audio is made up of 16 channels of audio information or 8 stereo pairs. -
Page 9: Technical Specifications
Technical Specifications Technical Specifications The FC-331 technical specifications are shown in Table 2: Table 2: Technical Specifications of the FC-331 SD/HD-SDI to HDMI Converter INPUT: 1 SD/HD-SDI, 3G HD-SDI on a BNC connector OUTPUTS: 1 SD/HD-SDI, 3G HD-SDI loop on a BNC connector, 1 HDMI connector... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
