Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODELS: FC-321 SD/HD-SDI to HDMI Converter/Switcher P/N: 2900-000525 Rev 3... -
Page 3: Table Of Contents
Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the FC-321 Connecting the FC-321 Technical Specifications Figures Figure 1: FC-321 SD/HD-SDI to HDMI Converter/Switcher Figure 2: Connecting the FC-321 Dual SD/HD-SDI to HDMI Converter/Switcher FC-321 / FC-321 - Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer FC-321 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The FC-321 SD/HD-SDI to HDMI Converter/Switcher is a high performance format converter for SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD SDI (SMPTE 424M) signals. It converts one of two SDI video and audio signals to an HDMI output signal with the same resolution and frame rate (no scaling is performed). -
Page 8: Defining The Fc-321

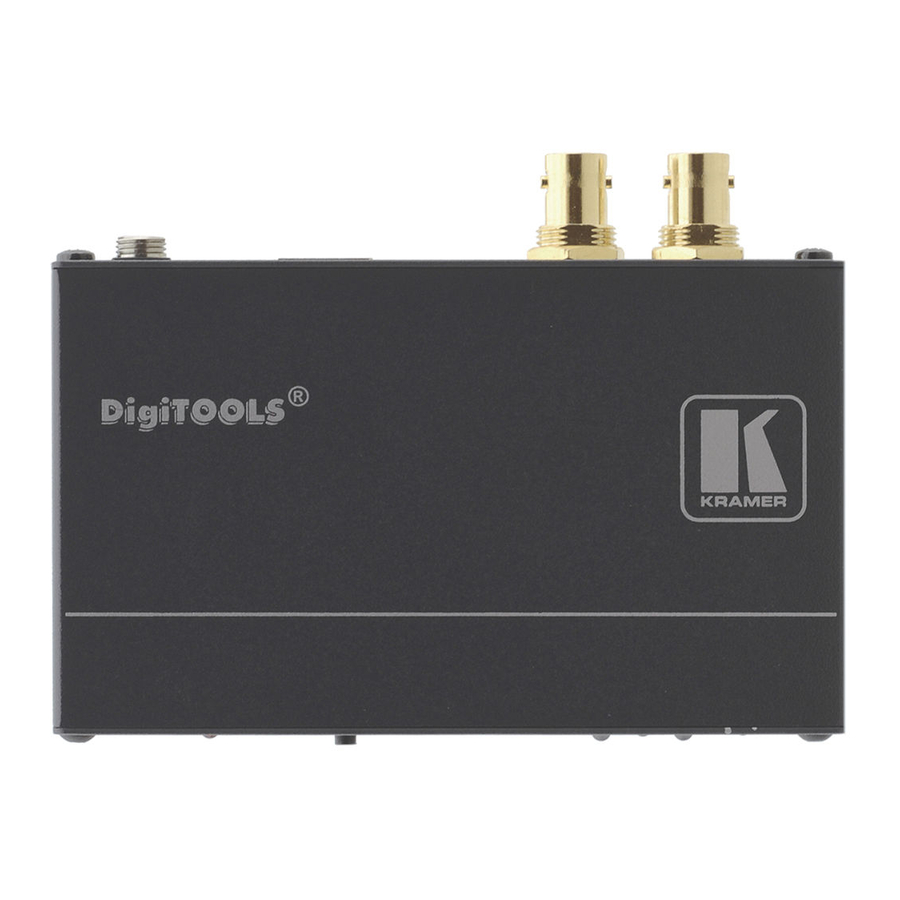

Defining the FC-321 Figure 1 defines the FC-321 SD/HD-SDI to HDMI Converter/Switcher. Figure 1: FC-321 SD/HD-SDI to HDMI Converter/Switcher FC-321 - Defining the FC-321... - Page 9 Illuminates green to indicate that the display is connected SDI 2 IN LED Illuminates green for an SD input signal and blue for an HD input signal on HD-SDI 2 ON LED Illuminates green when receiving power FC-321 - Defining the FC-321...
-
Page 10: Connecting The Fc-321
This section explains how to connect the FC-321. Always switch off the power to each device before connecting it to your FC-321. After connecting your FC-321, connect its power and then switch on the power to each device. To connect the FC-321, as illustrated in the example in... -
Page 11: Figure 2: Connecting The Fc-321 Dual Sd/Hd-Sdi To Hdmi Converter/Switcher
Figure 2: Connecting the FC-321 Dual SD/HD-SDI to HDMI Converter/Switcher FC-321 - Connecting the FC-321... -
Page 12: Technical Specifications
10% to 90%, RHL non-condensing DIMENSIONS 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H WEIGHT: 0.3kg (0.7lbs) ACCESSORIES: Power supply OPTIONS: 19” rack mount adapter Specifications are subject to change without notice at http://www.kramerelectronics.com FC-321 - Technical Specifications... - Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
