- Page 1 ANUAL AND HEARING HELPER Wireless FM Listening System Models PFM 350, PFM 300, PFM 350E RCH, & PFM 300E RCH Transmitter Model PFM T32 Optional Receiver Models PFM R32, R31 MAN 072I UIDE Personal FM System ™...
-
Page 2: Warranty
™ EARING ELPER ERSONAL PFM 350, PFM 300, PFM 350E RCH, PFM 300E RCH ODELS NSTALLATION UIDE Contents YSTEM VERVIEW YSTEM OMPONENTS AFETY NFORMATION ECYCLING NSTRUCTIONS PERATING NSTRUCTIONS PFM T32 TRANSMITTER PFM R32 R ECEIVER PFM R31 R ECEIVER ATTERY... -
Page 3: System Overview
To avoid difficulties, please read through these instructions as you begin to use the system. Then save them for questions that arise as you continue to use your Williams Sound Personal FM System. If you have problems with the PFM system, don’t hesitate to call us toll-free at 1-800-843-3544. -

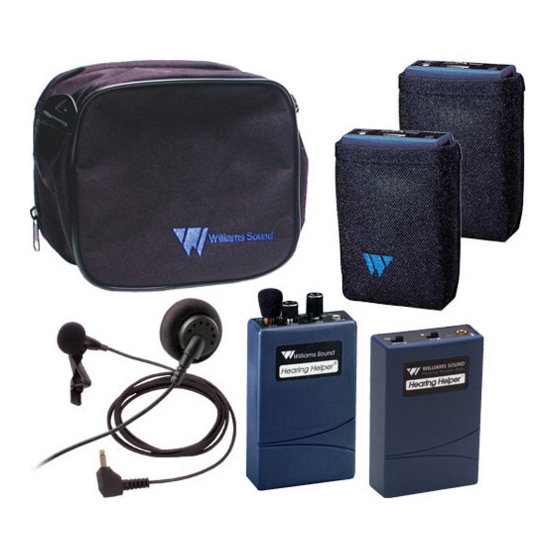

Page 4: System Components
2: S IGURE YSTEM OMPONENTS Williams Sound Williams Sound ® Hearing Helper ® Hearing Helper T32 Transmitter (PFM 300 & 350 Systems) Williams Sound Williams Sound Williams Sound Williams Sound ® Hearing Helper Hearing Helper ® Hearing Helper Hearing Helper... -
Page 5: Safety Information
Product Recycling for Customers in the European Union: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to a electronics recycling center; OR return the product to the factory for proper disposal. - Page 6 PFM T32 T SING 1. Install two (2) AA batteries. If you’re using rechargeable batteries, they must be charged before using. See battery information on page 13. 2. Plug the microphone cord into the “Mic” jack on top of the transmitter. 3: T32 T IGURE 3.
- Page 7 PFM T32 F HANGING THE . 5: PFM T32 F REQUENCY By default, the T32’s frequency is to set 72.9 MHz (Channel E). If you experience FM interference, or if you need to match a receiver’s frequency, it may be necessary to adjust the frequency on the T32. Instructions: 1.
- Page 8 DVANCED EATURES ON THE Gain Control Adjustment If necessary, the microphone gain control on the T32 can be increased or decreased to meet the demands of specific listening applications. Instructions: 1. Open the battery compartment using a coin in the slot in the bottom of the transmitter.
- Page 9 For best reception, the cord should hang as straight as possible. Make sure the Receiver is turned OFF when not in use. The channel selector can be used to switch between an individual and a group channel. (PFM 300 & PFM 300E RCH): ECEIVER & C...
- Page 10 PFM R31 R SING Receiver model PFM R31 has two volume control knobs (one for the FM signal, one for environmental sounds), a microphone input jack, and an earphone output jack. 1. Make sure there are two charged AA batteries in the Receiver. If batteries are not installed, see Battery Information on page 13.
- Page 11 Notes: The earphone cord is the receiving antenna. Do not bunch up the cord or wrap it around the receiver. For best reception, the cord should hang as straight as possible. Make sure the Receiver is turned OFF when not in use. The channel selector can be used to switch between an individual and a group channel. Adjusting The R31 Volume Controls 1.
- Page 12 PFM R32 & R31 R UNING THE Tuning for the R32 and R31 Receivers is determined by tuning coils, and is stabilized by phase- locked-loop circuitry. A plastic tuning wrench (PLT 005) is needed to adjust the receiver tuning coil. 1.
-
Page 13: Important Warnings
Note: The battery installed in the receiver may be recharged in the receiver only if it is a NiMH battery, and only if the Williams Sound CHG 200A charger is used. Damage from improper charging is not covered by the Williams Sound five year warranty. For charging directions, see figure 13. -
Page 14: Further Suggestions
The batteries may heat up and burst, causing possible injury and damage to the equipment. Avoid shorting the plus and minus battery terminals together with metal objects. Battery damage and burns can result! Use only Williams Sound supplied chargers and batteries. CHG 200A B PTIONAL... -
Page 15: Using Your Personal Fm System With A Hearing Aid
SING ERSONAL If you have a hearing aid equipped with a Telecoil (T-Switch), you can use a Neckloop (NKL 003–children’s size, or NKL 001–adult’s size) to magnetically couple the signal from the PFM Receiver into your hearing aid. The Neckloop plugs into the earphone jack of the receiver. Turn the switch to the “T” position on your hearing aid and adjust the volume control on the receiver to a comfortable level. - Page 16 10. If you are still hearing interference on the Receivers, turn the Transmitter off and listen with a receiver. If you hear the interference with the Transmitter off, you need to change to a clear channel. See the re-tuning instructions. 11. If problems remain, contact your dealer for further help. Or call Williams Sound toll-free at 1-800-843-3544.
-
Page 17: Limited Warranty
Limited Warranty Williams Sound products are engineered, designed, and manufactured under carefully controlled condi- tions to provide you with many years of reliable service. Williams Sound warrants the Hearing Helper ® Personal FM System against defects in materials and workmanship for FIVE (5) years. During the first five years from the purchase date, we will promptly repair or replace the Hearing Helper ®... -
Page 18: T Echnical S Pecifications
Specifications are electrical performance FCC, WEEE 5 years, parts and labor (90 days on accessories) 3.5 mm mono phone jack, supplies positive DC for Williams Sound electret mics Plug mount electret, omnidirectional, with windscreen, 3.5mm mono phone plug (MIC 014) Rotary control... -
Page 19: Specifications
COUSTIC PECIFICATIONS ANSI 2.44 T FM Response (PFM R31, R32) Input: 80 dB random noise Device: KEMAR mannequin with BTK 3550 Tester 80.0 dB 80 db Main Y: 100 Hz + 8 OCT LOG Main X: Environmental Mic Response (PFM R31 Only) Input: 80 dB random noise... - Page 20 © 2007, Williams Sound Corp. MAN 072I...
