R863
Hearing Helper

Operating Instructions

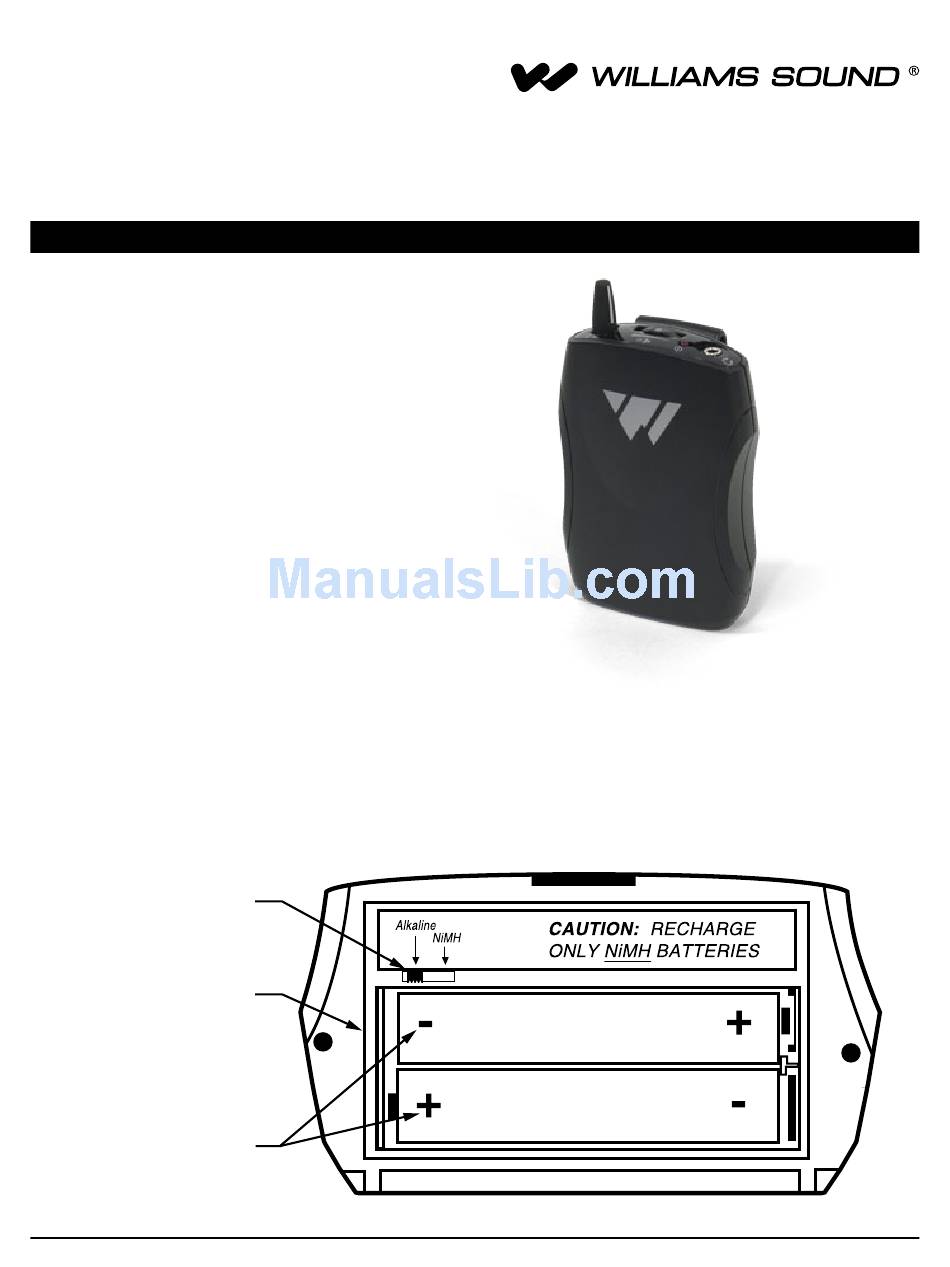

1. Install AA batteries: Open the battery
compartment by lifting the tab on the
back of the receiver with your finger. To
remove depleted batteries, pull up on
the fabric strip.
IMPORTANT: If Alkaline (non-rechargeable) batteries are being installed, slide the battery
selection switch in the battery compartment to the "Alkaline" position. See figure 1.
If installing NiMH (or rechargeable) batteries, slide the battery selection switch to the
"NiMH" position.
Figure 1: Battery selection switch
BATTERY SELECTION
SWITCH
BATTERY
COMPARTMENT
NOTE PROPER
POLARITY
FM Receiver
®
Instructions For Use and Care
A241
MAN 137F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R863 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Williams Sound R863

Summary of Contents for Williams Sound R863

  • Page 1: Operating Instructions

    R863 Hearing Helper FM Receiver ® Instructions For Use and Care Operating Instructions 1. Install AA batteries: Open the battery compartment by lifting the tab on the back of the receiver with your finger. To remove depleted batteries, pull up on the fabric strip.
  • Page 2 The receiver can be placed in a pocket, or clipped onto a belt, harness, or waistband. IMPORTANT: when the R863 receiver is not being used, remember to turn the unit OFF by turning the On/Off/Channel switch to the “ ” power icon position. The Power “ON” LED indicator should not be lit.

  • Page 3: Belt Clip Installation

    Williams Sound at 800-843-3544. Belt Clip Installation To Install: Position the belt clip on the rear of the R863 receiver as shown below. Turn the belt clip 180˚ left or right as shown. The belt clip is now installed and ready for use.

  • Page 4: Safety Information

    Product Recycling: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center or return the product to the factory for proper disposal.

  • Page 5: System Specifications

    System Specifications R863 Receiver Dimensions: 115 mm H x 72 mm W x 30 mm T (4.5” H x 2.85 W x 1.2” T) Weight: 85 grams (3 oz.), no batteries Color: Black Material: ABS/Polycarbonate, shatter-resistant Battery Type: Two (2) AA 1.5 V Non-rechargeable Alkaline batteries (BAT 001), 50 mA nominal current drain, 40 hours approx.

  • Page 6: Limited Warranty

    Williams Sound products are engineered, designed and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the R863 Receiver against defects in materials and workmanship for THREE (3) years. During the first three years from the purchase date, we will promptly repair or replace the R863 Receiver.
