- Page 1 ® anual and uide ™ ersonal uide ysTeM Wireless, Portable FM Listening System Transmitter Model PPA T36 Optional Receiver Models PPA R35, PPA R35-8 MAN 145A...
-
Page 2: Table Of Contents
PERSONAL PA™ FM T uidE ySTEM TGS PRO 720, TGS PRO MuLTi OdELS & u ANuAL uidE ONTENTS System Components System Overview Safety Information Recycling Instructions Operating Instructions PPA T36 Transmitter PPA R35 Receiver PPA R35-8 Receiver Belt Clip Removal/Installation Battery Information Optional Battery Chargers Hints for Using the System... -
Page 3: System Components

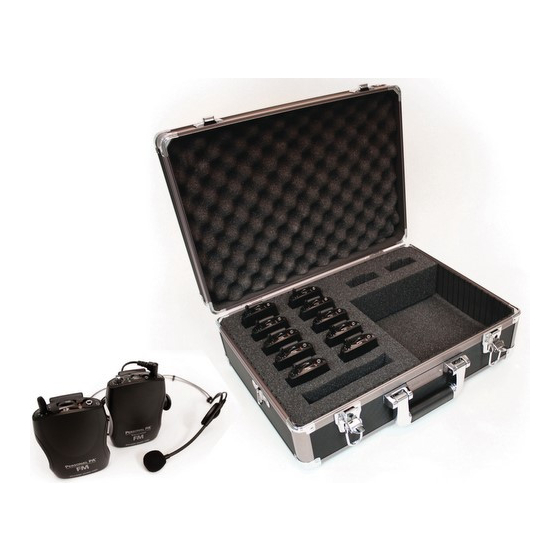

ySTEM OMPONENTS Body Pack Transmitter (PPA T36) with (2) AA batteries (BAT 001) Noise-cancelling headband microphone (MIC 096) (10) Receivers (PPA R35 or R35-8) w/batteries (BAT 001) Instruction manual (MAN 145) System carry case (CCS 030 S) ySTEM vERviEw The Personal PA™ Tour Guide System is a portable, high-performance, wireless listening system. -
Page 4: Safety Information
Help Williams Sound protect the environment! Please take the time to dispose of your equip- ment properly. Product Recycling Instructions: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center;... -
Page 5: Ppa T36 Transmitter
T36 T SiNG THE RANSMiTTER 1. Make sure there are two alkaline or rechargeable AA batteries in the transmitter. If batter- ies are not installed, see Battery Information on page 11. 2. Plug the microphone cord into the “Mic Jack” on top of the transmitter (FIG. 2). FiG 2: T36 T Auxiliary Power On/Off/Mute... - Page 6 T36 T SiNG THE RANSMiTTER CONT ONTROL The gain control can be used to adjust the volume level on both the microphone and auxiliary input. To adjust the volume level, open the battery door and locate the Gain Control (FIG. 4). Use the sup- plied plastic screwdriver and rotate to increase “+”...
- Page 7 NOTE: Check to make sure the T36 transmitter is on and transmitting audio. Also, make sure the T36 is transmitting on the same frequency as the receiver. If the R35 receiver needs to be re-tuned (most Williams Sound receivers are set at the factory at 75.7 MHz), see page 8 for frequency change instructions.
-
Page 8: Ppa R35 Receiver
PPA R35 R ECEivER REquENCy HANGE NSTRuCTiONS Selecting a frequency for the R35 receiver requires an adjustment to the internal tuning coil (FIG 6.). Use a plastic tuning wrench (PLT 005) to adjust the tuning coil. FiG 6: R35 T uNiNG Most R35 single channel Receivers are set at the factory to 75.7 MHz (when delivered with tour guide system). -
Page 9: Ppa R35-8 Receiver
If stereo headphones are used, sound will be heard only in one side. Williams Sound evaluates each earphone and headphone used with the PPA R35-8 receiver; we can only assure optimum performance when Williams Sound earphones and headphones are used. -
Page 10: Belt Clip Removal/Installation
EMOvAL NSTALLATiON NSTALL Position the belt clip on the rear of the transmitter or receiver unit as shown in FIG. 9A. Turn the belt clip 180º left or right as shown in FIG. 9B. The belt clip is now installed and ready for use. -
Page 11: Battery Information
ATTERy NFORMATiON NSTALLATiON EMOvAL Open the battery compartment by lifting the tab on the back of the transmitter or receiver with your finger. To remove depleted batteries, pull up on the fabric strip. IMPORTANT: If alkaline (non-rechargeable) batteries are being installed, slide the battery selection switch in the battery compartment to the “alkaline”... -
Page 12: Optional Battery Chargers
PTiONAL ATTERy HARGERS : 11A: CHG 3512 / 3512 PRO M uLTi HARGER : 11B: CHG 3502 d HARGER CHG 3502 Rear View Charging Receiver or Transmitter LED Indicator AC Power Connection For more information on available chargers, visit www.williamssound.com or call +1 952 943 2252. ®... -
Page 13: Hints For Using The System
iPS FOR SiNG THE ySTEM The maximum operating distance between the transmitter and receiver is about 46 meters (150 feet). The operating range will vary in different buildings and surroundings. In some locations, the signal may momentarily disappear. This is called a “drop-out” and is due to reflection and cancellation of the radio signal. -
Page 14: In Case Of Difficulty
7. If you are still hearing interference on the receivers, turn the transmitter off and listen with a receiver. If you hear the interference with the transmitter off, you need to change to a clear channel (see pages 8-9). Call your Williams Sound representative at 1-800-843- 3544 or +1 952 943 2252 for details. -
Page 15: Warranty
ARRANTy Williams Sound products are engineered, designed, and manufactured under carefully con- trolled conditions to provide you with many years of reliable service. Williams Sound war- rants the Personal PA™ Tour Guide System against defects in materials and workmanship for FIVE (5) years. -
Page 16: System Specifications
ySTEM PECiFiCATiONS PPA T36 RANSMiTTER OdEL Dimensions: 4.1” L x 2.8” W x 1.1” H (104 mm x 71 mm x 28 mm) Weight: 2.9 oz (82 g), no batteries Color: Black, shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx. - Page 17 PPA R35-8 ECEivER OdEL Dimensions: 4.5” H x 2.8 W x 1.1” D (115 mm x 71 mm x 28 mm) Weight: 4.6 oz (130 g) w/ batteries Color: Black Battery Type: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs. battery life; or Two (2) AA rechargeable NiMH batteries (BAT 026), 1600 mAh, approx.
- Page 18 ®...
- Page 19 ®...
- Page 20 ® 10321 West 70th St., Eden Prairie, MN 55344 U.S.A. 800.843.3544 | 952.943.2252 | FAX: 952.943.2174 www.williamssound.com ©2008 Williams Sound Corp. MAN 145A...
