R863
Hearing Helper
FM Receiver
™
FM
Tours • Language Interpretation • Hearing Assistance

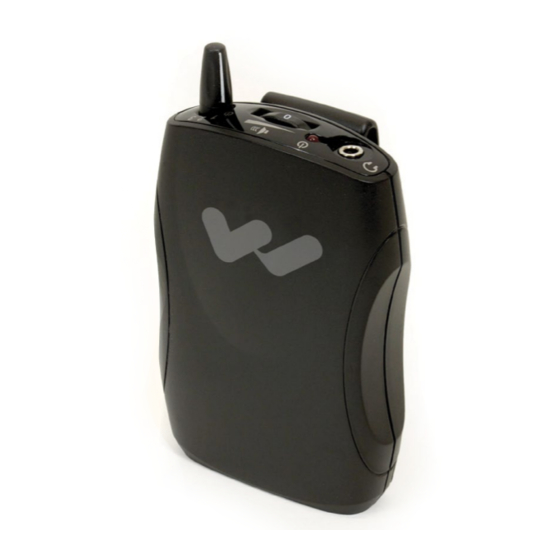

The R863 is a portable, body-pack style FM receiver with user-
selectable operating frequencies of 863.25 MHz, 863.75 MHz,
or 864.75 MHz. The R863 receiver will operate up to 30 meters
(98 feet) when used with the Williams Sound T863 transmitter
122 meters (400ft) when used with the Williams Sound T800
transmitter. The receiver is showcased in a black, ergonomic,
impact-resistant case, and is belt-clip equipped for hands-
free operation. Controls include an adjustable volume control,
integrated on/off/channel switch, and power ON indicator LED.
Drop-in charging points allow up to 12 receivers to be charged at
once in optional multi-chargers. The R863 receiver will operate on
two AA batteries for up to 40 hours, or 30 hours per charge when
used with Williams Sound rechargeable batteries. The R863 can
be equipped with a headphone, earphone, or neckloop.
SPECIFICATION DATA
Advertisement
Related Manuals for Williams Sound R863
Summary of Contents for Williams Sound R863
- Page 1 The R863 is a portable, body-pack style FM receiver with user- selectable operating frequencies of 863.25 MHz, 863.75 MHz, or 864.75 MHz. The R863 receiver will operate up to 30 meters (98 feet) when used with the Williams Sound T863 transmitter 122 meters (400ft) when used with the Williams Sound T800 transmitter.
- Page 2 Hearing Helper ™ R863 Receiver: On/Off/Channel Selector Switch "On" Indicator LED Volume Control Earphone/Headphone Jack *90 DAYS ON ACCESSORIES. NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. FM Receiver Dimensions: Weight: Color: Material: Battery Type: Operating Frequencies: Operating Range: Stability: FM Deviation:...
- Page 3 The unit shall have three user-selectable operating frequencies of 863.25 MHz for CH 1, 863.75 MHz for CH 2 and 864.75 MHz for CH 3. The R863 shall be housed in a black polycarbonate impact-resistant enclosure and feature a 3.5mm ear jack that can accept stereo or mono earphones.
