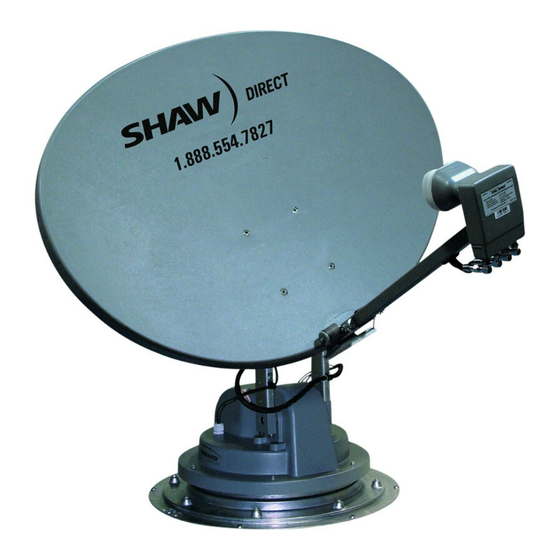

- Page 1 WINEGARD ® SK-7002 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2008 2452159 Rev. 1/10...
-
Page 2: Recommended Receivers
TRAV’LER Automatic Multi-Satellite TV Antenna will work with any SHAW ® DIRECT receiver currently in production. Consult your receiver manual or www.winegard.com if you ™ have any questions about whether your receiver is compatible. However, we recommend: SHAW DIRECT -... - Page 3 TRANSITION PLATE Mount Parallel to Center Line Winegard is NOT liable for dam- of Coach age, expenses, or injury caused by improper installation. Once you have checked for this: 1. Choose a location on the roof of the RV that will allow the dish to raise and rotate without interfer- ence from other roof mounted equipment.
- Page 4 3. The unit must be within 5° of level for best operation. 4. Make sure that the location offers enough support to attach the TRAV’LER antenna securely. 5. Find a well ventilated location with a 110 V outlet for the TRAV’LER Interface inside the vehicle. Make sure to clean the installation area before you begin.
-
Page 5: Gps Installation
For best results, use TV 1 for the receiver that will POWER SUPPLY be most active. PORTS A - E and POWER ENTRY PLATE RECEIVER RECEIVER The SK-7002 will support up to TV 1 TV 3 four receivers. RECEIVER Rev. 4/15/08 TV 2 INSTALLATION... -
Page 6: Cable Installation
Cable installation: Note: Connect the control cable and power cable to the back of the TRAV’LER Interface box as shown below. For cable runs longer than 25’ an extension may be purchased. Do not exceed 50’ of cable. FIGURE 5A Power Control Cable Attach the TRAV’LER control cable to the TRAV’LER Interface Box, as shown in Figure 5A. - Page 7 A. Press [ENTER] the TRAV’LER will return to the “Installation Menu” B. Press [POWER] the TRAV’LER will stow and turn “OFF” (Restart at Step 1). Refer to the SKA-722 Manual for instructions on how to install the Reflector and Bracket. Manual: 1.
- Page 8 WARNING: Pay attention to these Pinch Points as the antenna raises! NOTE: Pinch Points are called out both for your safety and to protect the cables. Cables will be damaged if installed incorrectly. Refer to the SKA-722 installation manual Pages 3-4 for proper cable attachment. Pinch Point FIGURE 6 FIGURE 7...
-
Page 9: Emergency Manual Stow
Appendix: Making the Right Connection with Hex Connectors Making a coaxial cable connection is critical. If you have the basic technique right you can modify it to your own personal taste. Whether you use a knife, stripping tool or diagonal cutter, the important thing is to make a good clean cut. -
Page 10: Winegard Mobile Products Limited Warranty
(to locate the nearest authorized Winegard dealer, contact Winegard Company, 3000 Kirkwood Street, Burlington, Iowa 52601, Telephone 800-288-8094 or visit www.winegard.com). Customer must provide proof of purchase with a dated sales receipt for the Winegard product to verify the product is under warranty. If the date of purchase cannot be veri- fied, the warranty period shall be considered to begin thirty (30) days after the date of manufacture. If a defect in material or workmanship is discovered, Customer may take the product to an authorized Winegard dealer for service. - Page 11 INSTALLATION...
- Page 12 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2008 2452159 Rev. 1/10...
