2 1/2" Bolt (37)–2

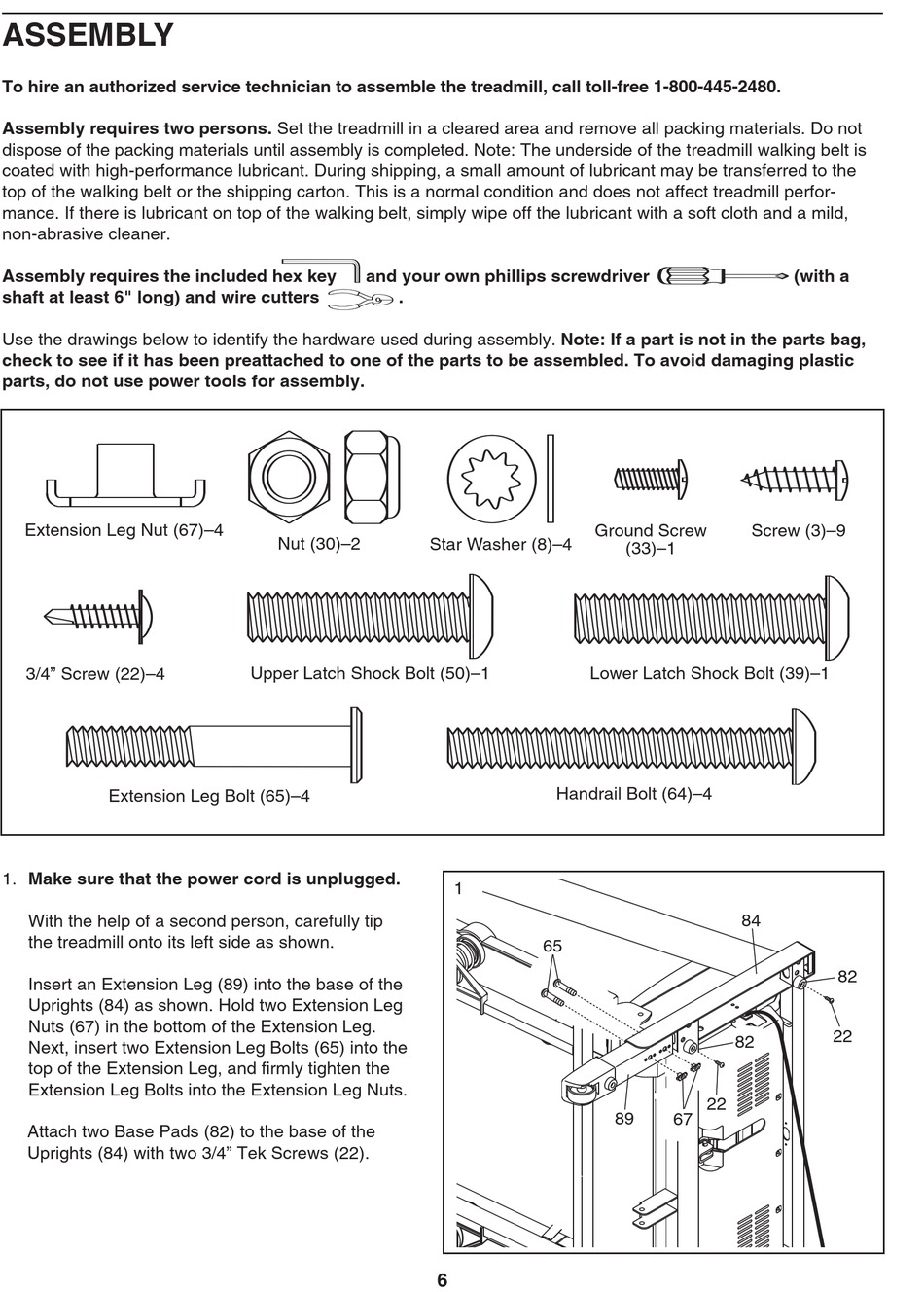

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
1" Tek Screw (83)–4
non-abrasive cleaner.
Assembly requires the included hex key
shaft at least 6" long) and wire cutters
(84)–2
Extension Leg Bolt (96)–4
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled. To avoid damaging plastic
parts, do not use power tools for assembly.
Extension Leg Nut (67)–4
3/4" Screw (22)–4
Extension Leg Bolt (65)–4
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side as shown.
Insert an Extension Leg (89) into the base of the
Uprights (84) as shown. Hold two Extension Leg
Nuts (67) in the bottom of the Extension Leg.
Next, insert two Extension Leg Bolts (65) into the
top of the Extension Leg, and firmly tighten the
Extension Leg Bolts into the Extension Leg Nuts.
Attach two Base Pads (82) to the base of the
Uprights (84) with two 3/4" Tek Screws (22).
3 1/2" Bolt (45)–4
and your own phillips screwdriver
Nut (30)–2
Upper Latch Shock Bolt (50)–1
Star Washer
(106)–4
Wheel Nut (32)–2
.
Wheel Nut (13)–2
Star Washer (8)–4
Handrail Bolt (64)–4
1
65
6
Washer (38)–4
Handrail Bolt (64)–4
Extension Leg Bolt (96)–4
Ground Screw Screw (3)–9
(33)–1
Lower Latch Shock Bolt (39)–1
84
82
22
89 67
(with a
82
22
