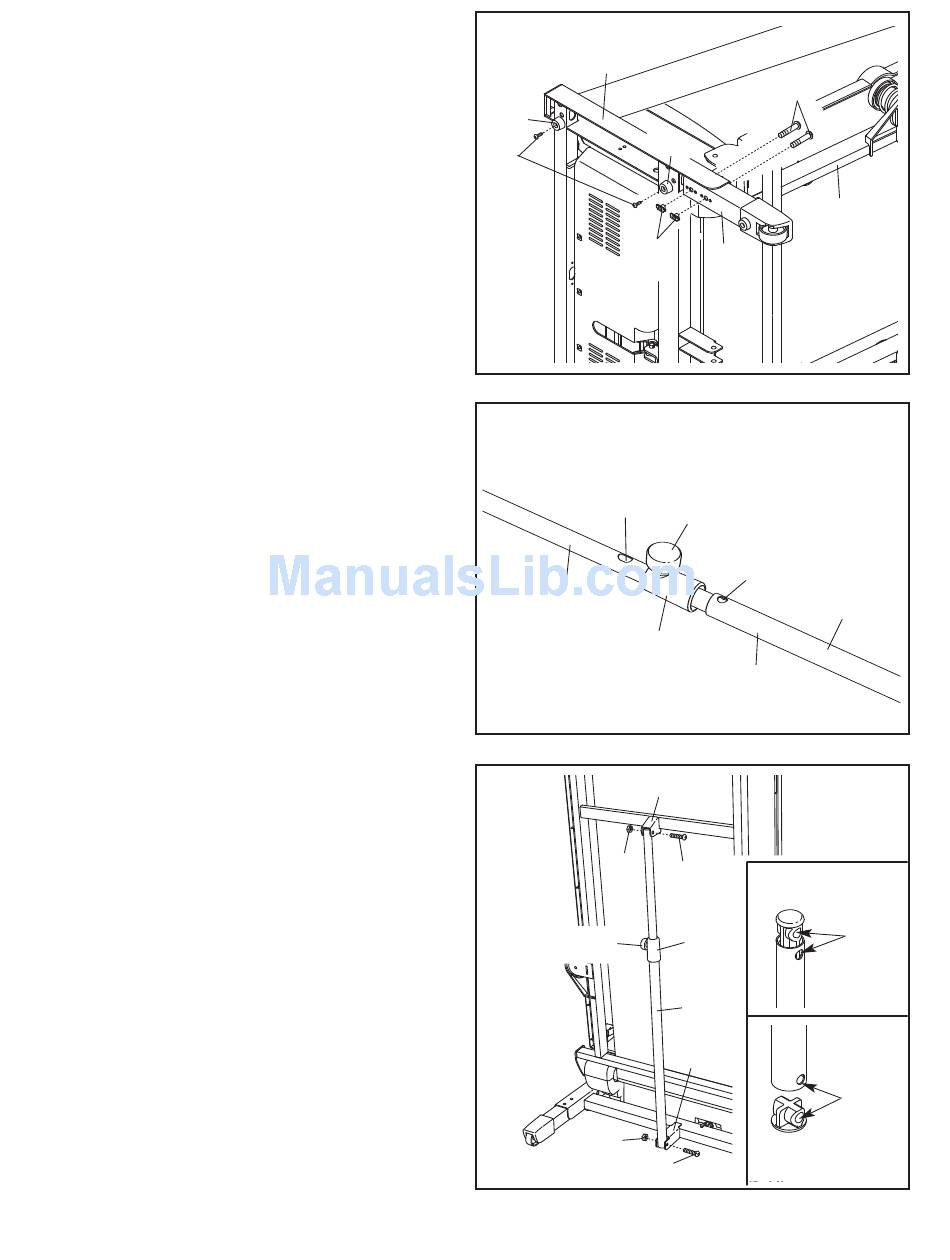

2. With the help of a second person, carefully tip

the treadmill onto its right side as shown.

Insert the other Extension Leg (89) into the base
of the Uprights (84) as shown. Hold two
Extension Leg Nuts (67) in the bottom of the
Extension Leg. Next, insert two Extension Leg
Bolts (65) into the top of the Extension Leg, and
firmly tighten the Extension Leg Bolts into the
Extension Leg Nuts.
Attach two Base Pads (82) to the base of the
Uprights (84) with two 3/4" Tek Screws (22).
With the help of a second person, carefully raise
the treadmill so that all four Base Pads (22) are
on the floor and the Frame (58) is in a vertical
position (see drawing 3).
3. Identify the Latch Assembly (29).
Make sure that the sleeve on the Latch
Assembly (29) is covering hole 1 and that the
latch knob is engaged in hole 1. If necessary,
slide the sleeve over hole 1 and engage the
latch knob into hole 1. Then, pull the sleeve to
make sure that it is locked in place.
Next, make sure that the latch knob is also en-
gaged in hole 2. If it is not, pull out the tube until
you see hole 2, and then slide the tube back into
the large barrel until the latch knob engages
hole 2.
4. Remove the plastic ties from the ends of the
Latch Shock (29).
Orient the Latch Shock (29) so that the large
barrel and the latch knob are positioned as
shown; make sure that all of the holes are
aligned (see the inset drawings). Attach the
lower end of the Latch Shock to the bracket on
the Upright (84) with the Lower Latch Shock Bolt
(39) and a Nut (30).
Then, attach the upper end of the Latch Shock
(29) to the bracket on the Frame (58) with the
Upper Latch Shock Bolt (50) and a Nut (30).
Note: It may be necessary to move the Frame
back and forth to align the Latch Shock with the
Bracket.
