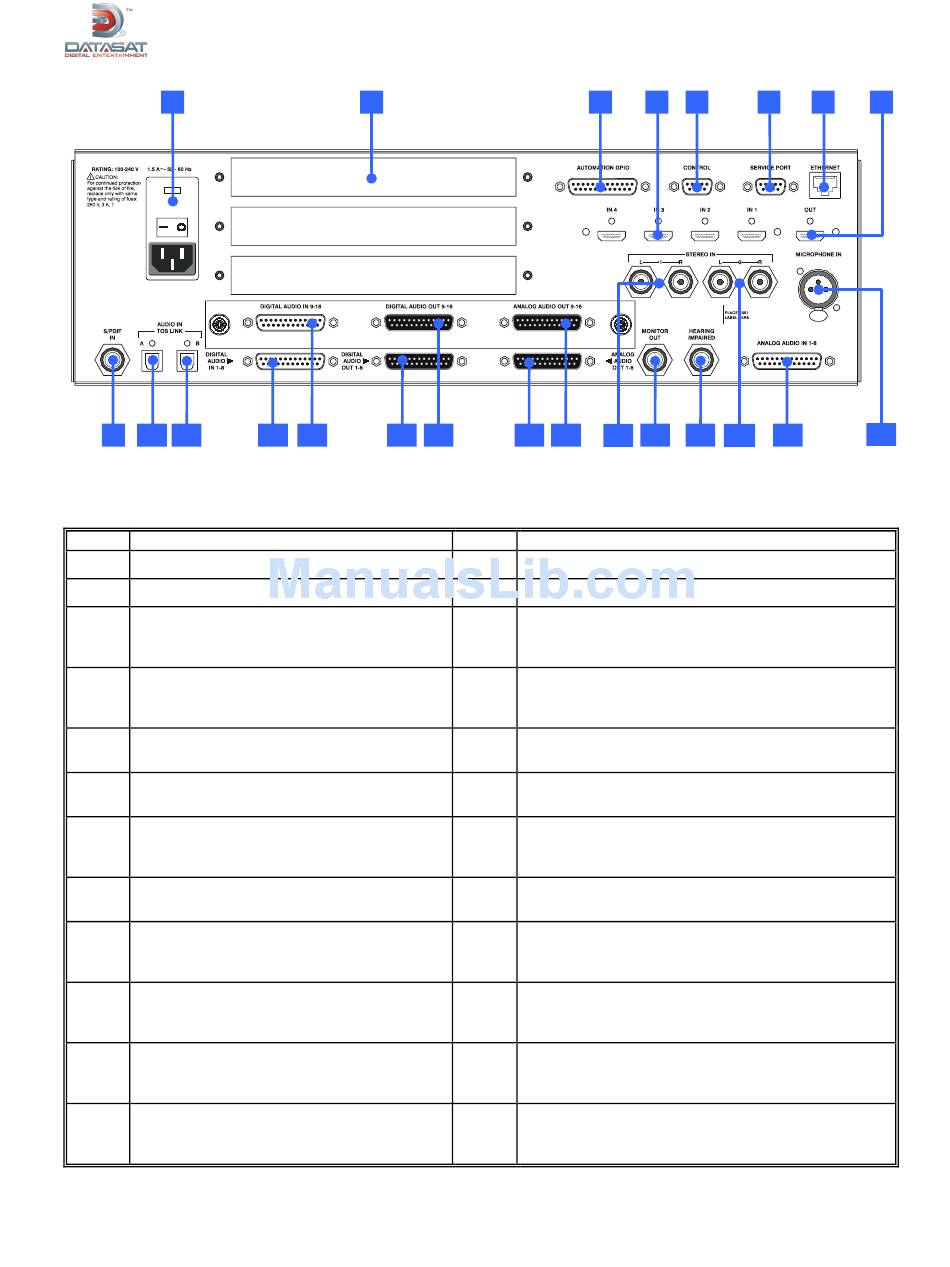

Figure 11. AP20 Rear Panel
Table 4. AP20 Rear Panel Connections
ITEM DESCRIPTION
1 Power Entry Module/Power Switch
2 Option Card Slots (3)
3 Automation GPIO – DB25F (sends/receives
pulses to/from automation system)
4 HDMI In (4)
5 Control (RS232) – DB9F (serial automation
control)
6 Service Port (RS232)– DB9F (used for
production tests)
7 Ethernet – RJ45F (Network connection for
VNC and software updates when connected to
the internet)
8 HDMI Out (1)
9 S/PDIF In - RCA Female (connect a DVD
player or play station, etc. in a home theater
environment)
10
Audio In (A) – Optical TOS Link (connect a
DVD player or play station, etc. in a home
theater environment)
11 Audio In (B) – Optical TOS Link(connect a
DVD player or play station, etc. in a home
theater environment)
AP20 Installation & Operating Guide
AP20 Installation and Operating Guide
2
12 13 14 15
3
16 17 18
ITEM DESCRIPTION
12 Digital Audio In (CH 1 – 8) – DB25F
13 Digital Audio In (CH 9 – 16) – DB25F
14 Digital Audio Out (CH 1 – 8) – DB25M (for use in
environments with amplifiers that can handle digital out
– see note below this table)
15 Digital Audio Out (CH 9 – 16) – DB25M (for use in
environments with amplifiers that can handle digital out
– see note below this table)
16 Analog Audio Out (CH 1 – 8) – DB25M (connect to
amplifiers)
17 Analog Audio Out (CH 9 – 16) – DB25M (connect to
amplifiers)
18 Stereo Input 1 – RCA (could be used for pre-show,
intermission music, etc.)
19 Monitor Out – RCA (connect to externally-powered
amplified speaker in projection booth)
20 Hearing Impaired Audio Out – RCA
21
Stereo Input 2 – RCA same as 18
22 Analog Audio In – DB25F
23 Microphone In – XLR F (connect microphone for
auditorium audio output tuning during setup or for public
address announcements)
