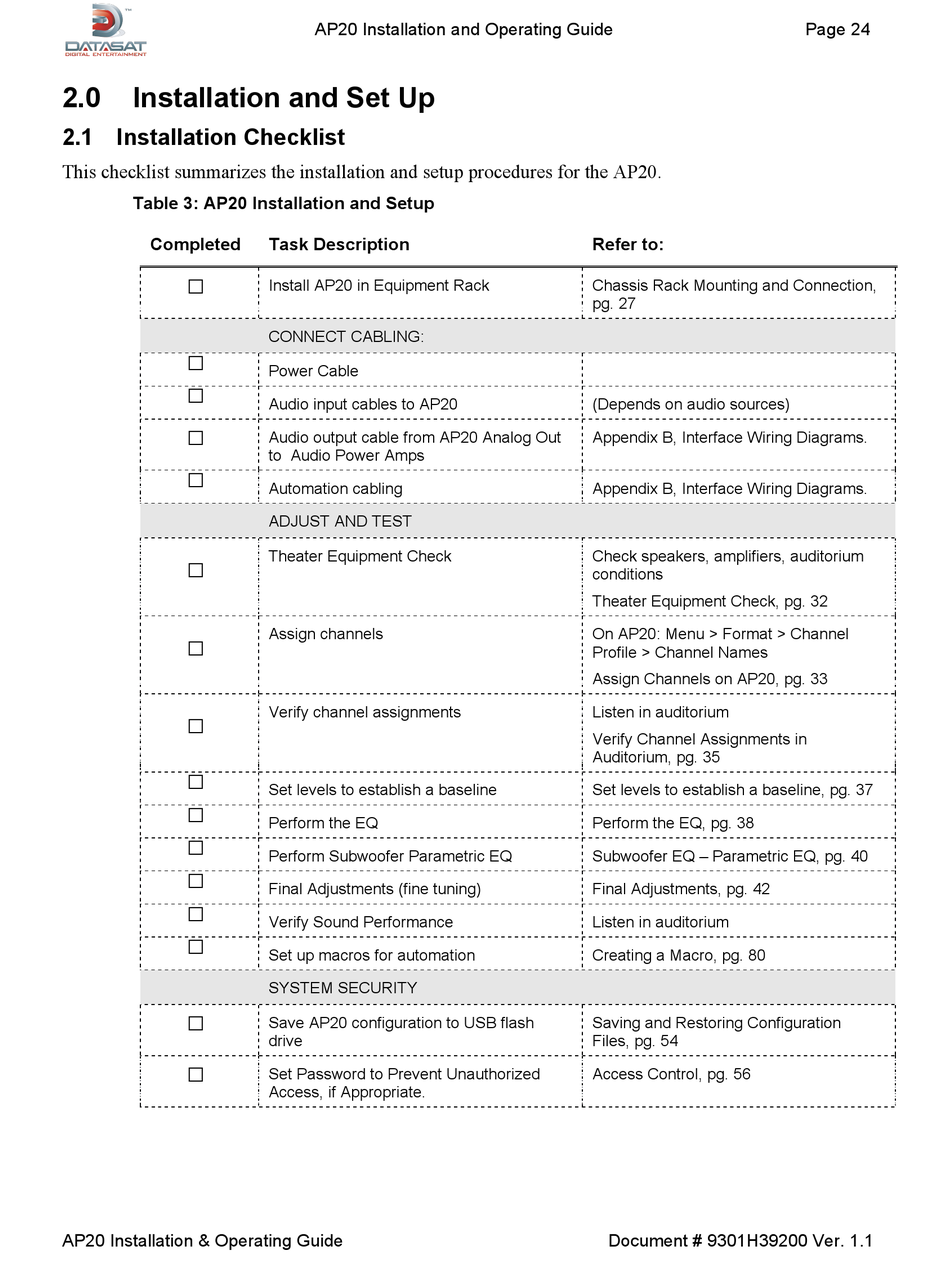

2.0 Installation and Set Up
2.1 Installation Checklist
This checklist summarizes the installation and setup procedures for the AP20.
Table 3: AP20 Installation and Setup
Completed
















AP20 Installation & Operating Guide
AP20 Installation and Operating Guide
Task Description
Install AP20 in Equipment Rack
CONNECT CABLING:
Power Cable
Audio input cables to AP20
Audio output cable from AP20 Analog Out
to Audio Power Amps
Automation cabling
ADJUST AND TEST
Theater Equipment Check
Assign channels
Verify channel assignments
Set levels to establish a baseline
Perform the EQ
Perform Subwoofer Parametric EQ
Final Adjustments (fine tuning)
Verify Sound Performance
Set up macros for automation
SYSTEM SECURITY
Save AP20 configuration to USB flash
drive
Set Password to Prevent Unauthorized
Access, if Appropriate.
Refer to:
Chassis Rack Mounting and Connection,
pg. 27
(Depends on audio sources)
Appendix B, Interface Wiring Diagrams.
Appendix B, Interface Wiring Diagrams.
Check speakers, amplifiers, auditorium
conditions
Theater Equipment Check, pg. 32
On AP20: Menu > Format > Channel
Profile > Channel Names
Assign Channels on AP20, pg. 33
Listen in auditorium
Verify Channel Assignments in
Auditorium, pg. 35
Set levels to establish a baseline, pg. 37
Perform the EQ, pg. 38
Subwoofer EQ – Parametric EQ, pg. 40
Final Adjustments, pg. 42
Listen in auditorium
Creating a Macro, pg. 80
Saving and Restoring Configuration
Files, pg. 54
Access Control, pg. 56
