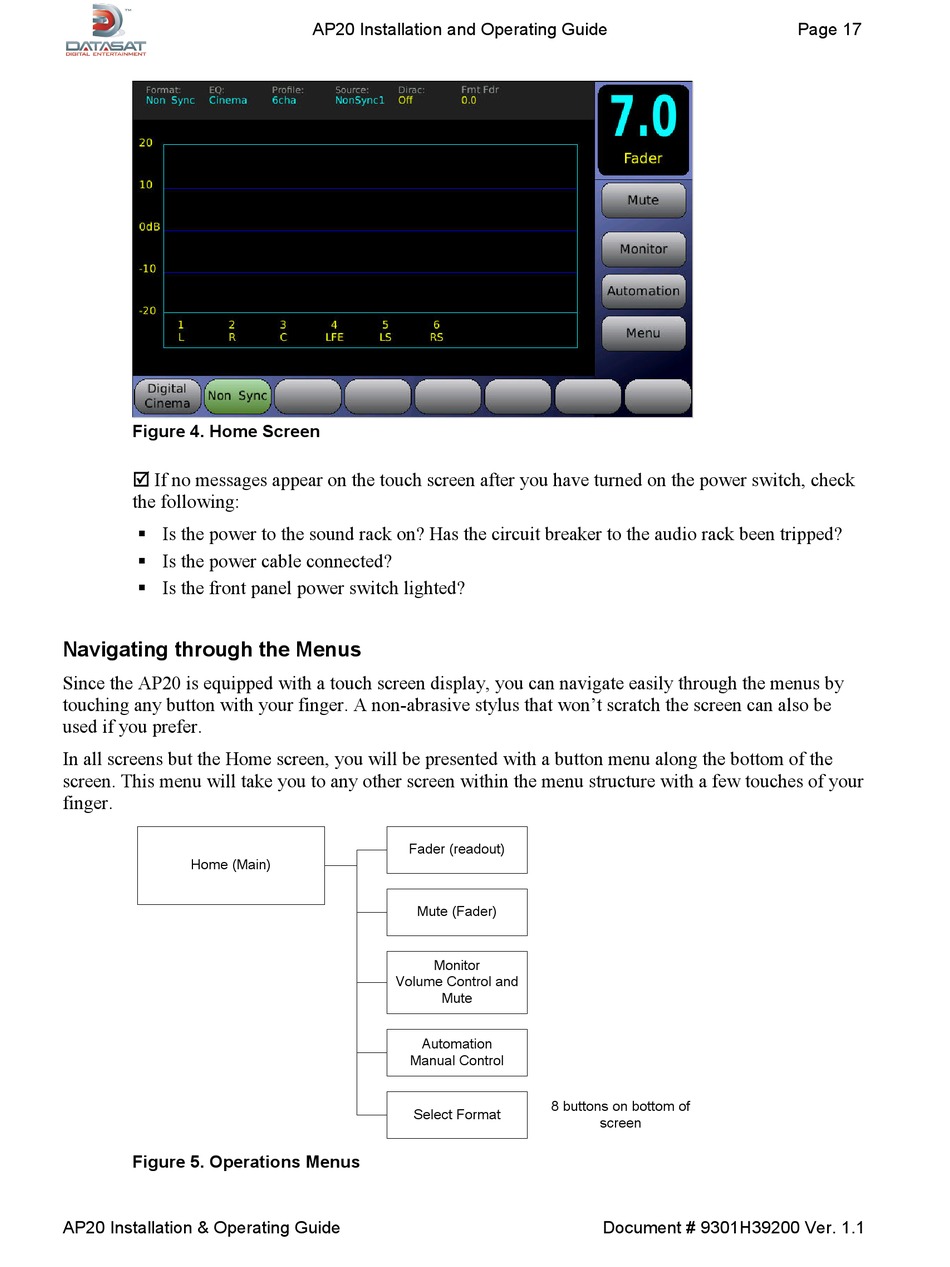

Figure 4. Home Screen
 If no messages appear on the touch screen after you have turned on the power switch, check
the following:
 Is the power to the sound rack on? Has the circuit breaker to the audio rack been tripped?
 Is the power cable connected?
 Is the front panel power switch lighted?
Navigating through the Menus
Since the AP20 is equipped with a touch screen display, you can navigate easily through the menus by
touching any button with your finger. A non-abrasive stylus that won't scratch the screen can also be
used if you prefer.
In all screens but the Home screen, you will be presented with a button menu along the bottom of the
screen. This menu will take you to any other screen within the menu structure with a few touches of your
finger.
Home (Main)
Figure 5. Operations Menus
AP20 Installation & Operating Guide
AP20 Installation and Operating Guide
Fader (readout)
Mute (Fader)
Monitor
Volume Control and
Mute
Automation
Manual Control
Select Format
8 buttons on bottom of
screen
Document # 9301H39200 Ver. 1.1
Page 17
