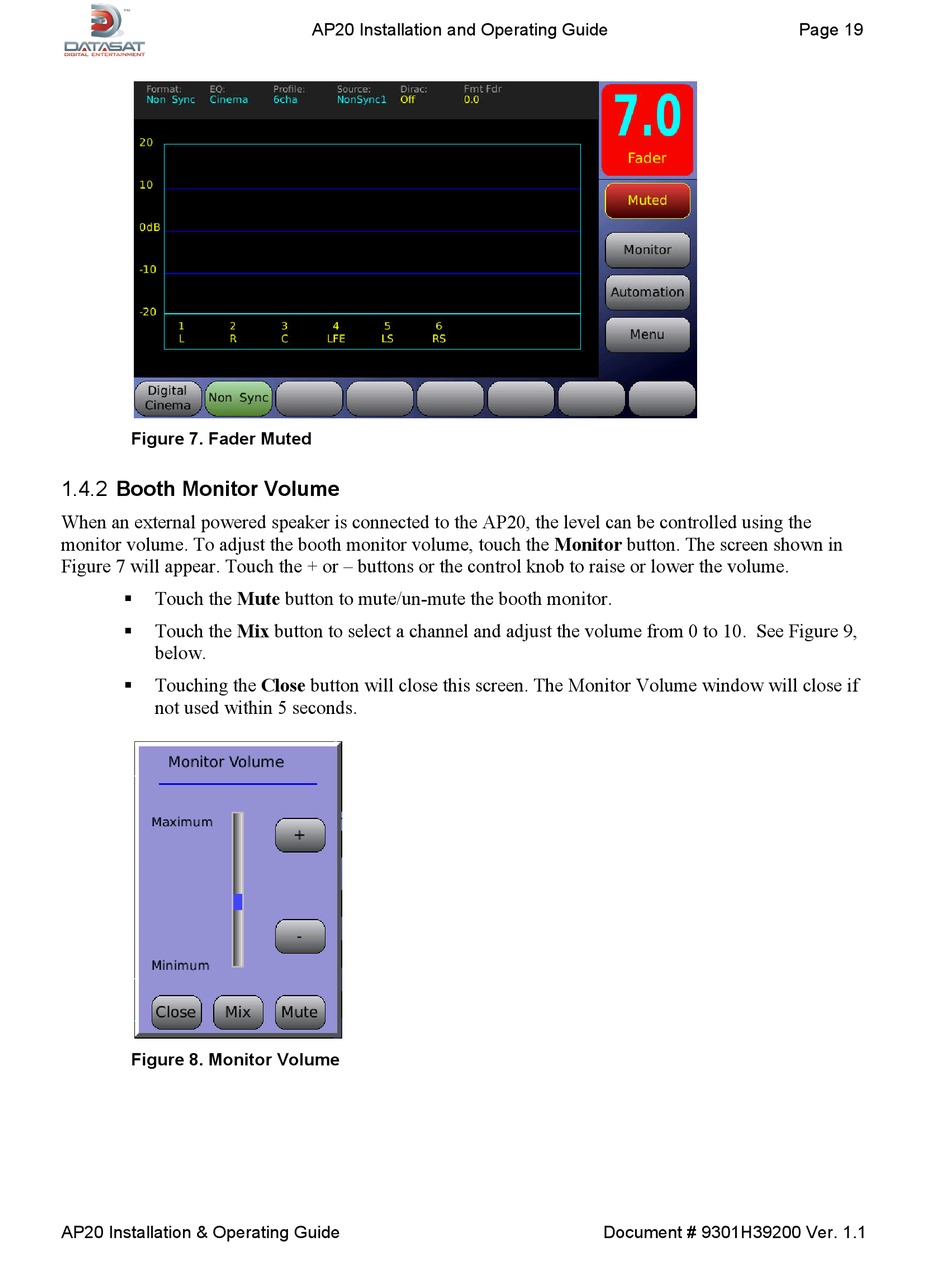

Figure 7. Fader Muted
1.4.2 Booth Monitor Volume
When an external powered speaker is connected to the AP20, the level can be controlled using the
monitor volume. To adjust the booth monitor volume, touch the Monitor button. The screen shown in
Figure 7 will appear. Touch the + or – buttons or the control knob to raise or lower the volume.
Touch the Mute button to mute/un-mute the booth monitor.

Touch the Mix button to select a channel and adjust the volume from 0 to 10. See Figure 9,

below.
Touching the Close button will close this screen. The Monitor Volume window will close if

not used within 5 seconds.
Figure 8. Monitor Volume
