SYSTEM SETUP
ALARM MENU
Alarm Menu
Path: System Setup>Alarm
Settings for different alarm parameters can be set
from the Alarm menu, including how and when an
alarm is triggered.
Use the Alarm In feature to configure alarm
settings. NOTE: External alarm devices must
be connected to the alarm block on the rear
panel of the DVR in order to use the I/O (input/
output) alarms of the system. See page 25
"Alarm Inputs" and "Alarm Inputs Diagram"
for details on attaching alarm inputs.
• Set
Set the Sensitivity and Area of Motion Detection for the
selected channel to set an alarm
Alarm Inputs:
Alarm inputs are devices or switches that activate when a door, window,
cabinet etc. is opened or accessed. For example, you might want to only
have the camera record when someone opens a tool cabinet or when a door
opens vs. recording when motion occurs around those areas. There may
be people moving by those areas frequently but you are only concerned
about when those areas are accessed. This saves hard drive space and
makes it easier to find an event that was recorded to the hard drive.
Select Alarm in Module:
Alarm Input cables of device of Alarm in: one is connected with "COM" port,
the other is connected with the port "1/2/3/4" (This should be in accordance
with Alarm Input ID 1/2/3/4 in DVR software). The below figure shows the
Alarm Input cable has been connected with Port 1, so the Alarm Input 1
should be set in DVR software.
Alarm Output:
Alarm output is used to activate an external device such as a horn
or light after an alarm is triggered. To do this the DVR uses a dry
contact normally open relay. To configure alarm outputs, connect the
external device to the out connections on the alarm block as required
by the device. The maximum contact rating is 24 VDC @ 3A. Alarm
input can start recording on any one of the camera channels.
Page 22

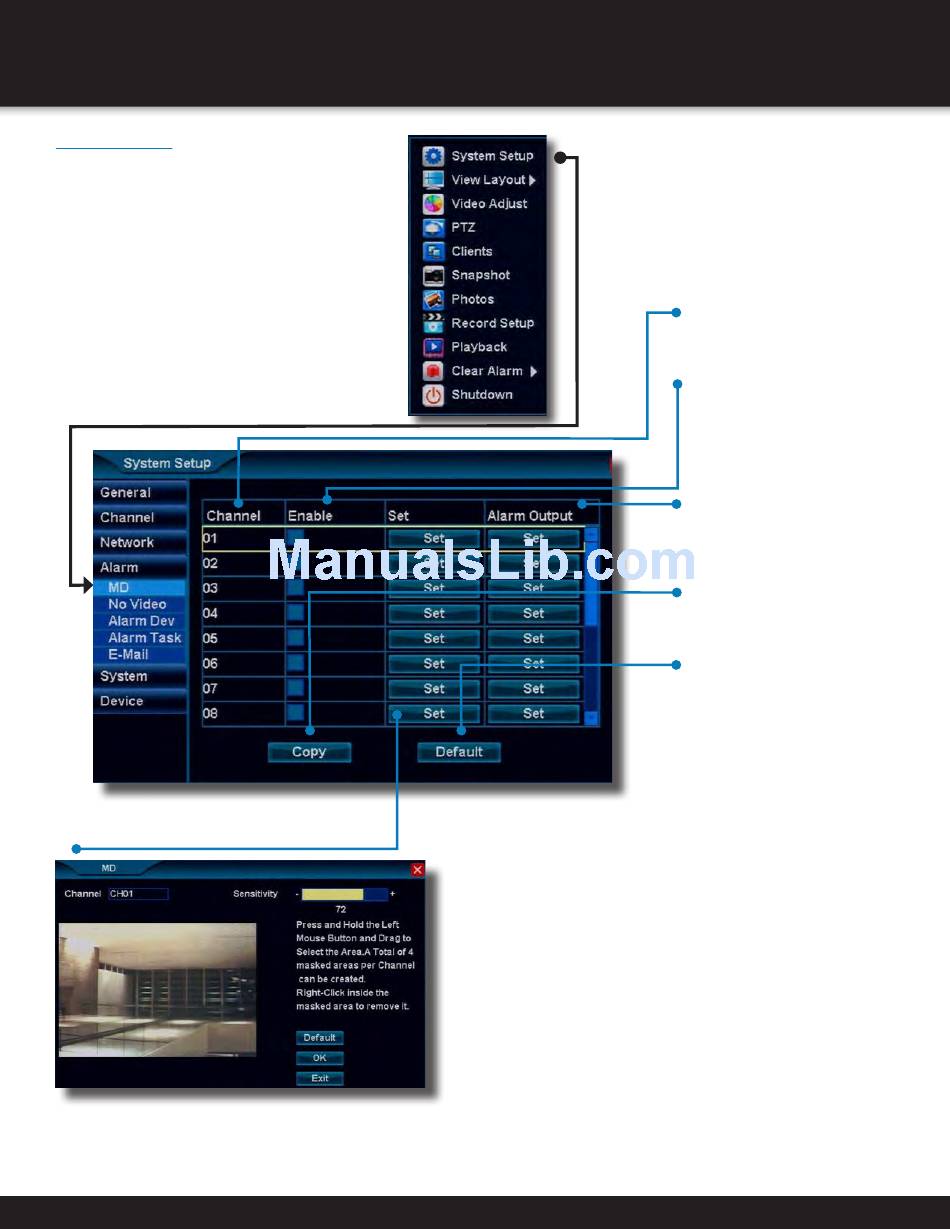

• Channel
Indicates the channel
• Enable
Sets the alarm settings for a
channel to on or off
• Alarm Output
Determine how the system
iniates the Alarm alerts, including
sending an email, sounding a
buzzer, etc. (See also pg. 23)
• Copy
Copy a selected channel's
setting to all other channels
• Default
Reset all channels to default
settings
