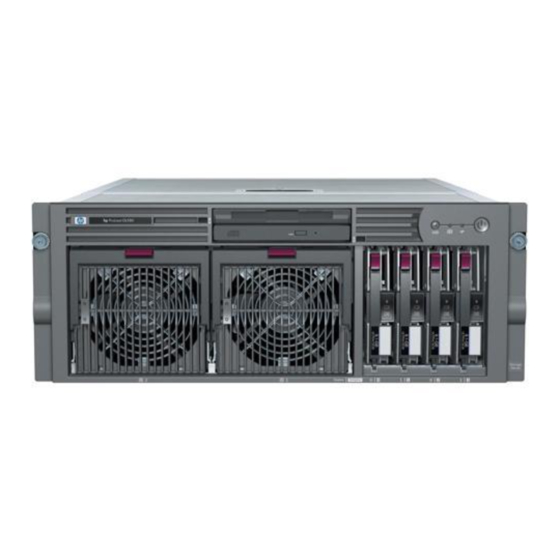

HP Proliant DL580 Quickspecs

HP Proliant DL580 Quickspecs

Generation 2
Hide thumbs Also See for Proliant DL580:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Quickspecs
QuickSpecs
Overview
W h a t ' s N ew
Intel Xeon™ Processors MP at
2.0 GHz/2MB or 1.5 GHz/1MB.
A t A G l a n c e
delivers
Next generation DL580 G2
maximum performance and
unprecedented availability in a
flexible, rack optimized form factor
Intel Xeon Processors MP at 2.0
GHz/2M, 1.9GHz/1M, 1.5GHz/1M,
1.60 GHz/1MB or 1.40 GHz/512KB
ServerWorks Grand Champion-
HE chipset
4x1 interleaved memory, 200MHz
DDR SDRAM Memory (PC1600
Registered SDRAM with
Advanced ECC functionality)
2048 MB (2P Models) or 1024 MB
(1P Model) standard memory,
expandable to 32 GB
HP Advanced Memory Protection
(Online Spare, Single Board
Mirrored Memory, Hot Plug
Mirrored Memory)
Six, full length 64-bit/100 MHz
PCI-X slots, 4 Hot Pluggable
Integrated Lights-Out Standard
Management (iLO) on system
board
Integrated Compaq NC7770 PCI-
X Gigabit Server Adapter in a slot
Integrated Smart Array 5i Plus
Controller (Dual Channel, Ultra3)
with 64-MB total memory on 5i
Plus Memory Module
Battery-Backed Write Cache
Enabler module on all 2P models
(optional on 1P model)
Internal Hot Plug Drive Storage of
up to 587.2 GB (4 x 146.8-GB 1
Wide Ultra3 SCSI hard drives)
Redundant Cooling Zones for
major subsystems (Memory, I/O,
CPUs) assure 7x24 cooling
Toolless and virtually cable-less
internal design
Innovative diagnostic lighting
(QuickFind Diagnostic Display) for
rapid response to service events
Rapid Deployment racking
solution (rack rails and cable
management)
Protected by HP Services,
including a three-year, Next
Business Day on-site, limited,
Global warranty and extended
Pre-Failure Warranty that covers
processors, memory and disk
drives — Certain restrictions and
exclusions apply. Consult the HP
Customer Support Center at
1-800-345-1518 for details.
DA-11372
World Wide — Version 25 — March 20, 2003
hp ProLiant DL580 Generation 2 (G2)
1
