HP 3-7U Quick Deploy
Rail System

Installation Instructions

for HP products
© Copyright 2005-2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should
be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
June 2006 (Third Edition)
Part Number 378950-003

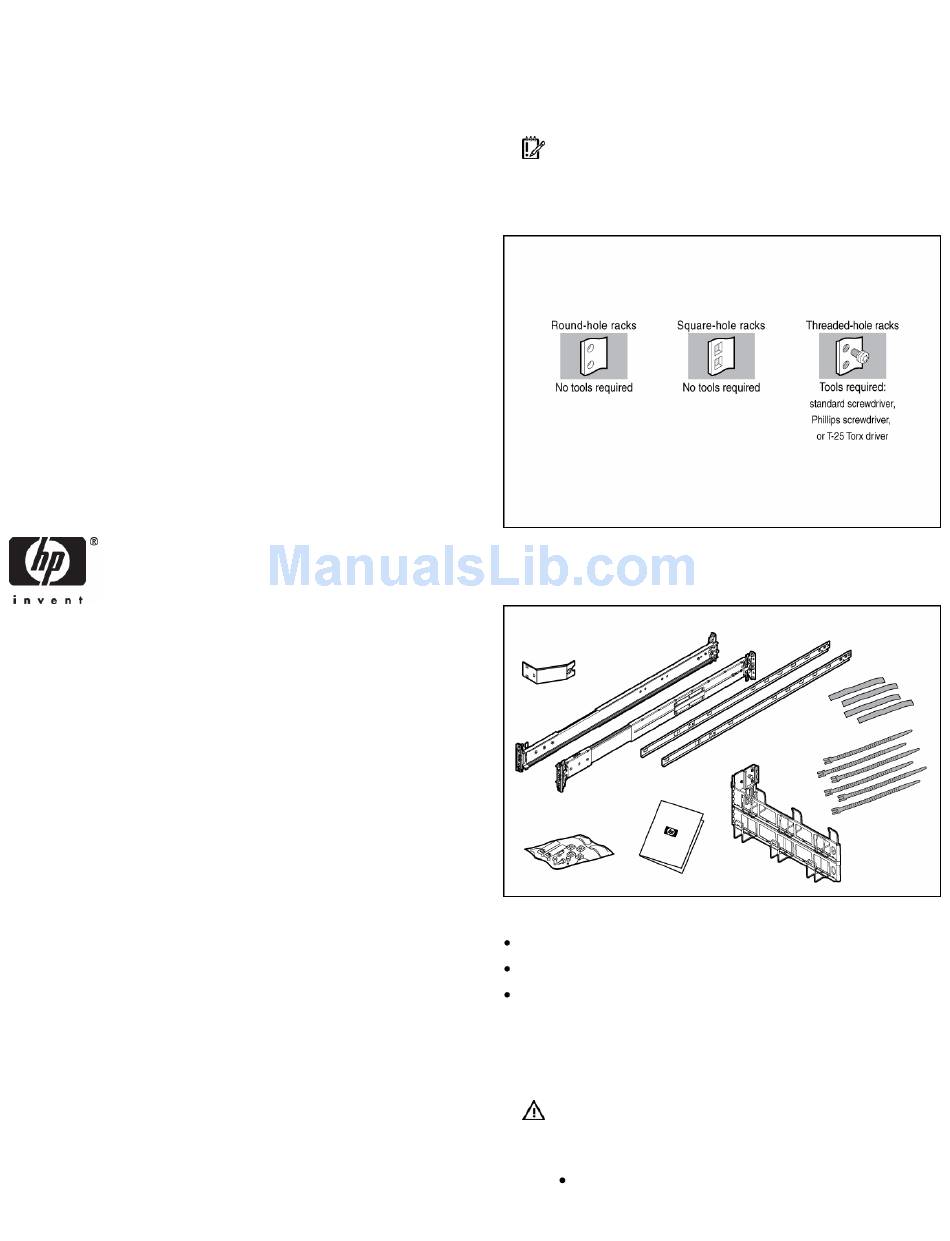

Overview
This rack hardware kit supports a variety of 3-7U HP products
in round-, square-, or threaded-hole racks. Use the legend to
identify installation steps appropriate to the type of rack.
IMPORTANT: If you are shipping the server installed
in a rack, see the additional instructions located in
"Preparing the product for rack relocation or
integrated shipping" before proceeding.

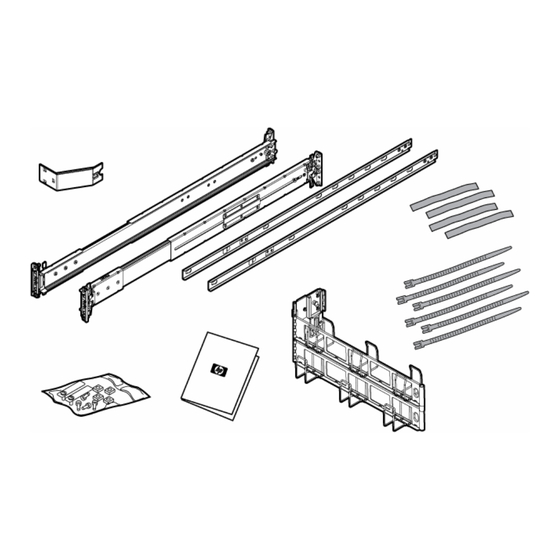

Hardware kit contents
In addition to the supplied items, you may need:
Screws that fit a threaded-hole rack
The appropriate screwdriver for the screws
Kit 371482-B21 for integrated shipping a
round-hole rack

Rack warnings

WARNING: To reduce the risk of personal
injury or damage to the equipment,
be sure that:
The leveling jacks are extended to
the floor.
