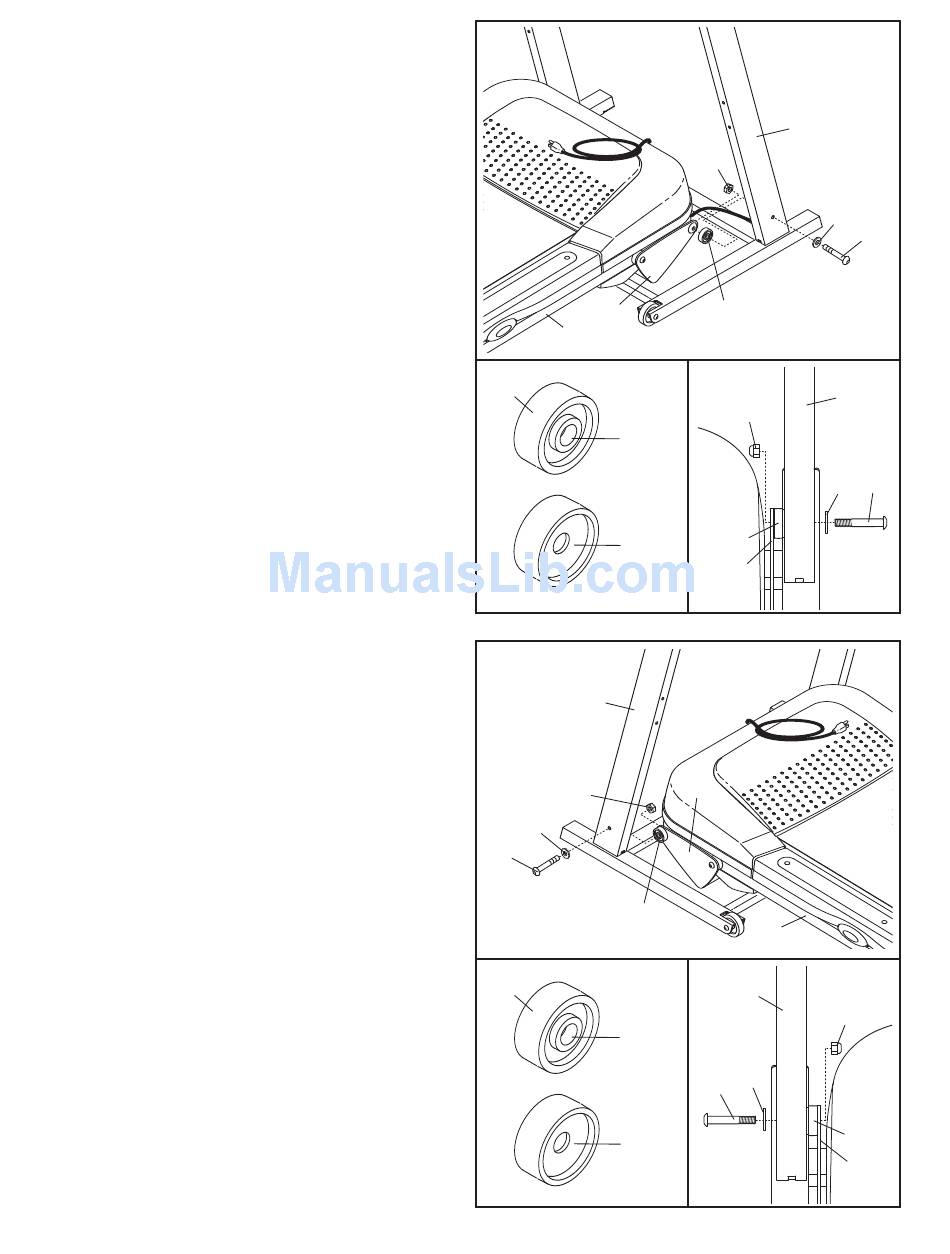

5. See the left inset drawing. Identify the two Frame
Spacers (71). Open the included packet of
grease, and apply grease to both sides of both
Frame Spacers. Then, identify the outer side of
each Frame Spacer.
While a second person lifts the Frame (36)
slightly, hold a Frame Spacer (71) between the
Right Upright (39) and the Lift Frame (41), with
the outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a Frame Bolt (1), an Upright
Washer (7), and a Frame Nut (90); do not
tighten the Frame Nut yet.
6. See the left inset drawing. Identify the outer side
of the remaining Frame Spacer (71).
While a second person lifts the Frame (36)
slightly, hold the Frame Spacer (71) between the
Left Upright (38) and the Lift Frame (41), with
the outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with a Frame Bolt (1), an Upright Washer
(7), and a Frame Nut (90); firmly tighten the
two Frame Nuts used in step 5 and this step.
5
41
36
71
Outer
Side
Inner
Side
6
38
90
7
1
71
71
Outer
Side
Inner
Side
8
39
90
7
1
71
39
90
7
71
41
41
36
38
90
7
1
71
41
1
