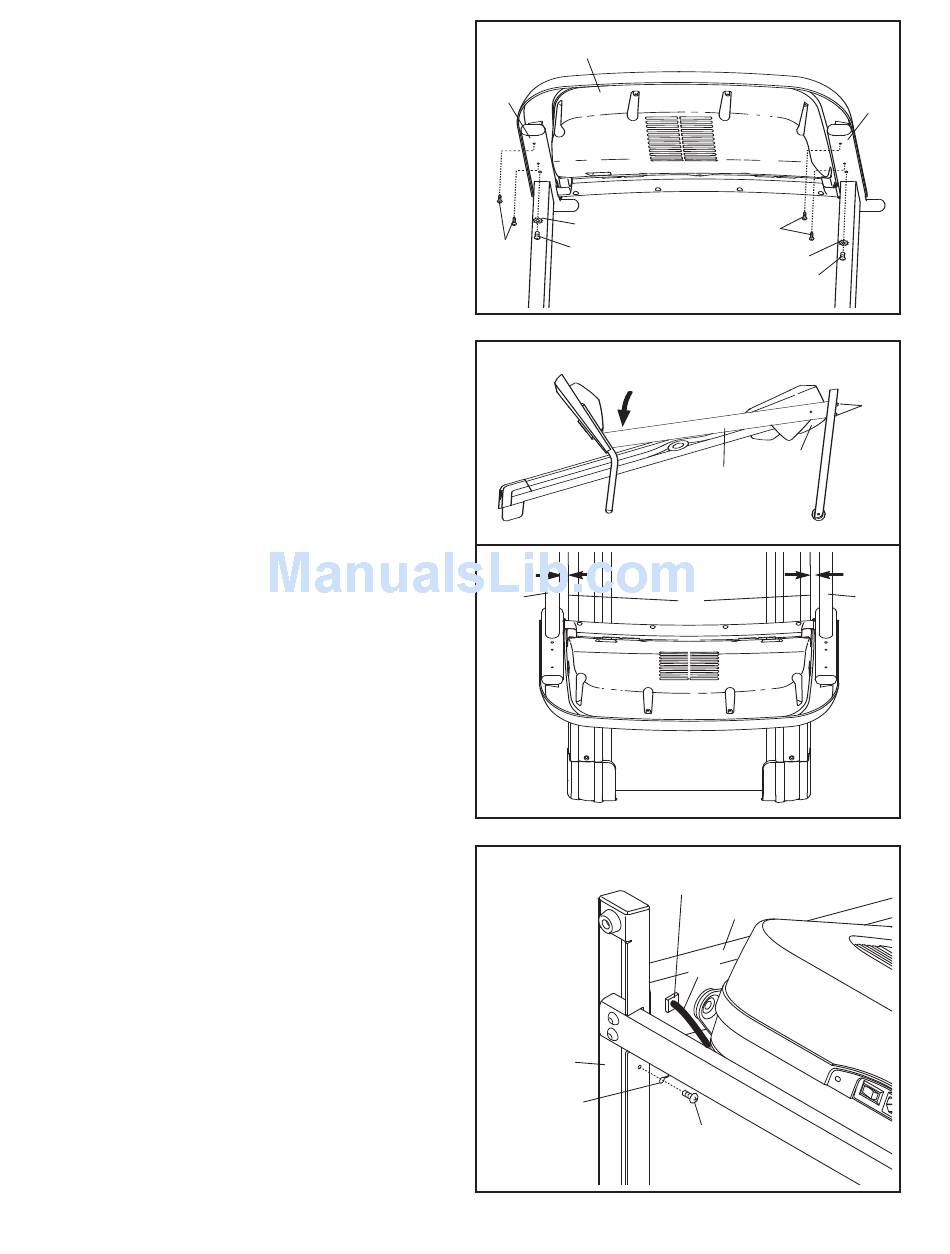

10. Insert the connectors and the excess wire into
the Console Base (67) as you set the Console
Base on the Handrails (40).
Make sure that no wires are pinched, and
start two Console Bolts (2) with 1/4" Star
Washers (8) into the Handrails (40) and the
Console Base (67). Do not tighten the Console
Bolts yet. Next, start four 3/4" Screws (3) into
the Handrails and the Console Base. Tighten
the Screws and then tighten the Console
Bolts; be careful not to overtighten the
Screws.
11. Lower the Uprights (38, 39) as shown.
See the lower drawing. Position the Uprights (38,
39) so that the treadmill Frame (36) is centered
between them.
Firmly tighten the Upright Bolts (4) on each side
of the treadmill.
Important: If there is a thin sheet of plastic on
the bottom of the Belly Pan (49), remove the
plastic.
12. Attach the ground wire on the Upright Wire (69)
to the indicated hole in the Base (37) with a No.
8 x 3/4" Screw (10).
Press the indicated Grommet (72) into the Right
Upright (39).
10
Front View
67
40
8
3
2
11
View from Above
38
12
37
Ground
Wire
10
3
8
2
Side View
49
38, 39
36
72
39
69
10
40
4
39
