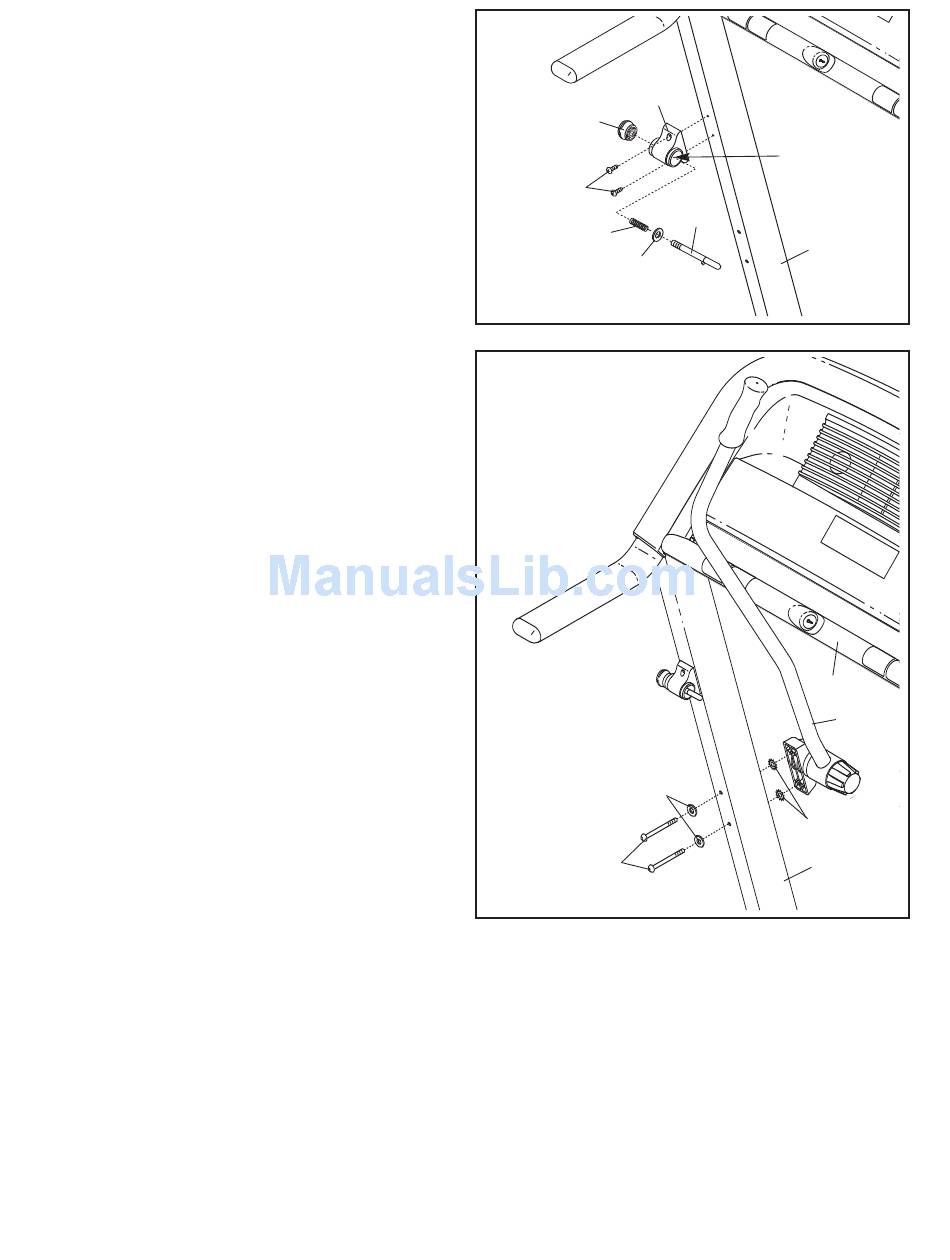

13. Carefully raise the Left Upright (38) and Right
Upright (not shown).
Attach the Latch Housing (91) to the Left Upright
(38) with two 3/4" Screws (3). Make sure that
the large hole in the Latch Housing is on the
side shown. Do not overtighten the Screws.
Remove the knob from the pin. Make sure that
the collar and the spring are on the pin. Insert
the pin into the Latch Housing (91), and tighten
the knob back onto the pin.
14. Attach the Left Upper Body Arm (42) to the left
Upright (38) with two 3 1/2" Bolts (33), two Flat
Washers (29), and two Upright Star Washers (6)
as shown. Make sure that the Left Upper Body
Arm is on the indicated side of the Console
Base (67).
Attach the Right Upper Body Arm (not shown) to
the Right Upright (not shown) in the same way.
15. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt
(see page 23). To protect the floor or carpet, place a mat under the treadmill.
13
Knob
3
Spring
Collar
14
33
11
91
Large
Hole
Pin
38
67
29
6
38
42
