General Information

1.1 UNPACKING

• Remove all packaging material.
• Remove separate accessory box.
• Remove carton off the generator.

1.1.1 ACCESSORY BOX

Check all contents (Figure 1). If any parts are missing or damaged
locate an authorized dealer at 1-888-775-6937.
Contents include:
• 1 – Axle (secured to frame)
• 2 – Wheel Spacers
• 2 – Hair Pins
• 2 – Wheels
• 1 – Frame Foot
• 2 – Carriage Bolts
• 2 – Vibration Mounts
• 4 – Flange Nuts
• 2 – 1 Quart SAE 30 Oil Bottles
• 12 Volt Adaptor Plug Charger
• 2 Spacers or 4 Large Washers

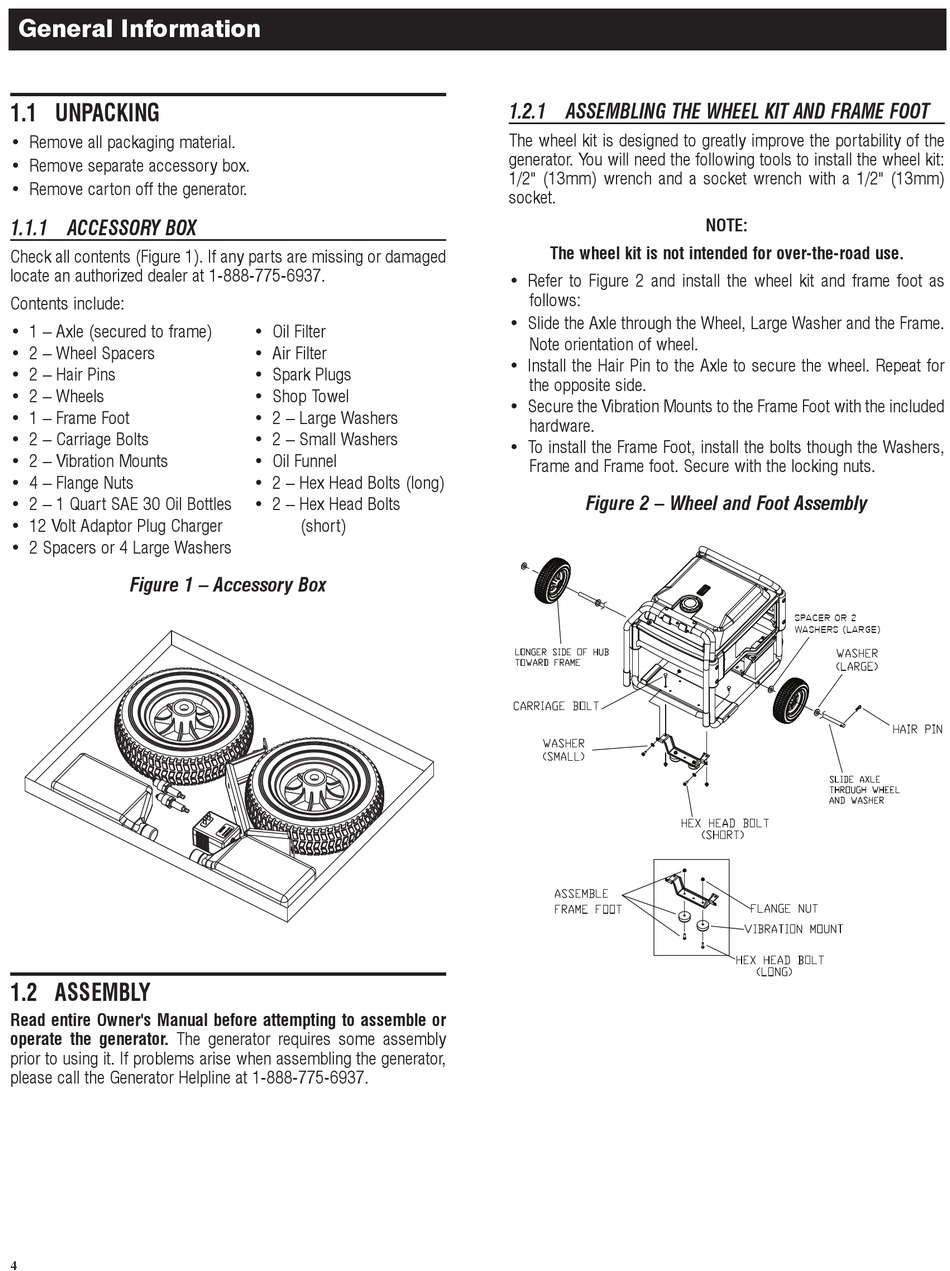

Figure 1 – Accessory Box

1.2 ASSEMBLY

Read entire Owner's Manual before attempting to assemble or
operate the generator. The generator requires some assembly
prior to using it. If problems arise when assembling the generator,
please call the Generator Helpline at 1-888-775-6937.
4
• Oil Filter
• Air Filter
• Spark Plugs
• Shop Towel
• 2 – Large Washers
• 2 – Small Washers
• Oil Funnel
• 2 – Hex Head Bolts (long)
• 2 – Hex Head Bolts
(short)

1.2.1 ASSEMBLING THE WHEEL KIT AND FRAME FOOT

The wheel kit is designed to greatly improve the portability of the
generator. You will need the following tools to install the wheel kit:
1/2" (13mm) wrench and a socket wrench with a 1/2" (13mm)
socket.
The wheel kit is not intended for over-the-road use.
• Refer to Figure 2 and install the wheel kit and frame foot as
follows:
• Slide the Axle through the Wheel,
Note orientation of wheel.
• Install the Hair Pin to the Axle to secure the wheel. Repeat for
the opposite side.
• Secure the Vibration Mounts to the Frame Foot with the included
hardware.
• To install the Frame Foot, install the bolts though the Washers,
Frame and Frame foot. Secure with the locking nuts.
Figure 2 – Wheel and Foot Assembly
NOTE:
Large Washer and the Frame.


