VNR 100 • Setup Guide
The Extron VNR 100 recorder is a network storage device capable of recording and playing back PURE3 video, audio, and
data streams from VN‑Matrix codecs and encoders in a VN‑Matrix system. The system must be under the control of an Extron
VNM Enterprise Controller.
This guide provides basic instructions for an experienced installer to configure and operate a VNR 100 recorder.
NOTE:
For complete instructions about mounting, installation, and network configuration, see the VNR 100 User Guide and
the VNM Enterprise Controller User Guide at www.extron.com.

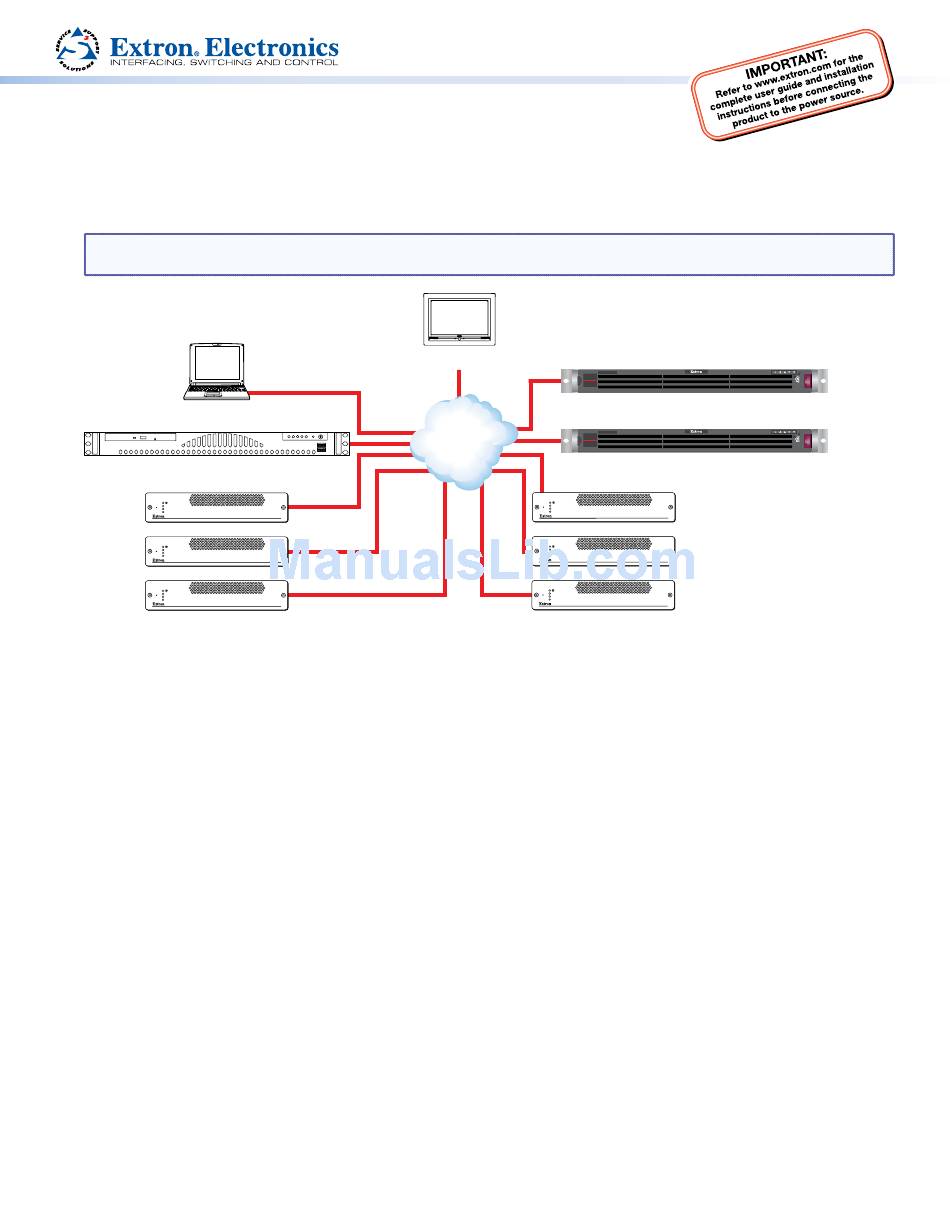

Browser Based User
Control
VNM Enterprise Controller
LAN-1
LAN-2
STATUS
LAN-1
LAN-2
STATUS
LAN-1
LAN-2
STATUS
Multiple VNM 200 and 225 Series Encoders
(or CODECs configured as encoders)

Installation

Mount the VNR 100 using the provided rack mount kit (see Mounting, below).
1.
Connect a standard IEC power cord to the rear panel connector (see
2.
Connect the VNR 100 to the same network as the VNM Enterprise Controller, using Ethernet port 0 (see
3.
on page 2).
Power on the VNR 100 (see
4.
Use a computer on the same network to carry out the initial configuration (see
5.
Use the VNM Enterprise Controller to configure the VNR 100 (see
6.
page 4).
If it becomes necessary to power down the VNR 100, see
7.

Mounting

The VNR 100 can be mounted in a rack, using the provided kit. See the VNR 100 User Guide at
guidelines for rack mounting and complete mounting instructions.
TouchLink
External User Control
Network
Multicast Enabled
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
™
Touchpanel
VN-Matrix
VNR 100
Recorder
VN-Matrix
VNR 100
Recorder
Network
LAN-1
LAN-2
STATUS
LAN-1
LAN-2
STATUS
LAN-1
LAN-2
STATUS
Multiple VNM 200 and 225 Series Decoders
(or CODECs configured as decoders)
on page 3).
Getting Started with the VNM Enterprise Controller
VNR 100 Recorder
VNR 100 Recorder
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
on page 2).
Rear Panel Features
on page 3).
on page 3.
www.extron.com
for UL
on
1
