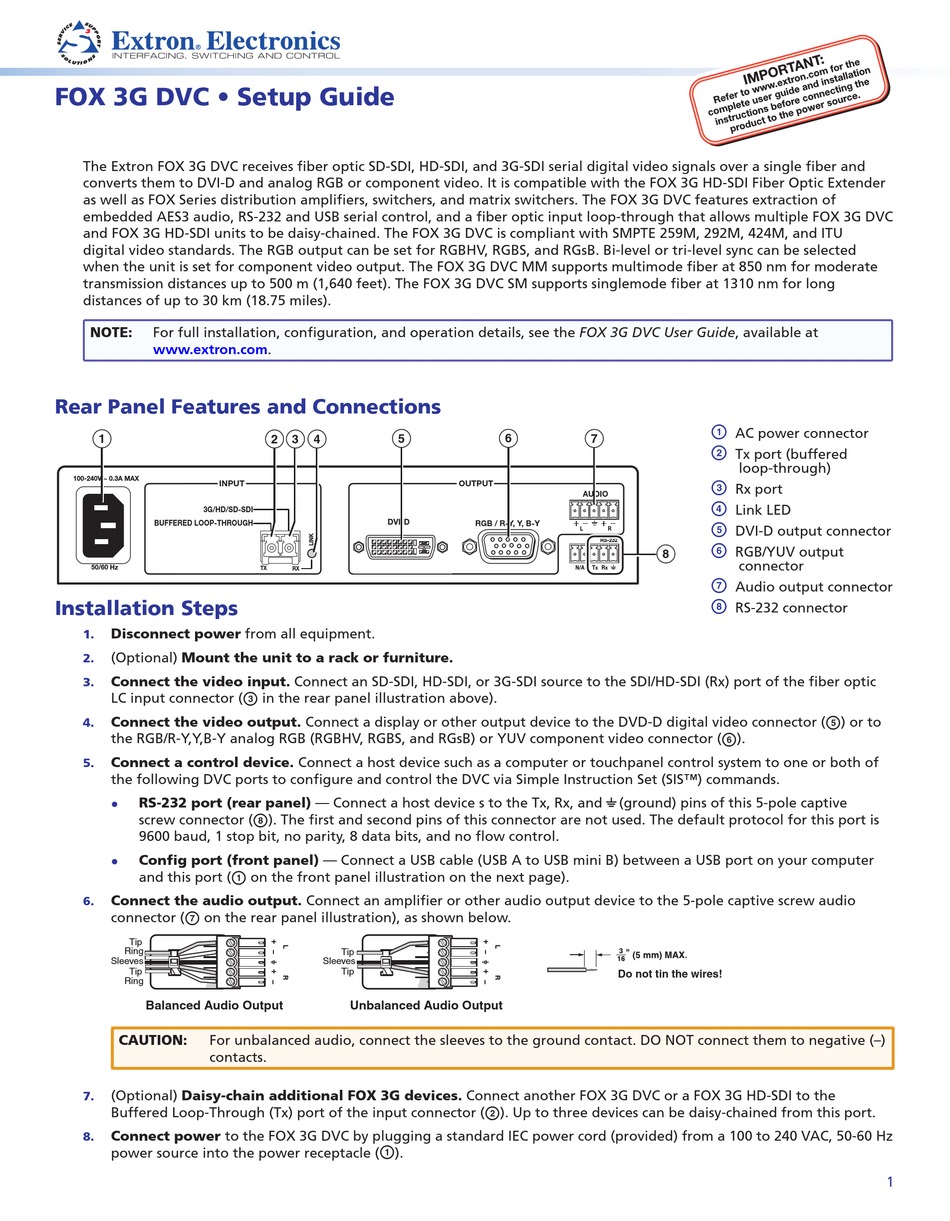

FOX 3G DVC • Setup Guide
The Extron FOX 3G DVC receives fiber optic SD-SDI, HD-SDI, and 3G-SDI serial digital video signals over a single fiber and
converts them to DVI-D and analog RGB or component video. It is compatible with the FOX 3G HD-SDI Fiber Optic Extender
as well as FOX Series distribution amplifiers, switchers, and matrix switchers. The FOX 3G DVC features extraction of
embedded AES3 audio, RS-232 and USB serial control, and a fiber optic input loop-through that allows multiple FOX 3G DVC
and FOX 3G HD-SDI units to be daisy-chained. The FOX 3G DVC is compliant with SMPTE 259M, 292M, 424M, and ITU
digital video standards. The RGB output can be set for RGBHV, RGBS, and RGsB. Bi-level or tri-level sync can be selected
when the unit is set for component video output. The FOX 3G DVC MM supports multimode fiber at 850 nm for moderate
transmission distances up to 500 m (1,640 feet). The FOX 3G DVC SM supports singlemode fiber at 1310 nm for long
distances of up to 30 km (18.75 miles).
NOTE: For full installation, configuration, and operation details, see the FOX 3G DVC User Guide, available at
www.extron.com.
Rear Panel Features and Connections
1
100-240V ~ 0.3A MAX
INPUT
3G/HD/SD-SDI
BUFFERED LOOP-THROUGH
50/60 Hz

Installation Steps

Disconnect power from all equipment.
1.
(Optional) Mount the unit to a rack or furniture.
2.
Connect the video input. Connect an SD-SDI, HD-SDI, or 3G-SDI source to the SDI/HD-SDI (Rx) port of the fiber optic
3.
LC input connector (
Connect the video output. Connect a display or other output device to the DVD-D digital video connector (
4.
the RGB/R-Y,Y,B-Y analog RGB (RGBHV, RGBS, and RGsB) or YUV component video connector (
Connect a control device. Connect a host device such as a computer or touchpanel control system to one or both of
5.
the following DVC ports to configure and control the DVC via Simple Instruction Set (SIS™) commands.
RS-232 port (rear panel) — Connect a host device s to the Tx, Rx, and
z
screw connector (
9600 baud, 1 stop bit, no parity, 8 data bits, and no flow control.
Config port (front panel) — Connect a USB cable (USB A to USB mini B) between a USB port on your computer
z
a
and this port (
Connect the audio output. Connect an amplifier or other audio output device to the 5-pole captive screw audio
6.
g
connector ( on the rear panel illustration), as shown below.
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
CAUTION: For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect them to negative (–)
contacts.
(Optional) Daisy-chain additional FOX 3G devices. Connect another FOX 3G DVC or a FOX 3G HD-SDI to the
7.
Buffered Loop-Through (Tx) port of the input connector (
Connect power to the FOX 3G DVC by plugging a standard IEC power cord (provided) from a 100 to 240 VAC, 50-60 Hz
8.
power source into the power receptacle (
2 4 5
3
DVI-D
TX RX
c
in the rear panel illustration above).
h
). The first and second pins of this connector are not used. The default protocol for this port is
on the front panel illustration on the next page).
Tip
Sleeves
Tip
Unbalanced Audio Output
a
).
6 7
OUTPUT
AUDIO
RGB / R-Y, Y, B-Y
L R
RS-232
N/A Tx Rx
_
(ground) pins of this 5-pole captive
Do not tin the wires!
b
). Up to three devices can be daisy-chained from this port.
Product Category
a
AC power connector
b
Tx port (buffered
loop-through)
c
Rx port
d
Link LED
e
DVI-D output connector
f
RGB/YUV output
8
connector
g
Audio output connector
h
RS-232 connector
e
) or to
f
).
1
