Maytag W10494218A Use & Care Manual

Electronic dryer
Hide thumbs Also See for W10494218A:
Table of Contents

Advertisement

Quick Links

Download this manual

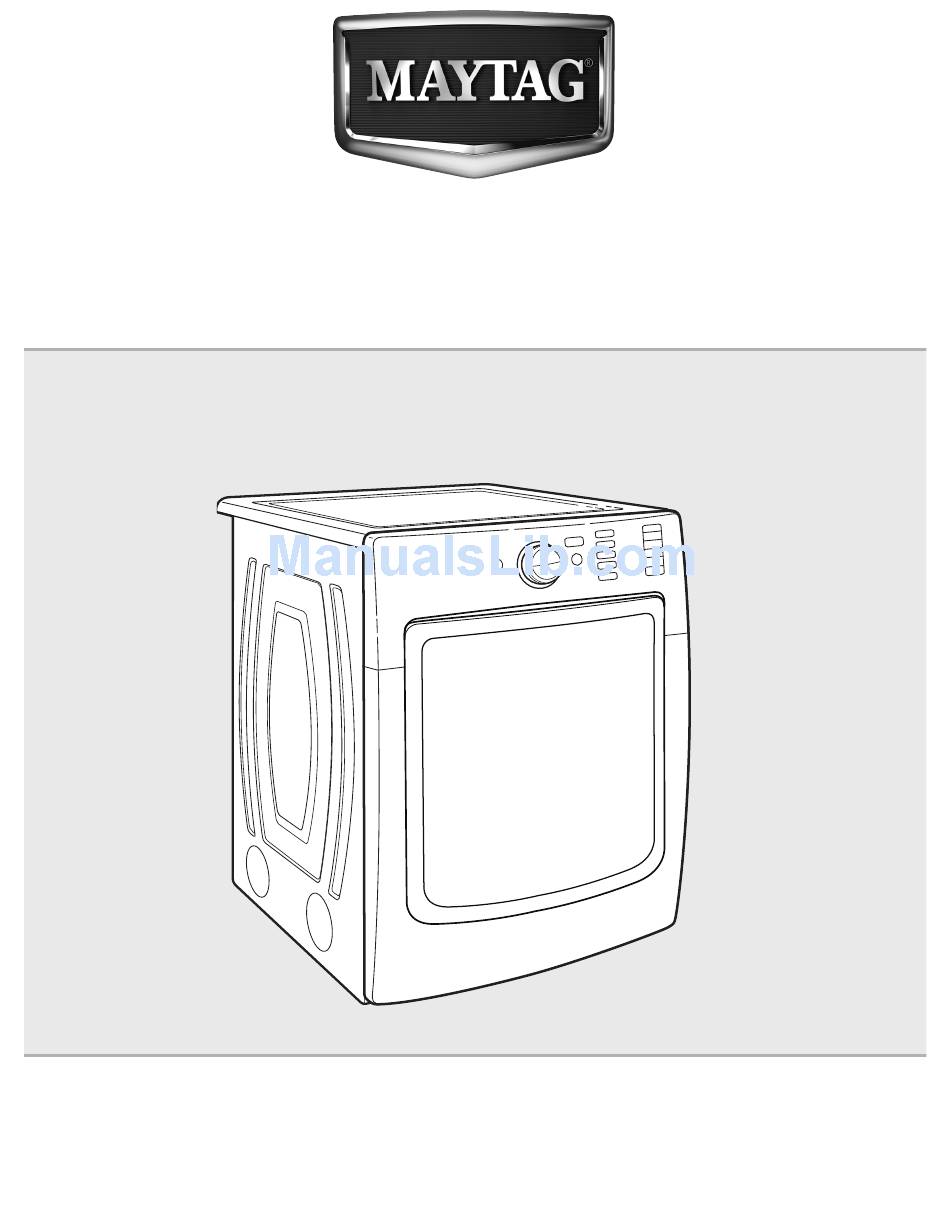

Use & Care Guide
Guide d'utilisation et d'entretien
ELECTRONIC DRYER
SÉCHEUSE ÉLECTRONIQUE
W10494218A
W10494225A - SP
If you have any problems or questions, visit us at www.maytag.com
Pour tout problème ou question, consulter www.maytag.ca
Para obtener acceso
al Manual de uso y
cuidado en español, o para
obtener información adicional
acerca de su producto, visite:
www.maytag.com.

Advertisement

Table of Contents
loading

Related Manuals for Maytag W10494218A

Summary of Contents for Maytag W10494218A

  • Page 1 Manual de uso y cuidado en español, o para obtener información adicional acerca de su producto, visite: www.maytag.com. If you have any problems or questions, visit us at www.maytag.com Pour tout problème ou question, consulter www.maytag.ca W10494218A W10494225A - SP...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE DE MATIÈRES DRYER SAFETY ..................2 SÉCURITÉ DE LA SÉCHEUSE ............19 ACCESSORIES ..................4 ACCESSOIRES ..................21 CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW ....5 VÉRIFICATION D’UNE CIRCULATION D’AIR ADÉQUATE POUR LE SYSTÈME D’ÉVACUATION ..........22 CONTROL PANEL AND FEATURES ..........6 TABLEAU DE COMMANDE ET CARACTÉRISTIQUES ....
  • Page 3 IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

  • Page 4: Accessories

    ACCESSORIES Customize your new washer and dryer with the following Worksurface genuine Maytag accessories. For more information on options The worksurface bridges and ordering, contact your dealer, call us at 1-800-901-2042, the washer and dryer, and or visit: www.maytag.com/accessories. provides a convenient working and storage area.

  • Page 5: Check Your Vent System For Good Air Flow

    CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW Maintain good air flow by: Cleaning your lint screen before each load. Replace plastic or foil vent material with 4" (102 mm) diameter heavy, rigid vent material. Use the shortest length of vent possible. Use no more than four 90°...

  • Page 6: Control Panel And Features

    CONTROL PANEL AND FEATURES Not all features and cycles are available on all models. 10-Cycle Models NOTE: The control panel features a sensitive surface that responds to a light touch of your finger. To ensure your selections are registered, touch the control panel with your finger tip, not your fingernail. When selecting a setting or option, simply touch its name.
  • Page 7 LED DISPLAY AND SETTINGS Steam Boost Steam Boost adds steam to the end of the Heavy Duty, When you select a cycle, its default settings will light up and Bedding, Normal, or Garments cycle to help smooth the Estimated Time Remaining (for Sensor Cycles) or actual wrinkles.

  • Page 8: Cycle Guide

    CYCLE GUIDE — SENSOR CYCLES Settings and options shown in bold are default settings for that cycle. Not all features and cycles are available on all models. Not all settings and options are available on each cycle. Use Sensor Cycles for better fabric care and energy savings The dryer senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.
  • Page 9 CYCLE GUIDE — TIMED CYCLES Settings and options shown in bold are default settings for that cycle. Not all features and cycles are available on all models. Not all settings and options are available on each cycle. Adjusting drying time on Timed Cycles Selecting the Drying Temperature When you select a Timed A High heat setting may be used for drying heavyweight items such...

  • Page 10: Using Your Dryer

    USING YOUR DRYER WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. Touch POWER/CANCEL Clean the lint screen Touch POWER/CANCEL to turn on the dryer. Select the desired cycle Clean the lint screen before each load.
  • Page 11 Touch and hold START to begin cycle Adjust cycle settings, if desired Touch and hold START to begin the cycle. Remove garments promptly 10-cycle model shown after cycle is finished You may adjust different settings, depending on whether you have selected a Sensor Cycle, TImed Cycle, or Steam Cycle.

  • Page 12: Cycle Status Indicators

    CYCLE STATUS INDICATORS ADDITIONAL FEATURES USING THE DRYING RACK To obtain a drying rack for your dryer, order by calling 1-877-944-7566. You will need your model and serial number and the purchase date. Remove and discard any packing material before use. Use the Drying Rack for items that you do not want to tumble dry, such as sweaters and tennis shoes.

  • Page 13: Dryer Care

    DRYER CARE CLEANING THE LINT SCREEN Every load cleaning CLEANING THE DRYER LOCATION The lint screen is located in the door opening of the dryer. Keep dryer area clear and free from items that would block the The control panel has an indicator light to remind you to clean air flow for proper dryer operation.
  • Page 14 NON-USE, STORAGE, AND MOVING CARE SPECIAL INSTRUCTIONS FOR STEAM MODELS Install and store your dryer where it will not freeze. Because some water may stay in the hose, freezing can damage your Water Inlet Hose dryer. If storing or moving your dryer during freezing weather, Replace inlet hose and hose screen after 5 years of use to winterize it.

  • Page 15: Troubleshooting

    TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com/product_help – In Canada www.maytag.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Dryer Operation Dryer will not run Make sure the dryer door is closed completely.
  • Page 16 TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com/product_help – In Canada www.maytag.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Dryer Results (cont.) Clothes are not drying sat- The load is too large and heavy Separate the load to tumble freely.
  • Page 17 First try the solutions suggested here or visit our website at www.maytag.com/product_help – In Canada www.maytag.ca for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Dryer Results (cont.) Recent painting, staining, or Ventilate the area. When the odors or fumes are gone from the...

  • Page 18: Warranty

    YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Maytag designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase.

  • Page 19: Assistance Or Service

    AssistAnce oU service Avant de faire un appel pour assistance ou service, veuillez vérifier la section “Dépannage” ou visiter le site www.maytag.com/ help. Cette vérification peut vous faire économiser le coût d’une visite de réparation. Si vous avez encore besoin d’aide, suivre les instructions ci-dessous.
