Easy Install
Self-Amplified
Speaker
Model ASM1

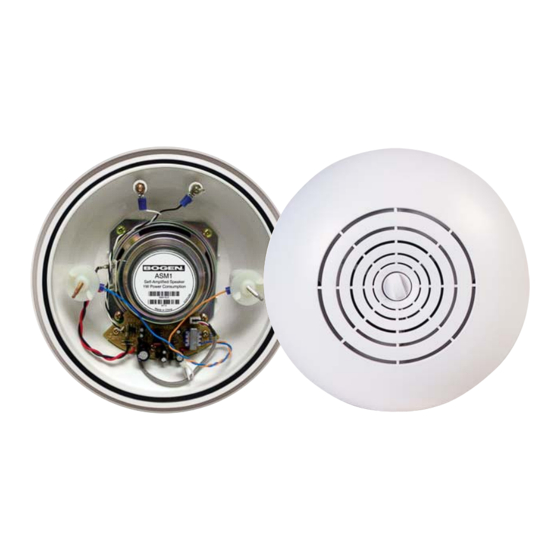

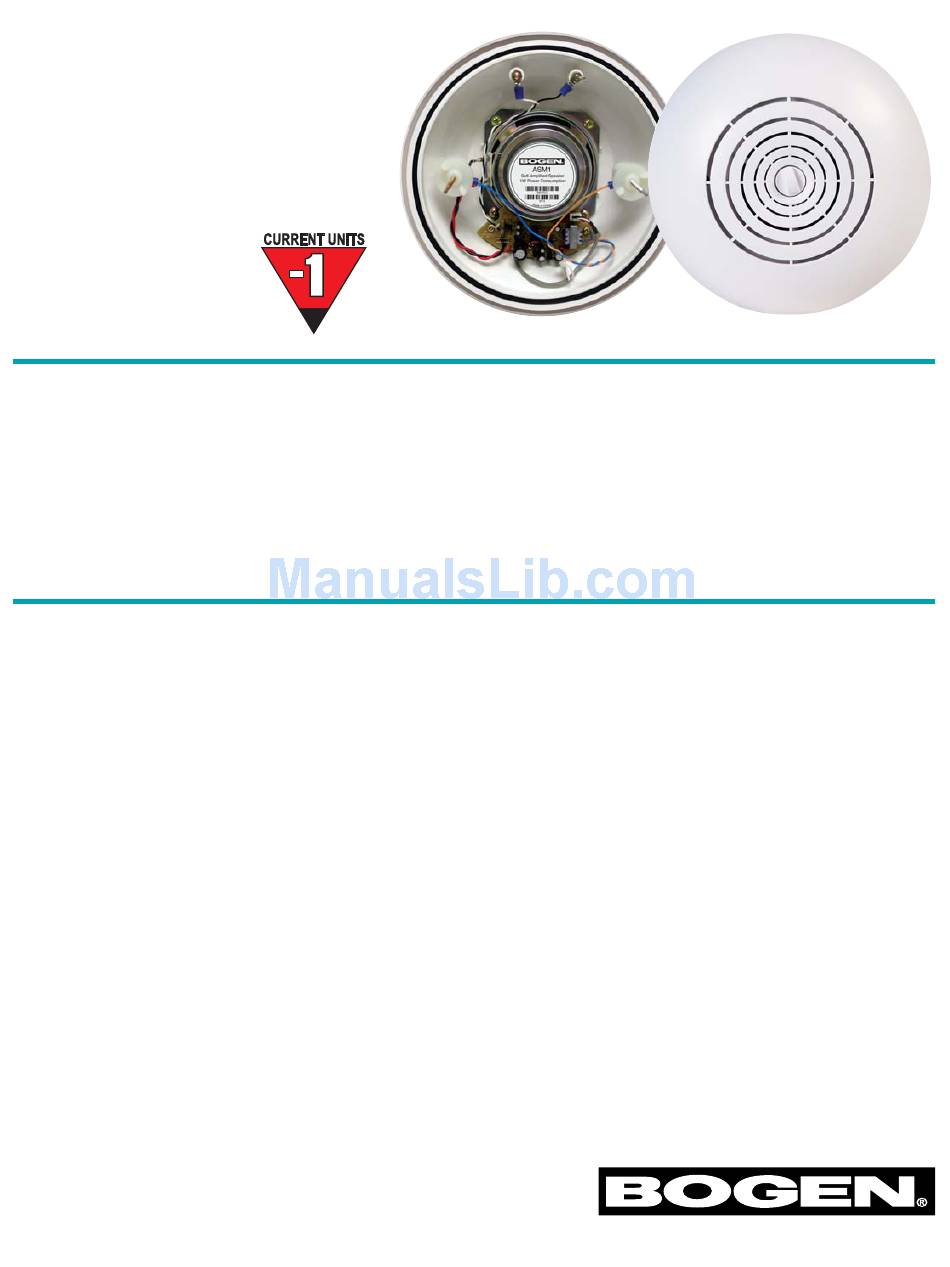

The Bogen ASM1 Easy Install
Description
cally install in less than a minute. Installation is a simple, three-step process that does not require
tools. First, four specially-designed studs pierce the ceiling tile. Second, two custom-designed wing
nuts secure the speaker to the ceiling. Third, standard wire nuts make the 24V DC power and audio
connections directly to the color-coded studs. The ASM1 is lightweight, durable, and features a low-
profile contemporary design, making it versatile enough to be installed in just about any installation
with standard ceiling tiles.
The ASM1 is a 1-watt, self-amplified speaker. There is an exterior volume control for easy balanc-
ing that is easily accessible, but doesn't attract tampering.
• Installs in less than a minute
• Self-contained 1W amplifier
Features
• High intelligibility and sensitivity
• Wide-range frequency response
• Direct and reflected sound paths create wide
dispersion angle
• Lightweight and durable plastic shell with an
off-white, paintable finish
• Simple, three-step installation process
• No tool(s) installation
• Color-coded mounting studs identify polarity
to make the power and audio connections
easier (no external wires)
• Front-mounted volume control for easy
access
• Transformer-isolated, balanced audio input
• Can be installed in any drop ceiling with stan-
dard ceiling tiles
®
®
Self-Amplified Speaker is a surface-mount speaker, designed to typi-
• Surface-mounting design eliminates need to
cut ceiling tile, no mess installation
• Contemporary design blends/matches any
decor
• O-ring seal holds speaker tight to ceiling sur-
face, eliminating whistling and ensures
smoother sound without peaks
• Textured studs easily pierce ceiling tile and
secure wire nut connections
• Wide-bottom, easy-to-handle mounting wing
nuts provide secure speaker mounting
• All necessary mounting hardware included
• Tile Bridge available for weight distribution
(model SMTB, sold separately)
• Complies with NFPA National Code 160b
and UL-2043 (Report available)
Specifications subject to change without notice.
© 2006 Bogen Communications, Inc.
Part No. 54-8023-37C 0808
Advertisement
Related Manuals for Bogen Easy Install
Summary of Contents for Bogen Easy Install
- Page 1 Easy Install ® Self-Amplified Speaker Model ASM1 The Bogen ASM1 Easy Install ® Self-Amplified Speaker is a surface-mount speaker, designed to typi- Description cally install in less than a minute. Installation is a simple, three-step process that does not require tools.
- Page 2 ABS Plastic Flame Rating: 94-5VA The speaker shall be a Bogen Model ASM1. The speaker to the ceiling tile. Four standard wire nuts speaker shall have a 1-watt amplifier. The typical cur- will connect the speaker wires to the studs. One set Architect rent consumption shall be 1 CU (50 mA).
