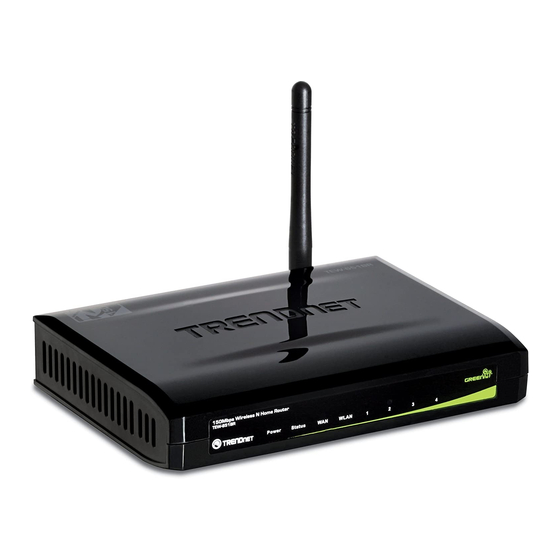

TRENDnet TEW-651BR Quick Installation Manual
Hide thumbs
Also See for TEW-651BR:
- User manual (80 pages) ,
- Quick installation manual (16 pages) ,
- Specifications (3 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for TRENDnet TEW-651BR
Summary of Contents for TRENDnet TEW-651BR
- Page 1 Quick Installation Guide TEW-651BR 2.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the Wireless Router Troubleshooting Wireless Tips Version 11.19.2010... -
Page 3: English
1. Before You Start Package Contents Ÿ TEW-651BR Ÿ CD-ROM (User's Guide) Ÿ Multi-Language Quick Installation Guide Ÿ Network Cable (1.5m/4.9ft) Ÿ Power Adapter (5V DC, 1A) System Requirements Ÿ A computer with a wired or wireless network adapter properly installed (Note: It is recommended that you configure the Wireless Router from a wired computer) Ÿ... - Page 4 Collect Internet Service Provider (ISP) Information Please verify your Internet broadband connection type with your ISP and ensure you have all the information for one of the following connection types: 1. Obtain IP Address Automatically (DHCP) Host Name (Optional) Clone Mac Address (Optional) 2.
-
Page 5: Hardware Installation
3. Disconnect the network cable from your Cable or DSL modem and your computer. 4. Connect one end of a network cable to one of the TEW-651BR's LAN ports. Connect the other end of the cable to the computer's network port. - Page 6 7. Power on your cable or DSL modem. Wait until the LEDs indicate that modem is fully booted up. Consult with the modem User's Guide for more information. 8. Verify that the following panel lights are on: Power (Green), Status (Green), LAN (Green), WAN and WLAN (Green).
-
Page 7: Configure The Wireless Router
3. Configure the Wireless Router Note: It is recommended that you configure the Wireless Router from a wired computer. 1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter. 2. Enter the User Name and Password and then click Login. - Page 8 Next. By default, the Password is admin. Note: 1.Setting a password prevents other users from accessing the TEW-651BR's configuration. 2.It is recommended that you enter a new password. If you decide to change this setting, please write down the new password.
- Page 9 9. Select Enable for Wireless LAN. Select Disable if you do not want any wireless computers or device to connect to this device. 10. Enter a unique SSID (Network Name). Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks.
-
Page 10: Register Your Product
Internet connection. Your configuration is now complete For detailed information regarding the TEW-651BR configuration and advanced settings, please refer to User's Guide included on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register... -
Page 11: Troubleshooting
Troubleshooting 1. I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-651BR's web configuration page? 1. Check your hardware settings again by following the instructions in Section 2. -
Page 12: Address Automatically
5. I cannot make a wireless connection to the Router. What should I do? 1. Double check that the WLAN light on the Router is lit. 2. Power cycle the TEW-651BR. Unplug the power to the TEW-651BR. Wait 15 seconds, then plug the power back in to the TEW-651BR. -
Page 13: Wireless Tips
Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues. - Page 14 2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall.
