Quick Installation Guide
TEW-651BR
1.04

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEW-651BR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TEW-651BR

Summary of Contents for TRENDnet TEW-651BR

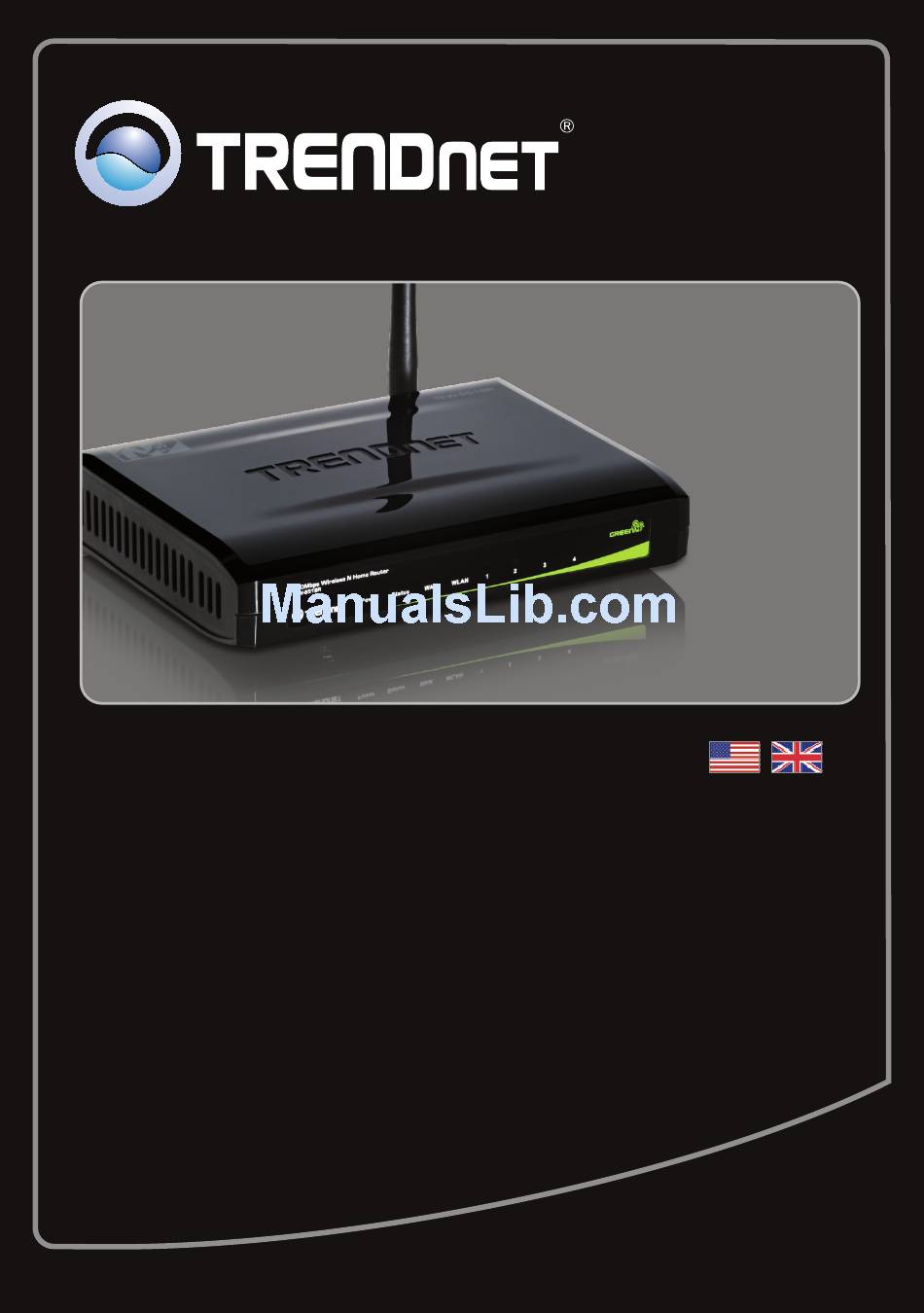

  • Page 1 Quick Installation Guide TEW-651BR 1.04...

  • Page 2: Table Of Contents

    Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the Wireless Router Troubleshooting Wireless Tips Version 08.02.2010...

  • Page 3: English

    1. Before You Start Package Contents TEW-651BR User's Guide CD-ROM Multi-Language Quick Installation Guide Cat. 5 Ethernet Cable (1.5m/4.9ft) AC Power Adapter (5V DC, 1.2A) System Requirements A computer with a wired or wireless network adapter properly installed Web Browser: Internet Explorer (5.0 or higher) Broadband Internet Installed Cable or DSL Modem...

  • Page 4: Hardware Installation

    Cable or DSL modem. Open your browser (e.g. Internet Explorer) and type in a URL (e.g. Cable/DSL Modem http://www.trendnet.com) in the address bar. 2. Connect one end of a RJ-45 cable to one of the TEW-651BR's LAN ports. Connect the other end of the cable to the computer's Ethernet port.

  • Page 5: Configure The Wireless Router

    3. Configure the Wireless Router Note: It is recommended that you configure the Wireless Router from a wired computer. 1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter. 2. Enter the User Name and Password, and then click Log In.
  • Page 6 4. Click Next. 5. Enter a Password, verify the Password and then click Next. By default, the Password is admin. 6. Select your Time Zone and then click Next. 7. Click Next. Note: Do not change default settings unless it is conflicting with your existing hardware.

  • Page 7: Register Your Product

    Internet connection. Your configuration is now complete For detailed information regarding the TEW-651BR configuration and advanced settings, please refer to User's Guide included on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...

  • Page 8: Troubleshooting

    Trouble Shooting 1. I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-651BR's web configuration page? 1. Check your hardware settings again by following the instructions in Section 2. 2.

  • Page 9: Address Automatically

    3. Contact the manufacturer of your wireless network adapter and make sure the wireless network adapter is configured with the proper SSID. The preset SSID is TRENDnet651. If you still encounter problems or have any questions regarding the TEW-651BR, please contact TRENDnet's Technical Support Department.

  • Page 10: Wireless Tips

    Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues.
  • Page 11 2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall.
  • Page 13 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
  • Page 14 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
  • Page 15 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 16 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register Copyright ©2010. All Rights Reserved. TRENDnet.
