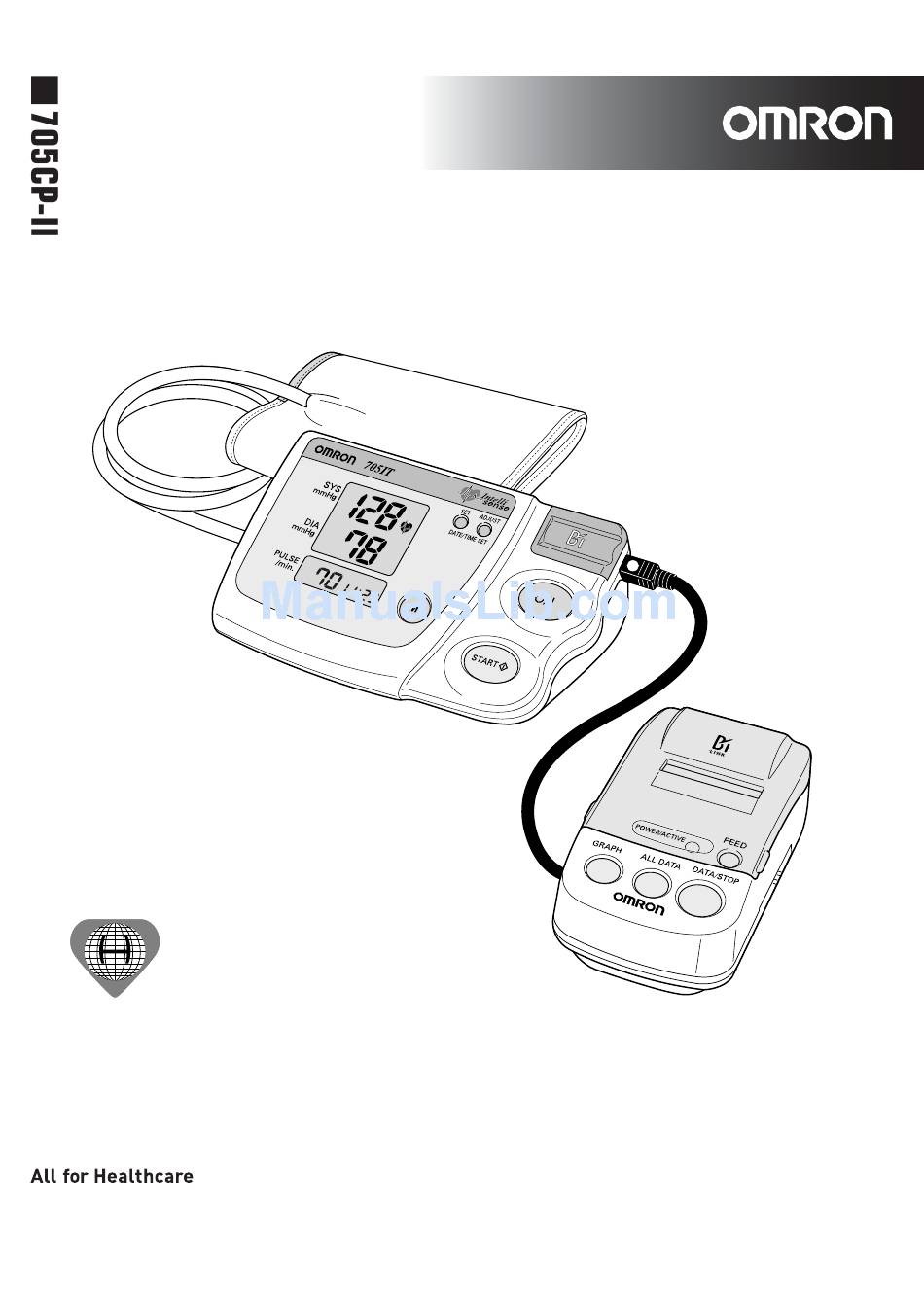

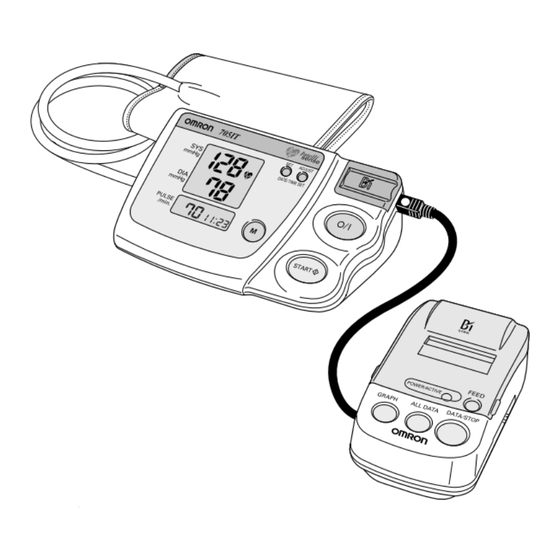

  • Page 1 Automatic Blood Pressure Monitor & Printer The World Hypertension League recommends regular blood pressure monitoring with clinically validated devices. Instruction manual page Mode demploi page 67 Gebrauchsanweisung Seite 23 Istruzioni per luso pagina 89 Gebruiksaanwijzing pagina 45 Instrucciones de uso pagina 111 IM-HEM-759-E2-02-10/2011 1628532-8F...

  • Page 2: Table Of Contents

    ........Thank you for purchasing an OMRON product. You Dear Customer can be sure you have made a wise choice.

  • Page 3: Blood Pressure Monitor

    As the worlds leading manufacturer OMRON provides a range of products for regular blood pressure monitoring. • Important: Blood pressure measurement is not Important suitable in cases of serious arterio sclerosis (hardening of the arteries).

  • Page 4: Your Blood Pressure Monitor: The Benefits

    705CP-II English Your blood OMRON 705CP-II is a compact, fully automatic blood pressure monitor, operating on the oscillometric pressure principle. It measures your blood pressure and pulse rate simply and quickly. It contains an intel ligent “fuzzy monitor: logic” system for controlled inflation, known as “Intellisense”.

  • Page 5: Battery Installation / Replacement

    705CP-II English Battery Slide the battery cover off in the direction of the arrow. installation / replacement Install or replace 4 “LR6” batteries so the + (positive) and – (negative) polarities match the polarities of the battery compartment as indicated.

  • Page 6: How To Set Time And Date

    705CP-II English How to set time Install the batteries and press the ON/OFF button. The display will show 0:00 and date Press and hold the SET button. The year digits (2002) will flash. Press the ADJUST button to advance the digit(s) one at a time.

  • Page 7: How To Apply The Cuff

    705CP-II English How to apply • You can wrap the cuff either on your right or left arm. the cuff (when wrapping on your left arm) Insert air tube to air jack (on the left side of the divice). The cuff must be airless.
  • Page 8 705CP-II English Pull the cuff so that the top and bottom edges are tightened evenly around your arm. When the cuff is positioned correctly, close the velcro fastener FIRMLY. Make certain the cuff fits snugly around your arm. The cuff should make good contact with your skin.

  • Page 9: How To Take A Reading

    705CP-II English How to take a Press the (O/I) button. reading a) All display symbols appear for approximately one second. b) When the monitor becomes ready to measure, the ( ) symbol appears on the display. Press the (START ) button and remain still.

  • Page 10: Instructions For Special Conditions

    705CP-II English When the measurement is complete, the cuff completely deflates and your blood pressure and pulse rate are displayed. NOTE : The monitor automatically stores blood pressure and pulse rate into the memory. • When 28 sets of readings are stored in memory, the oldest set will be deleted to store a new set.

  • Page 11: How To Use The Memory Function

    705CP-II English How to use the This monitor has a memory capable of storing 28 sets of readings. Every time you complete the memory measurement, the monitor automatically stores blood pressure and pulse rate. function • Turn on the monitor by pressing the (O/I) button.

  • Page 12: Hints On Taking Blood Pressure Readings

    705CP-II English Hints on taking • Before measuring, stretch your back and sit up straight, breath normally 5-6 times, relax your blood pressure shoulders, arms and entire body. • Slightly bend and support your elbow (e.g. on a readings table).

  • Page 13: Failure, Causes And Rectification

    The cuff pressure does not rise Check that the air tube is properly although the pump motor can be heard. connected to the monitor. Push the tube connector firmly into the socket. problem with mem. function Contact your Omron retailer or distributor.

  • Page 14: Maintenance And Storage

    • Do not fold the cuff or air tube together too tightly and do not crease them. • Do not carry out repairs of any kind yourself. If a defect occurs, consult the OMRON distributor or Customer Services or seek the advice of your surgical appliance stockist or pharmacist.

  • Page 15: Technical Data

    3: Supple mentary requirements for electromechani - cal blood pressure measuring systems. This OMRON product is produced under the strict quality system of OMRON HEALTHCARE CO. LTD., Japan. The Core component for OMRON blood pressure monitors, which is the Pressure Sensor, is produced in Japan.

  • Page 16: Omron Spare Parts

    It is generally recommended to have the monitor inspected every two years to ensure correct functioning and accuracy. Please consult your authorised dealer or the OMRON Customer Service at the address given on the packaging/attached AC adapter literature.

  • Page 17: Some Useful Information About Blood Pressure

    705CP-II English Some useful information about blood pressure What is Blood Pressure ? Blood pressure is a measure of the force of blood flowing against the walls of the arteries. Arterial blood pressure is constantly changing during the course of the heart s cycle.
  • Page 18 705CP-II English What Causes High Blood Pressure ? Blood pressure is only classed as high if it doesn t go down when you rest. Permanently raised blood pressure can be caused by several factors such as hardening of the arteries, smoking or drinking too much alcohol.

  • Page 19: Introduction

    705CP-II English Introduction The OMRON printer can be conected to OMRON blood pressure monitors with IT functions. Printer Cover Description Printer Cable Plug Power/Operation Light Paper Feed Print Graph Print Current Data/Stop Printing Print All Data Battery Slide the battery cover off in the direction of the arrow.

  • Page 20: How To Connect Printer Unit

    Thermal sensitive paper is supplied with the unit. Use only thermal paper of similar size (width approx. 38mm) and roll diameter (not to exceed approx. 26mm)! These rolls of paper can be ordered from OMRON. Printer paper can be ordered by your OMRON shop or distributor.

  • Page 21: How To Use The Printer Unit

    705CP-II English How to use the OMRON IT blood pressure monitors have the ability to print all the readings stored in memory. printer NOTE: • Make sure printer-unit is connected to main unit (see How to Connect Printer-Unit) • Do not use printer-unit without loading printer paper (see How to Load Printer Paper).
  • Page 22 705CP-II English • Month(s) The month or months will be printed. Example: If the blood pressure reading was stored between months March-June, then the printout will indicate “3-6”. • Date Only the day s date (1-31) will be printed. Example: If the blood pressure reading was stored on June 1st, then the printout will indicate 1 under the “D”...

  • Page 23: Troubleshooting

    Error Indicator Cause Correction Printer cable plug is not Connect correctly reference p.10 connected properly or damaged Contact your OMRON distributor. Nothing is printed Replace with new batteries Batteries are worn No readings stored Take measurement then print Printer paper is not installed...
