7 Series Upper Arm Blood Pressure Monitor
Model BP7360
Instruction Manual
3146805-6D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP7360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omron BP7360

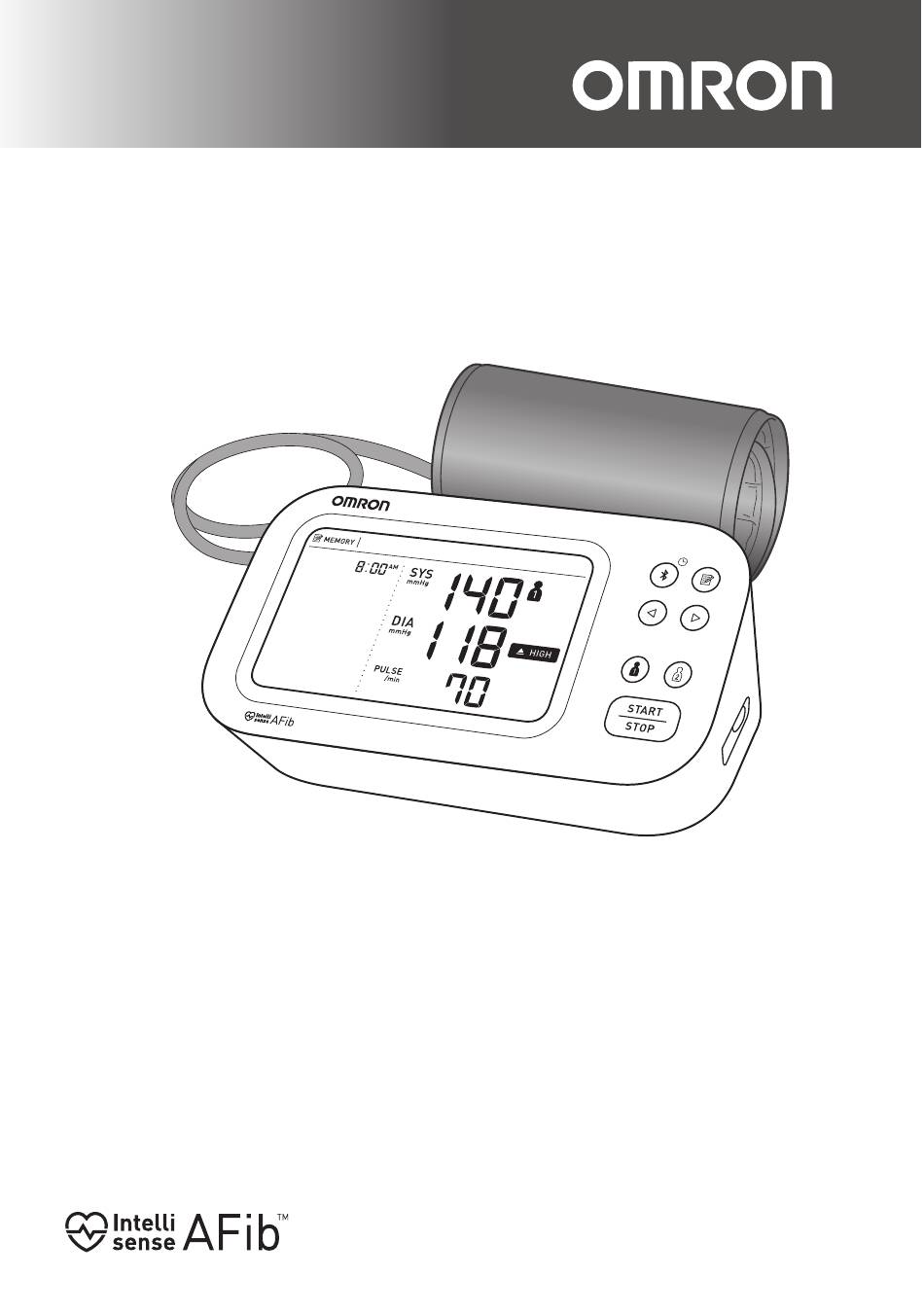

  • Page 1 7 Series Upper Arm Blood Pressure Monitor Model BP7360 Instruction Manual 3146805-6D...
  • Page 2: Table Of Contents

    Table of Contents Introduction .............2 9. FCC Statement ......... 42 Safety Instructions ..........2 10. Limited Warranty ........43 Intended Use ............2 11. Guidance and Manufacturer’s  Receiving and Inspection ....... 3 Declaration ..........45 Symbols Glossary ..........3 Important Safety Information ......4 12.
  • Page 3: Introduction

    Introduction Thank you for purchasing the OMRON BP7360 Upper Arm Blood Pressure Monitor. This monitor can be used by multiple users. This blood pressure monitor uses the oscillometric method of blood pressure measurement. This means this monitor detects your blood movement through your brachial artery and converts the movements into a digital reading.
  • Page 4: Receiving And Inspection

    Introduction Receiving and Inspection Remove this monitor and other components from the packaging and inspect for damage. If this monitor or any other components is damaged, DO NOT USE and contact 1-800-634-4350. Symbols Glossary For symbol information, visit: OmronHealthcare.com/symbols-glossary...
  • Page 5: Important Safety Information

    Important Safety Information Read the Important Safety Information in this instruction manual before using this monitor. Follow this instruction manual thoroughly for your safety. Keep for future reference. For specific information about your own blood pressure, CONSULT WITH YOUR PHYSICIAN. ...
  • Page 6 Important Safety Information • The possible AFib detection feature evaluates for a possibility of AFib ONLY. It will NOT detect other potentially life-threatening arrhythmias or diseases, such as a possibility of other cardiac arrhythmias or heart attack. • This monitor is not intended for the diagnosis, treatment, or management of AFib. Data Transmission •...
  • Page 7 Important Safety Information • Rest for at least 5 minutes before taking a measurement. • Remove tight-fitting or thick clothing from your arm while taking a measurement. • Remain still and DO NOT talk while taking a measurement. • ONLY use the arm cuff on persons whose arm circumference is within the specified range of the cuff.
  • Page 8 Important Safety Information • ONLY use the AC adapter, arm cuff, batteries and accessories specified for this monitor. Use of unsupported AC adapters, arm cuffs and batteries may damage and/or may be hazardous to this monitor. • ONLY use the approved arm cuff for this monitor. Use of other arm cuffs may result in incorrect readings.
  • Page 9: Know Your Monitor

    1. Know Your Monitor Contents/Product Includes Monitor, Easy-Wrap ComFit Cuff, 4 “AA” batteries, instruction manual, quick start guide Monitor and Arm Cuff Front of the monitor Display [Connection] button (Date/Time) [Memory] button [Forward]/[Backward] buttons [User ID 1]/[User ID 2] buttons [START/STOP] button...
  • Page 10 1. Know Your Monitor Left and right side of the monitor Air jack AC adapter jack (for optional AC adapter) Bottom of the monitor Battery compartment Arm cuff (Upper arm circumference: 9" - 17" (22 - 42 cm)) Air plug Air tube...
  • Page 11: Display And Symbols

    1. Know Your Monitor Display and Symbols Average value symbol Pulse display / Memory number Memory symbol Bluetooth ON / OFF symbol Date / Time display Sync symbol Low battery symbol /  Systolic blood pressure reading Depleted battery symbol Diastolic blood pressure reading / AF User ID (1/2/Guest) symbol...
  • Page 12 1. Know Your Monitor Average value symbol Flashes when viewing the average of the latest 2 or 3 readings taken within the most recent 10 minute timeframe. Memory symbol Appears when viewing readings stored in the memory. Date / Time display Systolic blood pressure reading Diastolic blood pressure reading / AF Heartbeat symbol...
  • Page 13 1. Know Your Monitor Pulse display / Memory number • Pulse rate appears after the measurement. • When pressing the button, the memory number appears for approximately 2 seconds before the pulse rate appears on the display. Bluetooth ON symbol Appears when your readings are being transferred.
  • Page 14 1. Know Your Monitor High symbol Appears if your systolic blood pressure is ≥ 130 mmHg or the diastolic blood pressure is ≥ 80 mmHg. Refer to sub-section 1.4 for more information. OK symbol Flashes when your monitor is connected to your smart device or readings are transferred successfully.
  • Page 15: Classification Of Bp (Blood Pressure)

    1. Know Your Monitor Movement error symbol Appears with your reading when your body is moving during a measurement. If it appears, remove the arm cuff and wait for about 1 minute. Then, reapply the cuff, remain still and take another measurement.
  • Page 16: Preparation

    2. Preparation Installing Batteries 1. Remove the battery cover. 2. Insert 4 “AA” batteries as indicated in the battery compartment.  3. Close the battery cover. As soon as the batteries are correctly installed, the year flashes on the display. Refer to sub-section 2.2 to set the date and time manually, or refer to sub-section 4.1 to pair your monitor with a smart device to set the date and time automatically.
  • Page 17: Setting The Date And Time

    • The date and time will automatically be set when the monitor is paired with the compatible OMRON app. Refer to sub-section 4.1. • As soon as the batteries are correctly installed, the year flashes on the display of your monitor.
  • Page 18 2. Preparation 3. Press the button to confirm the year, then the month will flash. Repeat the same steps to adjust the month, day, hour, and minute. Year Month Hour Minute  4. Press the button to store the setting. ...
  • Page 19: Blood Pressure Measurement Tips

    2. Preparation Blood Pressure Measurement Tips To help ensure an accurate reading, follow these directions: • Stress raises blood pressure. Avoid taking measurements during stressful times. • Measurements should be taken in a quiet place. • It is important to take measurements at the same times each day. Taking measurements in the morning and in the evening is recommended.
  • Page 20: Applying The Arm Cuff

    2. Preparation Applying the Arm Cuff Note • The following steps are for applying the arm cuff to your left arm. • To take a measurement on your right arm, follow the cuff and tube placement instructions for use on your right arm mentioned under “To take a measurement on your right arm”...
  • Page 21 2. Preparation 2. Apply the arm cuff to your left upper arm. 0.5 inch (1 to 2 cm) Inside elbow Bottom edge Note • The bottom edge of the arm cuff should be 0.5 inch (1 to 2 cm) above the inside elbow. The air tube is on the inside of your arm (palm facing up) and aligned with your middle finger.
  • Page 22: Sitting Correctly

    2. Preparation To take a measurement on your right arm When you take a measurement on your right arm, the air tube should run along the side of your elbow, along the bottom of your arm. Be careful not to rest your arm on the air tube. Inside elbow ...
  • Page 23: Using Your Monitor Without A Smart Device

    3. Using Your Monitor without a Smart Device Taking a Measurement You can use your monitor without pairing to a smart device. To pair your monitor with a smart device, refer to sub-section 4.1. Your monitor is designed to take measurements and store the readings in the memory for 2 people.
  • Page 24 3. Using Your Monitor without a Smart Device 3. Remain still and do not talk until the entire measurement process is complete. START INFLATING COMPLETED DEFLATING The “ ” symbol flashes at every heartbeat. The pulse level moves along with the pulse strength detected while deflating.
  • Page 25 3. Using Your Monitor without a Smart Device If the monitor detects a possibility of AFib... The “ ” symbol flashes on the display. Generally, blood pressure and pulse rate measured during AFib cannot be reliable. Therefore, the readings are not displayed when a possibility of AFib is detected.
  • Page 26: Using The Guest Mode

    3. Using Your Monitor without a Smart Device Using the Guest Mode Your monitor stores readings for 2 users in the memory. The guest mode can be used to take a single measurement for another user. Note • No readings are stored in the memory. 1.
  • Page 27 3. Using Your Monitor without a Smart Device  If your systolic pressure is more than 210 mmHg If your systolic pressure is more than 210 mmHg, take a measurement manually. After the arm cuff starts to inflate, press and hold the [START/STOP] button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.
  • Page 28: Device

     3. Download and install the compatible OMRON app onto your smart device. If you already have the compatible OMRON app and have created your account, open the app and add your new monitor.  4. Open the app and follow the pairing instructions shown on your smart device.
  • Page 29 • If the “Err” appears, follow the instructions in the app. • Your monitor automatically turns off after 10 seconds. • Be aware that OMRON will not be responsible for the loss of data and/or information in the app. • Only compatible OMRON apps should be used with this monitor to help ensure correct data transfer.
  • Page 30: Taking A Measurement

    4. Using Your Monitor with a Smart Device Taking a Measurement Refer to sub-section 3.1 to start a measurement. Open the app on your smart device and follow the instructions.  Caution • During measurement, make sure that no mobile device or any other electrical device that emits electromagnetic fields is within 12 inches (30 cm) of this monitor.
  • Page 31 4. Using Your Monitor with a Smart Device 2. Press the [START/STOP] button to turn your monitor off. Note • To enable Bluetooth, press and hold the button for more than 2 seconds. “on” appears on the display. • Your monitor automatically turns off 10 seconds after the completion.
  • Page 32: Using Memory Function

    5. Using Memory Function This monitor can store readings for up to 2 users, and automatically stores up to 60 readings per user. Note • Make sure you remember which user ID stores your own readings. Viewing the Readings Stored in Memory 1.
  • Page 33 5. Using Memory Function Note • If the reading was high (refer to sub-section 1.4), the “ ” symbol appears. • If a possibility of AFib was detected during a measurement, the “ ” symbol flashes on the display. Generally, blood pressure and pulse rate measured during AFib cannot be reliable.
  • Page 34: Viewing The Average Reading

    5. Using Memory Function Viewing the Average Reading Your monitor can calculate an average reading based on the latest 2 or 3 readings taken within the most recent 10 minute timeframe. Note • Set your monitor to the correct date and time before taking a measurement to view the average readings.
  • Page 35: Other Settings

    6. Other Settings Deleting All Readings Stored in Memory 1. Press the button to select your user ID.  2. Press the button. After a memory number appears, the latest reading will appear.  3. While holding the button down, press and hold the [START/STOP] button for more than 3 seconds.
  • Page 36: Restoring Your Monitor To The Default Settings

    6. Other Settings Restoring Your Monitor to the Default Settings To delete all the information stored in your monitor, follow the instructions below. Make sure that your monitor is turned off. 1. While holding the button down, press and hold the [START/STOP] button for more than 3 seconds.
  • Page 37: Error Messages And Troubleshooting

    7. Error Messages and Troubleshooting If any of the below problems occur during measurement, check to make sure that no other electrical device is within 12 inches (30 cm) of the monitor. If the problem persists, refer to the table below. Display/ Possible Cause Solution...
  • Page 38 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem Moving or talking during a measurement results in Remain still and do not talk vibrations that disrupt the during a measurement. appears measurement. Apply the arm cuff correctly, then take another measurement.
  • Page 39 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem Apply the arm cuff Irregular correctly, then take another heartbeat measurement. Refer to symbol appears sub-section 2.4. Remain still and sit correctly during a The pulse rate is not measurement. detected correctly.
  • Page 40 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem There are more than 48 readings in memory to be transferred. Pair or transfer your flashes readings to the app so you The date and time are not can keep them in memory set.
  • Page 41 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem Follow the instructions shown in the smart device, or Any other visit the “Help” section in the app for further help. If the communication problem still persists, contact customer service. Refer issue occurs.
  • Page 42: Maintenance

    8. Maintenance Maintenance To protect your monitor from damage, follow the directions below: • Changes or modifications not approved by the manufacturer will void the user warranty.  Caution • DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.
  • Page 43: Fcc Statement

    9. FCC Statement FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 44: Limited Warranty

    10. Limited Warranty Your BP7360 Blood Pressure Monitor, excluding the arm cuff and batteries, is warranted to be free from defects in materials and workmanship appearing within 5 years from the date of purchase, when used in accordance with the instructions provided with the monitor. The arm cuff...
  • Page 45 10. Limited Warranty This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you. FOR CUSTOMER SERVICE Visit our web site at: OmronHealthcare.com Call toll free:...
  • Page 46: Declaration

    BP7360 on the website. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OMRON HEALTHCARE Co., Ltd. is under license. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
  • Page 47: What Is Possible Afib

    12. What is Possible AFib? What is Blood Pressure? Blood pressure is a measure of the force of blood flowing against the walls of the arteries. Arterial blood pressure is constantly changing during the course of the heart’s cycle. The highest pressure in the cycle is called the Systolic Blood Pressure; the lowest is the Diastolic Blood Pressure.
  • Page 48 12. What is Possible AFib? The possible AFib detection feature ONLY evaluates for a possibility of AFib after taking a measurement. It does NOT continuously monitor your heart and therefore cannot alert you if AFib happens at any other time. This monitor cannot detect all forms of AFib.
  • Page 49 12. What is Possible AFib? What is the difference between the possible AFib detection feature and EKG? The possible AFib detection feature uses pulse wave detection to detect a possibility of AFib. EKG measures the electrical activity of the heart and can be used by a physician to diagnose AFib.
  • Page 50 12. What is Possible AFib? Is the blood pressure reading reliable when the “ ” symbol flashes or the irregular heartbeat symbol “ ” appears? AFib or an irregular heartbeat can influence your blood pressure measurements and make it difficult to get an accurate reading. Therefore, the readings are not displayed when a possibility of AFib is detected.
  • Page 51: Optional Accessories

    13. Optional Accessories Easy-Wrap ComFit Cuff Arm circumference 9" - 17" (22 - 42 cm) Model: HEM-FL31-B HEM-FL31-BZ Note • Do not throw the air plug away. The air plug can be applicable to the optional cuff. AC Adapter Model: HEM-ADPTW5 For further information, visit our website at OmronHealthcare.com...
  • Page 52: Using The Ac Adapter (Optional Accessory)

    13. Optional Accessories Using the AC Adapter (optional accessory) Note • Make sure not to place your monitor in a location where it is difficult to plug and unplug the AC adapter. • It is recommended that you keep the batteries in your monitor at all times, even if you choose to use the AC adapter.
  • Page 53: Specifications

    14. Specifications Model BP7360 HEM-7376T1-Z Display LCD digital display Cuff pressure range 0 to 299 mmHg Blood pressure SYS: 60 to 260 mmHg measurement range DIA: 40 to 215 mmHg Pulse measurement 40 to 180 beats / min. range Pressure: ±3 mmHg Accuracy Pulse: ±5 % of display reading...
  • Page 54 14. Specifications Monitor: Approximately 15.5 oz. (440 g) not Weight including batteries Arm cuff: Approximately 5.8 oz. (163 g) Monitor: Approximately 7.5" (w) × 3.3" (h) × 4.6" (l) (191 mm × 85 mm × 117 mm) Dimensions Arm cuff: Approximately 5.7" × 20.9" (air tube: 29.5") (145 mm ×...
  • Page 55 14. Specifications Note • These specifications are subject to change without notice. • This monitor is clinically investigated according to the requirements of ISO 81060-2:2013 and complies with ISO 81060-2:2013 and ISO 81060-2:2018+A1:2020. In the clinical validation study, K5 was used on 85 subjects in general population for determination of diastolic blood pressure.
  • Page 56 14. Specifications About a wireless communication interference The Bluetooth option in the product is used to connect to dedicated apps on mobile devices to synchronize date/time data from mobile device to the product, and to synchronize measurement data from the product to mobile device.
  • Page 57 OMRON HEALTHCARE Co., Ltd. 53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN Distributed by: OMRON HEALTHCARE, INC. 2895 Greenspoint Pkwy. Hoffman Estates, IL 60169 USA OmronHealthcare.com © 2024 OMRON HEALTHCARE, INC. Made in Vietnam...
