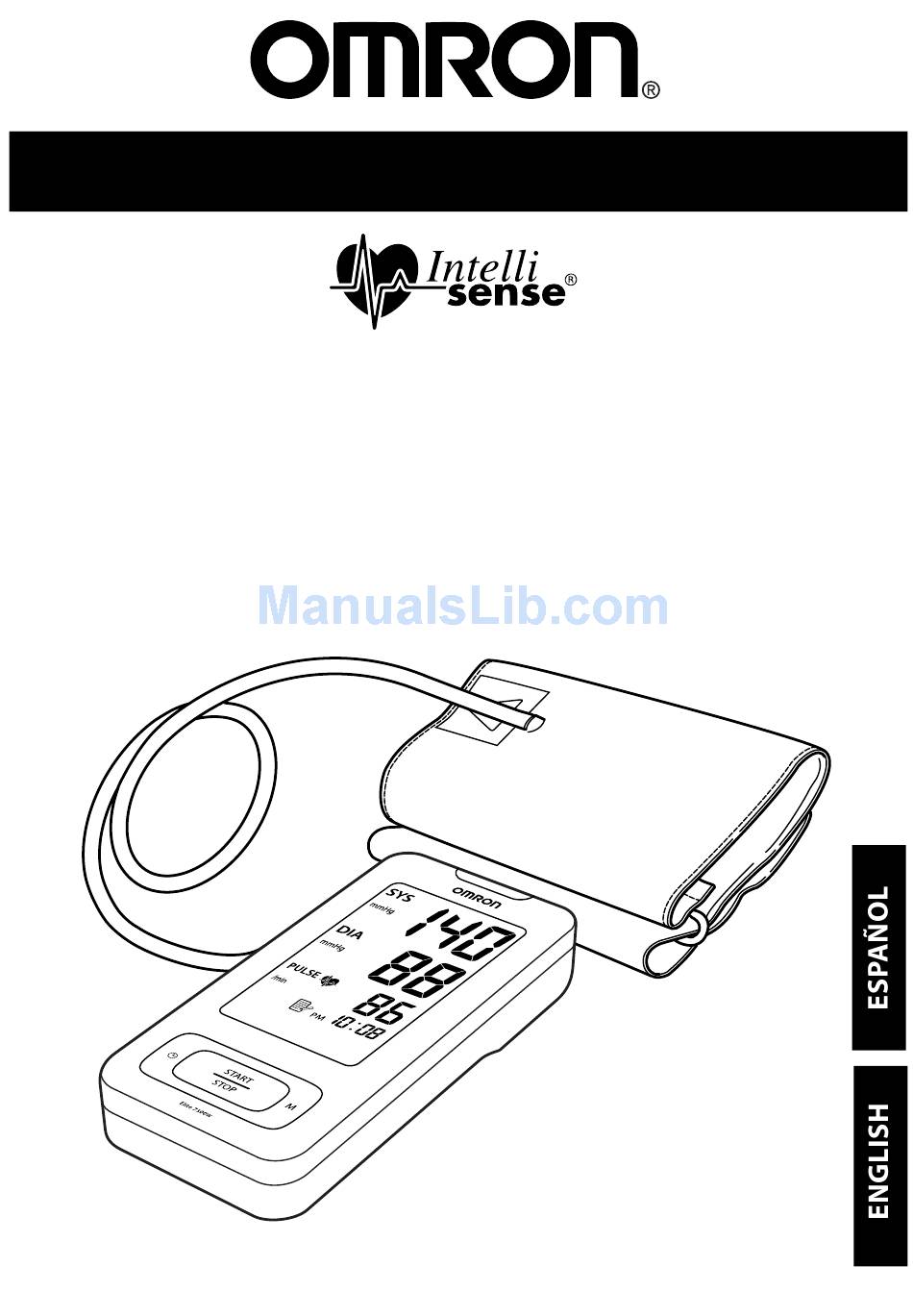

- Page 1 INSTRUCTION MANUAL Women’s Advanced Automatic Blood Pressure Monitor with Two Cuffs Elite 7300W Model...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Before Using the Monitor Introduction ...........3 Safety Information . -
Page 3: Before Using The Monitor
The Elite 7300W IntelliSense Pressure Monitor is intended for home use. While the Omron Elite 7300W is designed for women, it has also been clinically proven accurate for all adults, regardless of gender. So you can be assured that this product can be used by men and women. -
Page 4: Safety Information
SAFETY INFORMATION To assure the correct use of the product basic safety measures should always be followed including the warnings and cautions listed in this instruction manual. SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL WARNING CAUTION OPERATING THE DEVICE Contact your physician for specific information about your blood pressure. - Page 5 SAFETY INFORMATION OPERATING THE DEVICE (continued) This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions. Inflating to a higher pressure may result in bruising where the cuff is applied.
-
Page 6: Care And Maintenance
Do not submerge the device or any of the components in water. Store the device and the components in a clean, safe location. Changes or modification not approved by Omron Healthcare will void the user warranty. Do not disassemble or attempt to repair the unit or... -
Page 7: Before Taking A Measurement
BEFORE TAKING A MEASUREMENT To ensure a reliable reading follow these recommendations: 1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times. -
Page 8: Operating Instructions

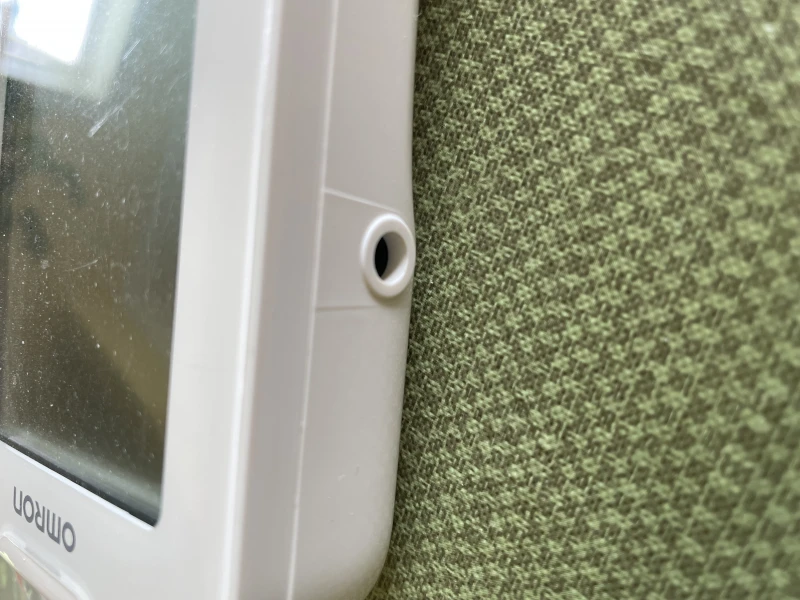

Operating Instructions KNOW YOUR UNIT Main Unit: Display Air Jack Date/Time Setting Button ( ) Memory Button ( Start/Stop Button Battery Compartment... -
Page 9: Arm Cuffs
Stylish Zipper Case QUICK GUIDE Thank you for purchasing the Omron ¤ Elite 7300W IntelliSense ¤ Women s Advanced Automatic Blood Pressure Monitor. There are two cuffs included in this unit, standard size and large size. This sheet simply explains how to choose the correct size cuff with Cuff Guide. -
Page 10: Unit Display
UNIT DISPLAY Systolic Blood Pressure Diastolic Blood Pressure Heartbeat Symbol/ Medication Symbol Hypertension Indicator Pulse Display Deflation Symbol Memory Symbol Date/Time Display Average Value Symbol Low Battery Indicator Guest Symbol Movement Error Symbol Irregular Heartbeat Symbol... -
Page 11: Display Symbols
IRREGULAR HEARTBEAT SYMBOL ( When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol ( display with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is more than 25% slower or 25% faster from the average rhythm detected while the monitor is measuring the systolic blood pressure and the diastolic... -
Page 12: Heartbeat Symbol/Hypertension Indicator
HEARTBEAT SYMBOL/HYPERTENSION INDICATOR ( TAKING A MEASUREMENT The Heartbeat Symbol ( measurement. The Heartbeat Symbol ( heartbeat. When the measurement is complete, the Heartbeat Symbol ( flashes on the display with your blood pressure and pulse rate if the reading is above 135 for the Systolic Blood Pressure value and/or 85 for the Diastolic Blood Pressure value. - Page 13 Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider. Omron Healthcare recommends you contact your physician if the Heartbeat Symbol ( values. American Heart Association Scientific Statement 2004...
-
Page 14: Battery Installation
BATTERY INSTALLATION 1. Press the indicator on the battery cover and slide the cover off in the direction of the arrow. 2. Install 4 “AAA” size batteries so the + (positive) and – (negative) polarities match the polarities of the battery compartment as indicated. - Page 15 BATTERY INSTALLATION BATTERY REPLACEMENT When the Low Battery Indicator appears on the display screen, turn the monitor off and remove all the batteries. Replace with four new batteries at the same time. WARNING If battery fluid should get in your eyes, immediately rinse with plenty of clean water.
-
Page 16: Setting The Date And Time
The Blood Pressure Monitor automatically stores up to 84 individual measurements values with the dates and times. The monitor can also calculate an average reading based on the three most recent measurements taken within 10 minutes. - Page 17 SETTING THE DATE AND TIME 2. SETTING THE YEAR The year can be set between 2008 and 2030. When the display reaches 2030, it will return to 2008. Press the Memory button ( increments of one year. Press the Date/Time Setting button ( ) to set the current year.
- Page 18 SETTING THE DATE AND TIME 4. SETTING THE DAY Press the Memory button ( Press the Date/Time Setting button ( ) to set the current day. The hour flashes on the display. 5. SETTING THE HOUR The time is set using AM or PM. Press the Memory button ( Press the Date/Time Setting button ( ) to set the current hour.
- Page 19 SETTING THE DATE AND TIME RESETTING THE DATE AND TIME To adjust the date or time after it has been setup when you first use the unit. Start with the monitor in the off position. 1. Press and hold the Date/Time Setting button ( ). The Medication Symbol ( oFF) will appear on the display.
-
Page 20: Setting The Medication Reminder Alarm
S S E E T T T T I I N N G G T T H H E E M M E E D D I I C C A A T T I I O O N N R R E E M M I I N N D D E E R R A A L L A A R R M M The Medication Reminder Alarm can be set to sound twice a day to alert the user to take a medication. - Page 21 S S E E T T T T I I N N G G T T H H E E M M E E D D I I C C A A T T I I O O N N R R E E M M I I N N D D E E R R A A L L A A R R M M 2.
- Page 22 S S E E T T T T I I N N G G T T H H E E M M E E D D I I C C A A T T I I O O N N R R E E M M I I N N D D E E R R A A L L A A R R M M 4.
- Page 23 S S E E T T T T I I N N G G T T H H E E M M E E D D I I C C A A T T I I O O N N R R E E M M I I N N D D E E R R A A L L A A R R M M 6.
-
Page 24: Applying The Arm Cuff
APPLYING THE ARM CUFF CAUTION Read all of the information in the instruction manual and any other literature in the box before operating the unit. CAUTION This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions. -
Page 25: Applying The Cuff On The Left Arm
APPLYING THE ARM CUFF 2. Fit the looped Cuff Guide on your upper arm. 3. Cuff Guide shows your correct cuff. Use the cuff with same colored sticker. Orange Purple APPLYING THE CUFF ON THE LEFT ARM 1. Make sure the air plug is securely inserted in the main unit. Use the Standard Cuff Use the Large Cuff... - Page 26 APPLYING THE ARM CUFF 2. Remove tight-fitting clothing from your upper left arm. 3. Apply the cuff to your left upper arm so the blue arrow is centered on the inside of your arm and aligned with your middle finger. The air tube runs down the inside of your arm.
- Page 27 APPLYING THE ARM CUFF APPLYING THE CUFF ON THE RIGHT ARM When taking a measurement using the right arm use this instruction for Step 3 on page 26. Apply the cuff to your right upper arm so the blue arrow and the air tube runs along the inside of your elbow.
-
Page 28: Taking A Measurement
TAKING A MEASUREMENT 1. Sit in a chair with your feet flat on the floor. Place your left arm on a table so the cuff is level with your heart. 2. Press the START/STOP button. All symbols appear on the display. The cuff starts to inflate automatically. - Page 29 TAKING A MEASUREMENT 3. When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed. 4. Press the START/STOP button to turn the monitor off. NOTE: The monitor will automatically turn off after two minutes.
-
Page 30: Using The Guest Mode
TAKING A MEASUREMENT USING THE GUEST MODE The monitor is designed to take measurements and store the measurement values in the memory for one person. The monitor can also be used to take a single measurement for other persons using the GUEST Mode. -
Page 31: Using The Memory Function
USING THE MEMORY FUNCTION Every time you complete a measurement the monitor stores the blood pressure and pulse rate in the memory. The monitor automatically stores up to 84 sets of measurement values (blood pressure and pulse rate). When 84 sets of measurement values are stored, the oldest record is deleted to save the most recent values. - Page 32 USING THE MEMORY FUNCTION 2. Press the Memory button ( measurement values on the screen. The values are displayed from the most recent to the oldest. NOTE: The date and time are alternately displayed with the measurement values. Press the Memory button ( display the next set of values.
-
Page 33: To Delete All Values Stored In The Memory
USING THE MEMORY FUNCTION TO DELETE ALL VALUES STORED IN THE MEMORY You cannot partially delete values stored in the memory. 1. Press the Memory button ( 2. Press the Memory button ( again. While holding it down, press the START/STOP button together for more than 5 seconds. -
Page 34: Care And Maintenance
CARE AND MAINTENANCE To keep your digital blood pressure monitor in the best condition and protect the unit from damage, follow the directions listed below: Keep the monitor in the Stylish Zipper Case when not in use. Do not forcefully bend the arm cuff or air tube. Do not fold tightly. - Page 35 CARE AND MAINTENANCE Use the unit consistent with the instruction provided in this manual. CAUTION Changes or modification not approved by Omron Healthcare will void the user warranty. Do not disassemble or attempt to repair the unit or components. CAUTION Use only Omron authorized parts and accessories.
-
Page 36: Error Indicators And Troubleshooting Tips
ERROR INDICATORS AND TROUBLESHOOTING TIPS ERROR INDICATORS SYMBOL Cuff over-inflated Monitor could not detect pulse wave. Air plug is not connected. A malfunction has occured. Batteries are worn CAUSE Remove the arm cuff. Read, “Taking a Measurement”. Take another measurement. Take another measurement and remain still until the measurement is complete. -
Page 37: Troubleshooting Tips
ERROR INDICATORS AND TROUBLESHOOTING TIPS TROUBLESHOOTING TIPS PROBLEM No power. No display appears on the unit. Measurement values appear too high or too low. CAUSES AND SOLUTIONS Replace all four batteries with new ones. Check the battery installation for proper placement of the battery polarities. -
Page 38: Fcc Statement
FCC STATEMENT NOTE: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 39: Warranty
Repair or replacement is our only responsibility and your only remedy under the above warranties. To obtain warranty service contact Omron Healthcare for the address of the repair location. Shipping instructions and repair information is available by calling 1-800-634-4350 or visit our website at www.omronhealthcare.com. -
Page 40: Specifications
Main Unit Weight: Main Unit Dimensions: Approximately 6 3/16" (l) Cuff Size: Cuff Circumference: SPECIFICATIONS Elite 7300W LCD Digital Display Pressure: 0 to 299 mmHg, Pulse: 40 to 180/min. Pressure: ±3mmHg or 2% of reading Pulse: ±5% of reading Automatic by electric pump... - Page 41 Memory: Contents: UPC Code: NOTE: These specifications are subject to change without notice. SPECIFICATIONS Up to 84 readings Main Unit, Standard and Large Arm Cuffs, Instruction Manual, 4 “AAA” batteries, Stylish Zipper Case, Quick Guide, Warranty Card and Cuff Guide 0 73796 73000 0...
- Page 42 Manufactured by OMRON HEALTHCARE Made in China Distributed by: OMRON HEALTHCARE, INC. 1200 Lakeside Drive Bannockburn, Illinois 60015 www.omronhealthcare.com Copyright © 2007 Omron Healthcare, Inc.
