11. Touch the "Menu" button to return to "Utilities" menu.
Touch the "Menu button again to return to the "Main"
menu.
STORED CODES
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
ADJUST BACKLIGHT
UTILITIES
MODBUS SETUP

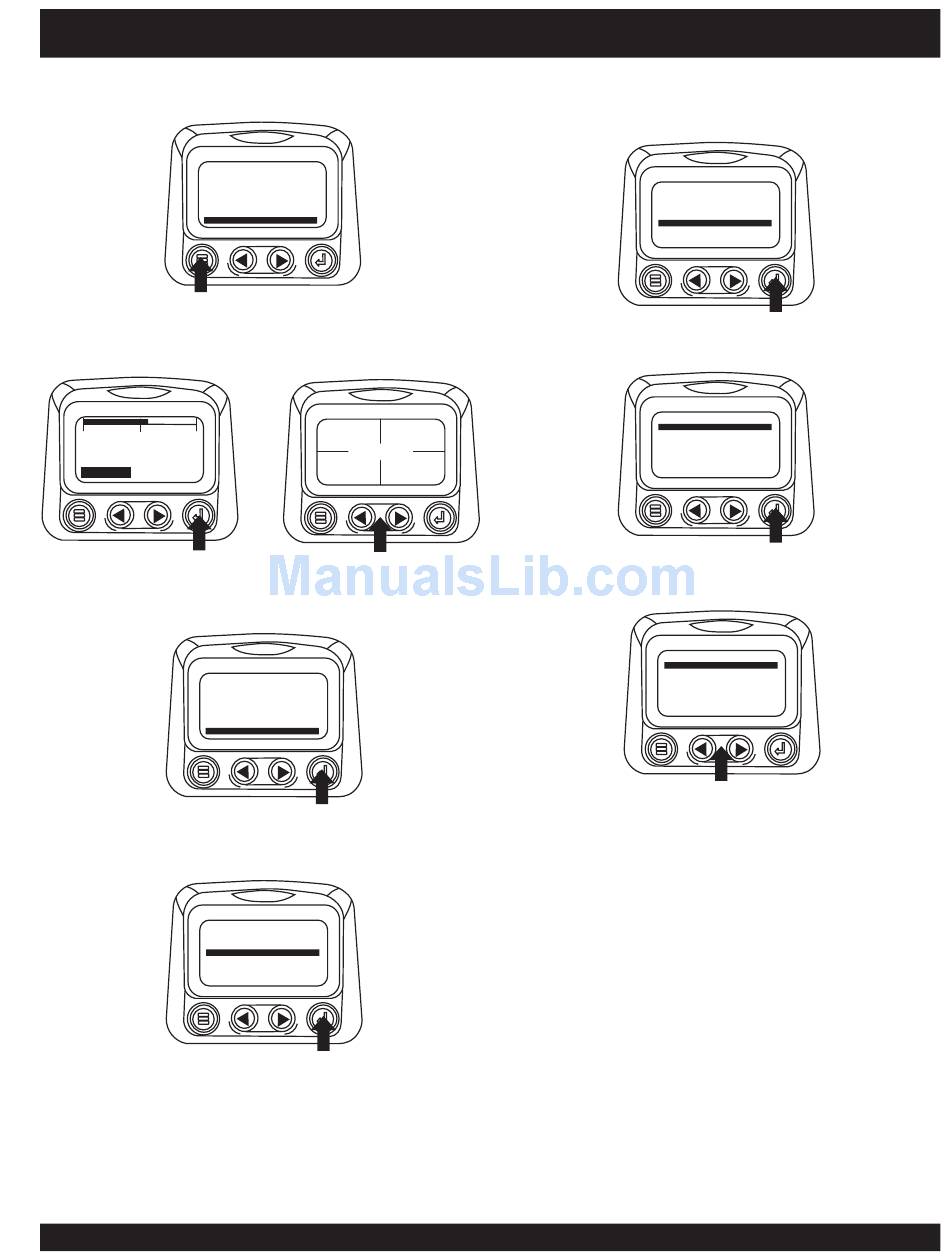

1. Starting at the single or four engine parameter display,
touch the "Menu Button".
0 1500 3000
1800 RPM
ENG RPM
COOL TEMP
2. The main menu will be displayed. Use the "Arrow
Buttons" to scroll through the menu until the "Utilities"
is highlighted, then touch "Enter".
STORED CODES
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
ADJUST BACKLIGHT
UTILITIES
3. Once in the "Utilities" menu use the "Arrows" to scroll
through the menu until the "Modbus Setup" menu is
highlighted, then touch "Enter".
GAGE DATA
REMOVE ALL GAGES
SOFTWARE VERSION
MODBUS SETUP
FAULT CONVERSION
DCA-220SSJ/SSJU — OPERATION AND PARTS MANUAL — REV. #0 (02/04/14) — PAGE 35
DCA-220SSJ/SSJU — DIAGNOSTIC DISPLAY
G
98% 1000 RPM
LOAD RPM ENG RPM
14.2 57 PSI
BATT VOLT
OIL PRES
G
4. Use the "Arrows" to scroll down to and highlight either
the "Slave Active or Master Active" modes. Touch the
"Enter" button to toggle between master and slave.
USE FACTORY DEFAULT
SERIAL PORT SETUP
SOFTWARE VERSION
SLAVE ADDRESS SETUP
MASTER ACTIVE
5. Use the "Arrows" to scroll to the "Serial Port" menu to
highlight it, then touch "Enter".
USE FACTORY DEFAULT
SERIAL PORT SETUP
SOFTWARE VERSION
SLAVE ADDRESS SETUP
MASTER ACTIVE
6. Use the "Arrow" button to scroll to each selection to
configure the MODBUS values for your application.
BAUD RATE
PARITY
DATA BITS
STOP BITS
7. When finished, touch "Menu" to return to the previous
screen.
