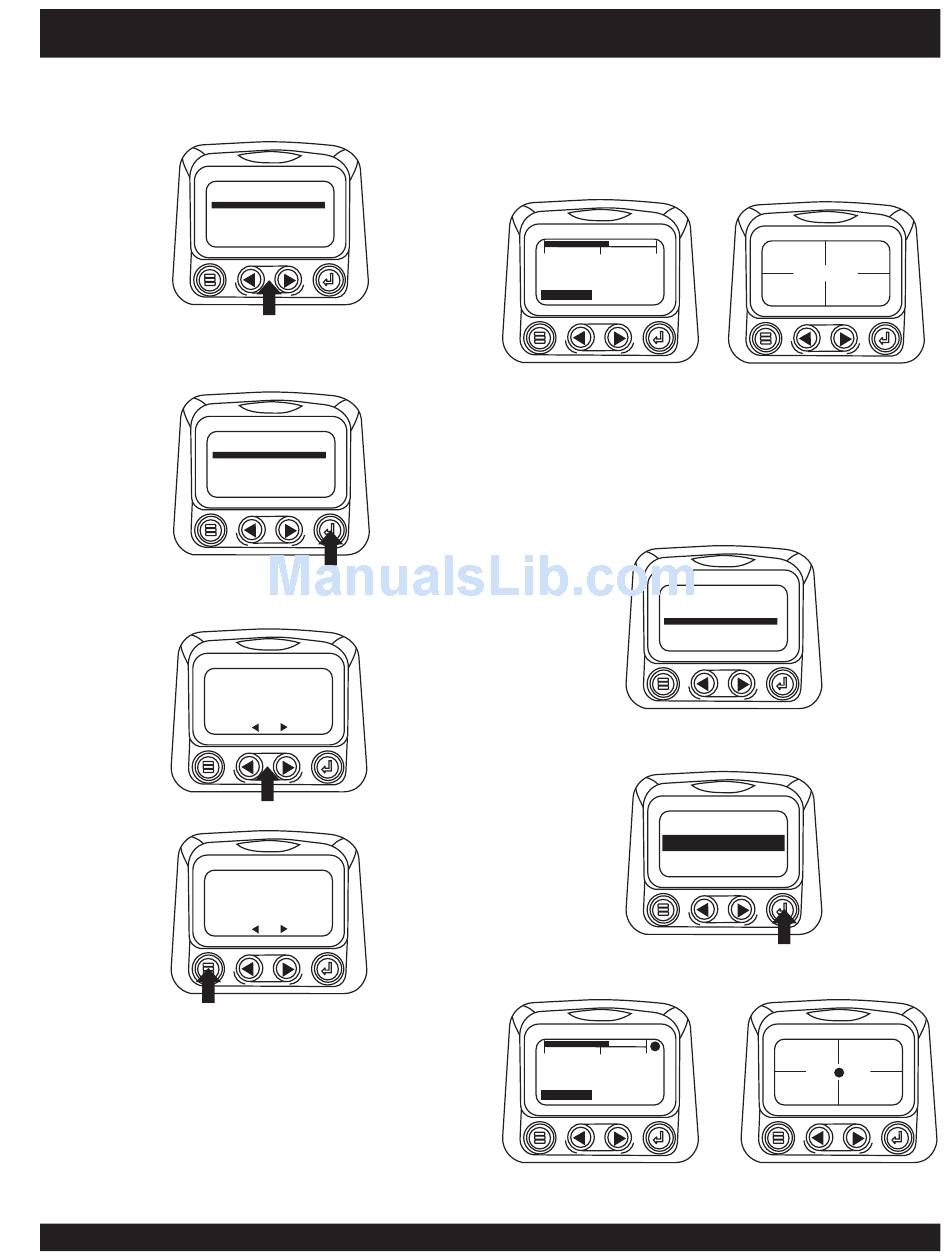

2. The main menu will pop up on the display. Use the "Arrow
Buttons" to scroll through the menu until the "Engine
Configuration" menu item has been highlighted.
GO TO 1-UP DISPLAY
STORED CODES
ENGINE CONFG
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
ADJUST BACKLIGHT
3. Once the "Engine Configuration" menu item has been
highlighted touch the "Enter Button" to view the engine
configuration data.
GO TO 1-UP DISPLAY
STORED CODES
ENGINE CONFG
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
ADJUST BACKLIGHT
4. Use the "Arrow Buttons" to scroll through the engine
configuration data.
5. Touch the "Menu Button" to return to the main menu.
6. Touch the "Menu Button" to exit the Main menu and
return to the engine parameter display.
DCA-220SSJ/SSJU — OPERATION AND PARTS MANUAL — REV. #0 (02/04/14) — PAGE 25
DCA-220SSJ/SSJU — DIAGNOSTIC DISPLAY
ENGINE SPEED PT 1
1800 RPM
MORE
ENGINE SPEED PT 1
1800 RPM
MORE
FAULTS AND WARNINGS
Auxiliary Gage Fault
1. During normal operation the single or four parameter
screen will be displayed.
0 1500 3000
1800 RPM
ENG RPM COOL TEMP
2. The PVA Series of auxiliary gages can be attached to
the PowerView. These auxiliary gages communicate with
the Modbus master PowerView via a daisy-chained RS-
485 port. If at any time during system initialization or
normal operation an auxiliary gage should fail, the single
or four parameter screen will be replaced with the "MLink
Gage Fault" message.
1 of x
ENGINE OIL PRESSURE
GAGE NOT RESPONDING
3. To acknowledge and "Hide" the fault and return to the
single or four parameter display, touch the "Enter Button".
1 of x
ENGINE OIL PRESSURE
GAGE NOT RESPONDING
4. The display will return to the single or four parameter
screen.
!
0 1500 3000
1800 RPM
ENG RPM
COOL TEMP!
1000 RPM
98%
ENG RPM
LOAD RPM
14.2 57 PSI
BATT VOLT OIL PRES
HIDE
HIDE
98% 1000 RPM
LOAD RPM ENG RPM
!
14.2 57 PSI
BATT VOLT OIL PRES
!
