MULTIQUIP Power WHISPERWATT DCA220SSJ Operation And Parts Manual page 26

!
Indicates Auxiliary Gage Fault
!
Indicates Fault Warning
!
Indicates Derate or Shutdown Condition Fault
5. Touching the "Enter Button" will redisplay the hidden
fault. Touching the "Enter Button" once again will hide
the fault and return the screen to the single or four
parameter display. NOTE: The fault can only be cleared
by correcting the cause of the fault condition.
1 of x
ENGINE OIL PRESSURE
GAGE NOT RESPONDING
Active Fault Codes

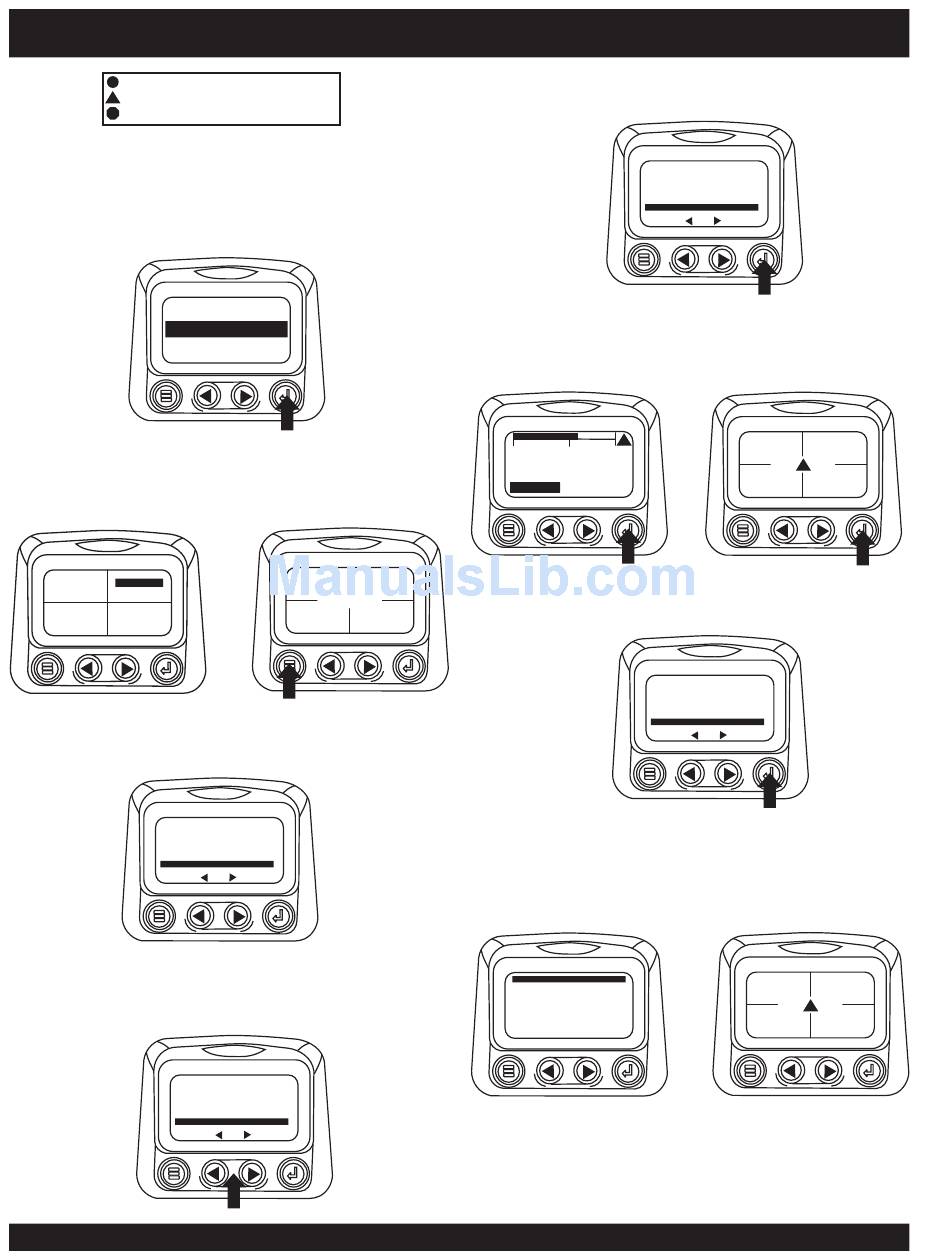

1. During normal operation the single or four parameter
screen will be displayed.
1000 RPM
125°F
COOL TEMP ENG RPM
143°F
57 PSI
OIL TEMP
OIL PRES
2. When the PowerView receives a fault code from an
engine control unit the single or four parameter screen
will be replaced with the "Active Fault Codes" message.
1 of x
SPN110 FMI10
HIGH COOLANT TEMP
3. If the word "MORE" appears above the "Arrow Buttons",
there are more active fault codes that may be viewed.
Use the "Arrow Buttons" to scroll to the next "Active
Fault Code".
1 of x
SPN110 FMI10
HIGH COOLANT TEMP
PAGE 26 — DCA-220SSJ/SSJU — OPERATION AND PARTS MANUAL — REV. #0 (02/04/14)
DCA-220SSJ/SSJU — DIAGNOSTIC DISPLAY
HIDE
98% 1000 RPM
ENG RPM
LOAD RPM
14.2 57 PSI
BATT VOLT OIL PRES
WARNING
MORE
HIDE
MORE
HIDE
4. To acknowledge and "Hide" the fault and return to the
single or four parameter display touch the "Enter Button".
1 of x
SPN110 FMI10
HIGH COOLANT TEMP
5. The display will return to the single or four parameter
display but the display will contain the "Active Fault"
warning icon. Touching the "Enter Button" will redisplay
the hidden fault.
!
0
1500 3000
1800 RPM
ENG RPM
TEMP!
COOL
6. Touching the "Enter Button" once again will hide the
fault and return the screen to the single or four parameter
display.
7. The Single or Four parameter screen will display the
fault icon until the fault condition is corrected. NOTE:
Ignoring active fault codes could result in severe engine
damage.
