- Page 1 Quick Reference Guide...
-
Page 2: About This Guide
Guide and the DMX values. This Quick Reference Guide DOES NOT replace the product’s User Manual, which you can download from the CHAUVET® Web site (www.chauvetpro.com). Disclaimer You must read ALL the disclaimers and Safety Notes in this document, as well as those in the product’s User Manual before installing,... -
Page 3: Additional Features
Q-Spot™ 560 LED QRG Features 13 or 17-channel DMX-512 LED moving yoke Pan: 540 / tilt: 270 Color wheel: 7 colors + white Split colors Rainbow color spin at variable speeds Gobo wheel 1: Gobo shake 7 gobos + open Gobo wheel spin at variable speeds Gobo wheel 2: Indexed, rotating gobo wheel with gobo shake... -
Page 4: Rear View

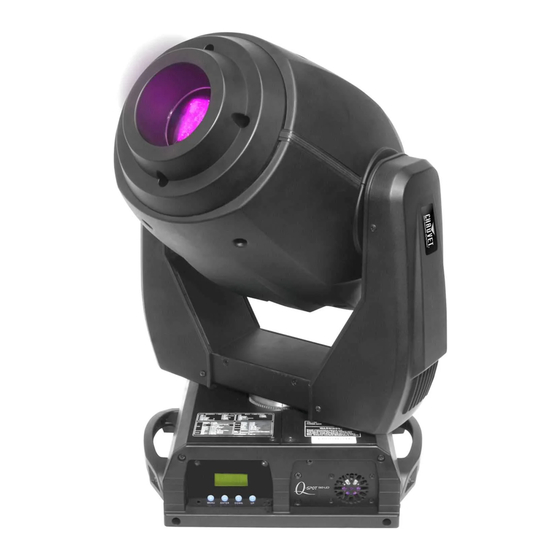

Q-Spot™ 560 LED QRG Product The Q-Spot™ 560 LED is a high power moving yoke product equipped with three (3) 60-watt white LEDs. It includes a color wheel with seven Description slots plus white. The Q-Spot™ 560 LED also comes with two gobo wheels. One gobo wheel has six rotating slot-n-lock gobos plus open, and the other has seven fixed gobos plus open. - Page 5 Q-Spot™ 560 LED QRG This product has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Power Fuse Disconnect this product/product from the power outlet. Replacement Wedge the tip of a flat head screwdriver into the slot of the fuse holder and pry the safety cap out of the housing, which will pull the installed fuse.
-
Page 6: Floor Mounting
Q-Spot™ 560 LED QRG Mounting Before mounting this product, read the Safety Notes at the beginning of this guide and on page 2 of the product’s User Manual. Then, follow the mounting procedure indicated in the Setup chapter of the User Manual. Safety Cable Mounting Brackets Product... -
Page 7: Gobo Replacement
Q-Spot™ 560 LED QRG Gobo Turn the product off and disconnect it from the power outlet. Open the head cover by loosening the four fastening screws at the sides Replacement of the top cover. Separate the gobo plate away from the gobo wheel by pushing it toward the front of the moving head (direction 1 in the diagram). -
Page 8: Start Address
Q-Spot™ 560 LED QRG Programming For details on how to program this product, please refer to the product’s User Manual. Control Panel Button Function Description <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently <ENTER>... -
Page 9: Menu Options
Q-Spot™ 560 LED QRG Menu Options Main Level Programming Levels Description Intro Address 001~512 Selects a starting DMX address Reset Resets the product’s custom settings Selects DMX512-A running mode DMX512 Auto 1 Selects the first automatic program Selects the second automatic program Auto 2 Selects the first sound activated program Sound 1... - Page 10 Q-Spot™ 560 LED QRG Continued from previous page Main Level Programming Levels Description Special Blackd Activates the move-in black delay (3 s) The DMX controller can reset the fixture Reset The control panel can reset the fixture System Fanwait Forces the fan to stop during a blackout Save the last look when DMX is Lost Save DMXerror...
-
Page 11: Dmx Values
Q-Spot™ 560 LED QRG DMX Values Basic Channel Function Value Percent/Setting 000 255 0~540° Tilt 000 255 0~270° 000 009 No Function 010 019 020 029 Green 030 039 Yellow 040 049 Blue 050 ... - Page 12 Q-Spot™ 560 LED QRG Continued from previous page Basic Channel Function Value Percent/Setting (cont.) 360° Indexing 000 060 Clockwise Rotation ~ Slow to Fast Gobo Wheel 2 061 150 No Function Rotation 151 165 Counter-Clockwise Rotation ~ Slow to 166 ...
- Page 13 Q-Spot™ 560 LED QRG Continued from previous page Basic Channel Function Value Percent/Setting (cont.) 000 019 Dim setting as set in product 020 039 Pan/tilt black activation 040 059 Pan/tilt black deactivation 060 139 No Function 140 ...
- Page 14 Q-Spot™ 560 LED QRG Advanced Channel Function Value Percent/Setting 000 255 0~540° Pan Fine 000 255 Fine movement control Tilt 000 255 0~270° TiltFine 000 255 Fine movement control Pan/Tilt Speed 000 255 Fast~Slow 000 009 No Function 010 ...
- Page 15 Q-Spot™ 560 LED QRG Continued from previous page Advanced Channel Function Value Percent/Setting (cont.) 360° Indexing 000 060 Clockwise Rotation ~ Slow to Fast Gobo Wheel 2 061 150 No Function Rotation 151 165 Counter-Clockwise Rotation ~ Slow to 166 ...
- Page 16 Follow their instructions to request support or to return a product. Visit our Web site for contact details. Q-Spot™ 560 LED QRG – Rev. 03 © Copyright 2011 CHAUVET® All rights reserved Printed in the P. R. C. Page 16 of 16...
