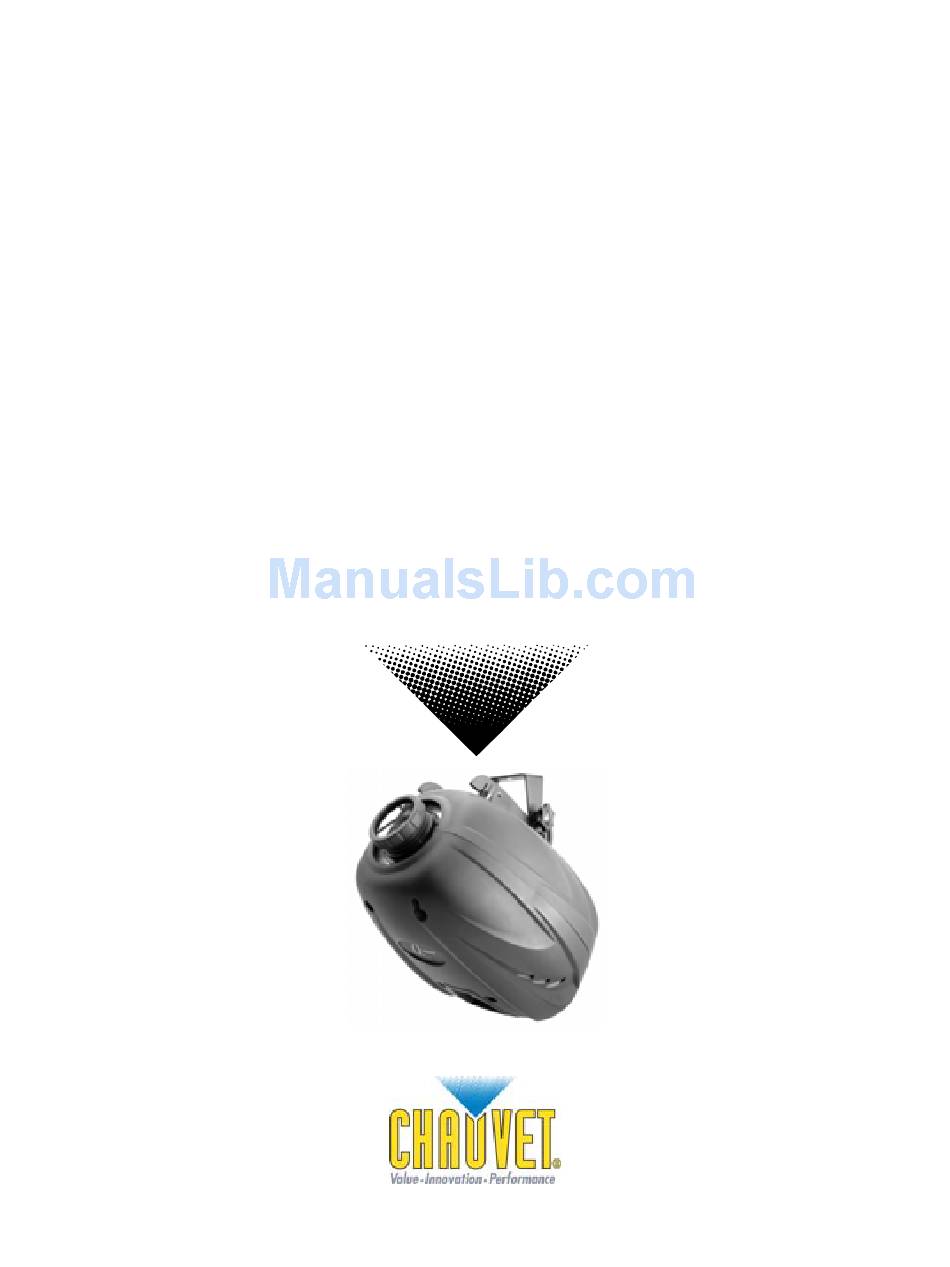

- Page 1 Q-Dream Q-Dream™ DMX Intelligent Effect Light USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2007-03-21/16:34...
-
Page 2: Table Of Contents
RIMER Fixture Linking ... 13 DMX C ... 14 HANNEL ALUES ... 15 AINTENANCE ... 15 ETURNS ROCEDURE ... 15 LAIMS ... 16 ENERAL ROUBLESHOOTING ... 17 ECHNICAL PECIFICATIONS ... 17 ECHNICAL UPPORT Q-Dream User Manual ) ... 9 2007-03-21/16:34... -
Page 3: Before You Begin
EFORE EGIN What is included Q-Dream™ with HTI150 bulb Power cord with plug Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Introduction
Display auto on/off • Built-in automated programs (with master/slave) • Built-in sound activated programs (with master/slave) • Thermal switch • Fan cooled DMX Channel Summary HANNEL Color Wheel Gobo Wheel Gobo Rotation Prism Rotation Built in Programs Q-Dream User Manual UNCTION 2007-03-21/16:34... -
Page 5: Product Overview
Steps backward through menu Down functions Steps forward through menu functions Confirms selected menu Enter function Q-Dream User Manual SEGMENT BUTTONS I/O PANEL OVERVIEW I/O P ANEL DMX Out & In Power AC input IEC 60320 C14 and fuse holder Introduction 1. -
Page 6: Setup
To ensure the longest and most efficient use of the lamp always wait between 10 and 15 minutes before re-applying power after a shutdown. Failure to do so could result in premature aging of the lamp and failure to the electronics that drive it. Q-Dream User Manual 2007-03-21/16:34... -
Page 7: Power
1. Press both tips of the gobo tension ring together and remove from aperture. 2. Push the gobo with your finger from the back side following the same direction that the tension ring was removed. Q-Dream User Manual NTERNATIONAL Live... -
Page 8: Mounting
1. Align the clamp screw with the center hole on the yoke and tighten. 2. Verify the structure can hold 10 times the weight of all to-be installed fixtures. 3. Adjust the angle on the yoke arm as necessary. Q-Dream User Manual 1. Clamp 2. Fixture Yoke 3. -
Page 9: Operating Instructions
4. Press the [Enter] button to store your selection. The display will read “PASS” to confirm your selection Q-Dream User Manual [Enter] Confirms selection [Choose] Access to main menu [Up] Toggle menu items in a forward direction... -
Page 10: Operating Modes
In Master/Slave mode you can choose whether the fixture will run in a sound-active state where the movement is triggered by sound or in auto-run where the speed is pre-programmed. OTES Sound Activated Auto-run Q-Dream User Manual OTES Master mode (one Master only) Sound activated Channel address... -
Page 11: Dmx Mode
1. Press the [Choose] button until the display reads “ANNN” where N represents a number from 0 to 2. Press the [Up] and [Down] buttons to increase or decrease values until the desired value is achieved. 3. Press the [Enter] button to activate selection. Q-Dream User Manual Daisy Chain Connection Controller not required for Master/Slave operation... -
Page 12: Segment Display Configurations
P 3 - F ixt ure R ese t (a ll mot or s) This function will re-initialize the fixture by returning all motors to its startup positions or otherwise known as (home position). UNCTION Q-Dream User Manual OTES Invert display Return to normal... -
Page 13: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 14: Dmx Channel Values
DMX Channel Values EFAULT ALUE Q-Dream User Manual UNCTION Color None Indexed color change Color scroll: Fast > Slow (clockwise) Stop Color scroll: Slow > Fast (counter-clockwise) Gobo Blackout Gobo 1 (flower) Gobo 2 (bubble) Gobo 3 (broken glass) Gobo 4 (water) Gobo 5 (leaves) Bounce™... -
Page 15: Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 16: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All CHAUVET lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Unit wobbles when... -
Page 17: Technical Specifications
Data output ... locking 3-pin XLR female socket Data pin configuration ...pin 1 shield, pin 2 (-), pin 3 (+) Protocols... DMX-512 USITT DMX Channels ...5 ORDERING INFORMATION Q-Dream™ DMX Intelligent Effect Light... Q-Dream Fuse 5A ...P170FUSE005 Technical Support Address: Support (Email):...
