Summary of Contents for Chauvet Q-Beam 260-LED

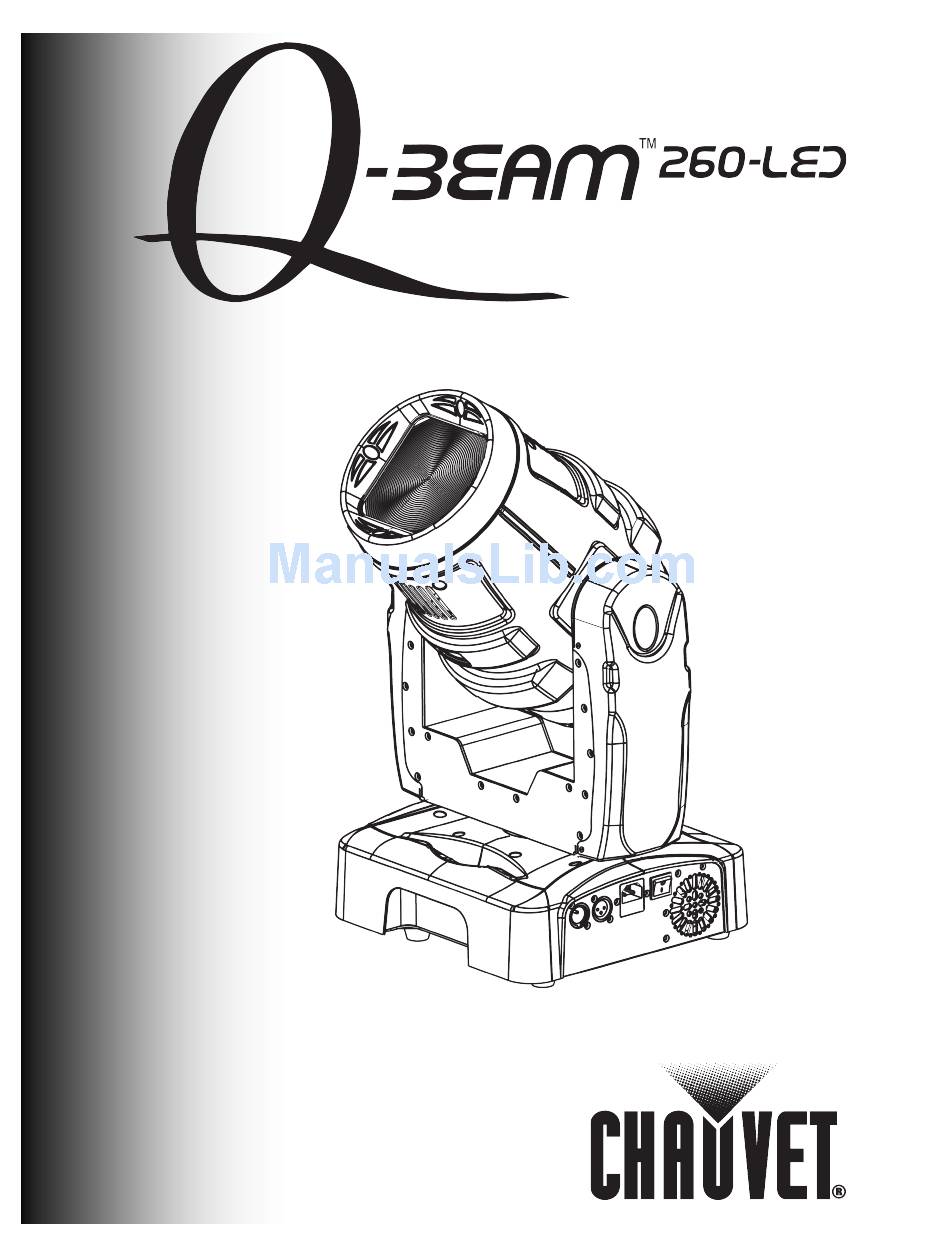

- Page 1 User Manual...
- Page 2 Copyright Notice CHAUVET® owns the content of this user manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2010 CHAUVET®. All rights reserved Electronically published by CHAUVET®...
-
Page 3: Table Of Contents
DMX Values ..........................14 BASIC ..............................14 ADVANCED............................. 15 5. Technical Information ....................16 General Maintenance ........................16 Photometrics ..........................16 Troubleshooting Guide ......................... 17 Returns Procedure ........................18 Claims ............................18 Contact Us ........................... 18 Q-Beam 260-LED User Manual Rev. 01d... - Page 4 Table of Contents Technical Specifications........................ 19 Q-Beam 260-LED User Manual Rev. 01d...
-
Page 5: Before You Begin
Failure to comply with this information may prevent the fixture from functioning correctly. This icon indicates useful, although non-critical information. The term “DMX” used throughout this document refers to the USITT DMX512-A transmission protocol. Q-Beam 260-LED User Manual Rev. 01d... -
Page 6: Safety Notes
· In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, please contact CHAUVET® Technical Support. Expected LED LEDs gradually decline in brightness over time, mostly because of heat. Packaged in... -
Page 7: Introduction
Built-in automated programs · Built-in sound activated programs · Additional Features High-power 60 W LED · User-selectable pan/tilt ranges · Automatic pan/tilt correction · Reset to factory settings option · User-selectable basic or advanced operating modes Q-Beam 260-LED User Manual Rev. 01d... -
Page 8: Dmx Channel Summary
Rotating Gobo Wheel Gobo Rotation Fixed Prism Dimmer Strobe Control DMX Channel Function Advanced Pan Fine Tilt Tilt Fine Pan / Tilt Speed Color Wheel Rotating Gobo Wheel Gobo Rotation Fixed Prism Dimmer Strobe Control Q-Beam 260-LED User Manual Rev. 01d... -
Page 9: Product Overview
Introduction Product Overview Control Panel Power In (IEC) Fuse Holder DMX Out (3-pin XLR) Power Switch DMX In (3-pin XLR) Q-Beam 260-LED User Manual Rev. 01d... -
Page 10: Product Dimensions
Introduction Product Dimensions Q-Beam 260-LED User Manual Rev. 01d... -
Page 11: Setup
3. Setup AC Power The Q-Beam 260-LED has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Make sure that you are connecting this product to the proper voltage, as per the specifications in this guide, the product’s user manual, or on the product’s sticker. -
Page 12: Gobo Replacement
5) Reverse steps 1 and 2. DMX Linking You may link any Q-Beam 260-LED fixture to a DMX controller using a standard DMX serial connection. If using other DMX compatible fixtures with a Q-Beam 260-LED fixture, it is possible to control them individually with a single DMX controller. -
Page 13: Mounting
Procedure The Q-Beam 260-LED comes with two omega brackets to which you can attach a couple of “C” or “O” clamps. You must supply your own “C” or “O” clamps and make sure that they are capable of supporting the weight of this fixture. -
Page 14: Operation
You can set the Q-Beam 260-LED start address in the 001~512 DMX range. This allows Control Options for the control of up to 42 fixtures in the 12-channel Advanced personality. -
Page 15: Keylock
Time = 0 Use = Yes (This step creates a loop) Step 5: Time = 0 Use = No (Unused steps) Step 255 Time = 0 Use = No Continues on the next page Q-Beam 260-LED User Manual Rev. 01d -11-... -
Page 16: Software Version
NO to reset the fixture only from the control panel. System Default 1) Go to MENU > DEFAULT > DEFAULT. a) Select YES to default the fixture to its original factory settings. End of Programming -12- Q-Beam 260-LED User Manual Rev. 01d... -
Page 17: Menu Map
Operation Menu Map Q-Beam 260-LED User Manual Rev. 01d -13-... -
Page 18: Dmx Values
Test (3 s delay) 170 ó 179 Custom 180 ó 189 Sound 1(3 s delay) 190 ó 199 Sound 2(3 s delay) 200 ó 219 Reset (3 s delay) 220 ó 255 No function -14- Q-Beam 260-LED User Manual Rev. 01d... -
Page 19: Advanced
Test (3 s delay) 170 ó 179 Custom 180 ó 189 Sound 1(3 s delay) 190 ó 199 Sound 2(3 s delay) 200 ó 219 Reset (3 s delay) 220 ó 255 No function Q-Beam 260-LED User Manual Rev. 01d -15-... -
Page 20: Technical Information
Dust build up reduces light output performance and can cause overheating. This can lead to reduced light source life and increased mechanical wear. CHAUVET® recommends cleaning the fixture’s external optics with a soft cloth using normal glass cleaning fluid. To clean a fixture, follow the recommendations below: ·... -
Page 21: Troubleshooting Guide
· Keep DMX cables separated from power · Interference from AC wires cables or fluorescent/black lights · · If you still experience technical problems after trying the above solutions, contact CHAUVET® Technical Support. Q-Beam 260-LED User Manual Rev. 01d -17-... -
Page 22: Returns Procedure
The user must clearly label the package with a Return Merchandise Authorization Number (RMA #). CHAUVET® will refuse any product returned without an RMA #. DO NOT write the RMA # directly on the box. Instead, write it on a properly affixed label. -
Page 23: Technical Specifications
25.95 mm 19 mm 1.1 mm max. Thermal Maximum External Temp. Cooling System 104° F (40° C) I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 9 and 12 Ordering Q-Beam 260-LED QBEAM260LED Q-Beam 260-LED User Manual Rev. 01d -19-... - Page 24 CHAUVET® 5200 NW 108th Avenue Sunrise, FL 33351 (USA) (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com Q-Beam 260-LED User Manual Rev. 01d December 2010...
